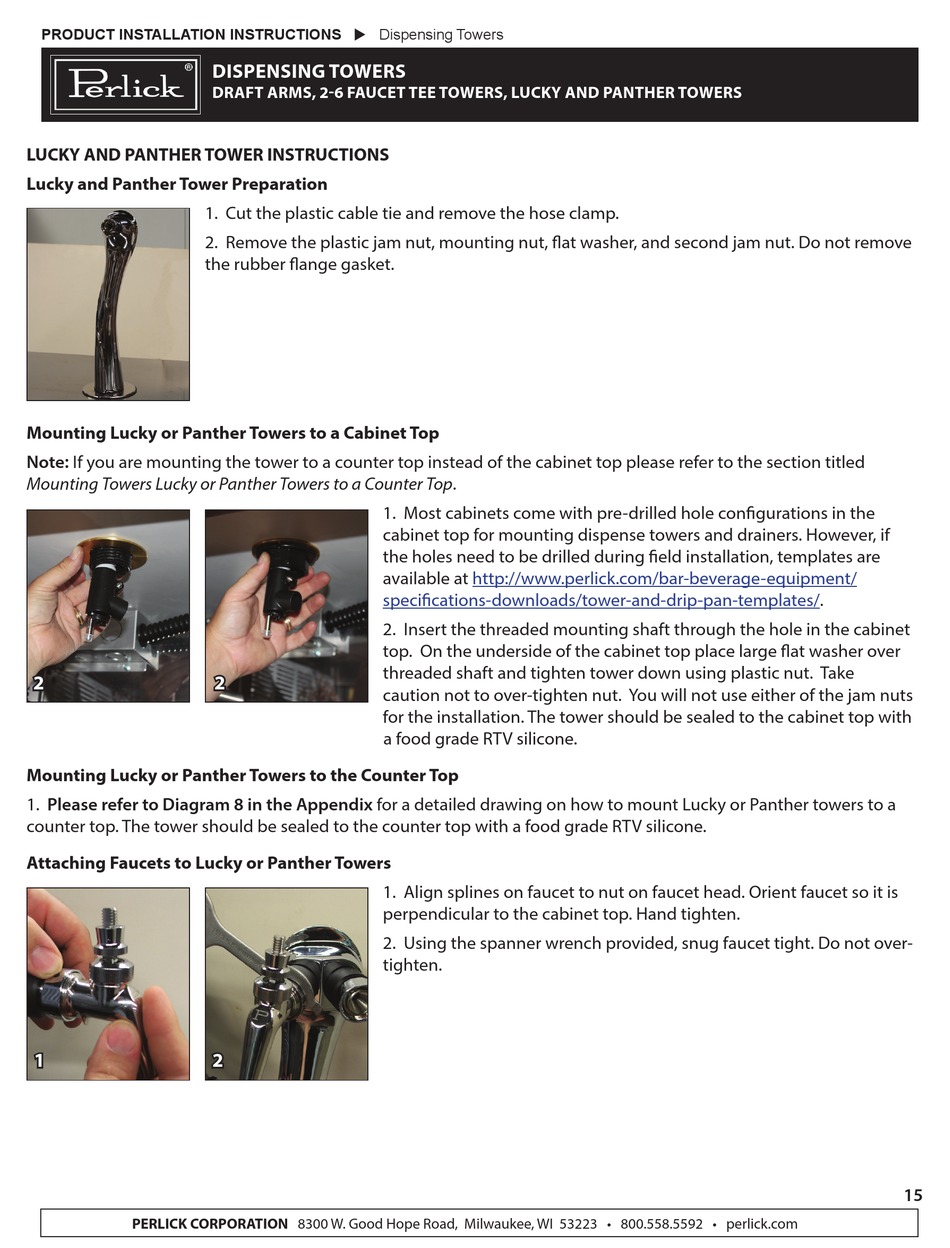

LUCKY AND PANTHER TOWER INSTRUCTIONS

Lucky and Panther Tower Preparation

1. Cut the plastic cable tie and remove the hose clamp.
2. Remove the plastic jam nut, mounting nut, flat washer, and second jam nut. Do not remove
the rubber flange gasket.

Mounting Lucky or Panther Towers to a Cabinet Top

Note: If you are mounting the tower to a counter top instead of the cabinet top please refer to the section titled
Mounting Towers Lucky or Panther Towers to a Counter Top.
2
Mounting Lucky or Panther Towers to the Counter Top
1. Please refer to Diagram 8 in the Appendix for a detailed drawing on how to mount Lucky or Panther towers to a
counter top. The tower should be sealed to the counter top with a food grade RTV silicone.

Attaching Faucets to Lucky or Panther Towers

1
PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
DISPENSING TOWERS
DRAFT ARMS, 2-6 FAUCET TEE TOWERS, LUCKY AND PANTHER TOWERS
1. Most cabinets come with pre-drilled hole configurations in the
cabinet top for mounting dispense towers and drainers. However, if
the holes need to be drilled during field installation, templates are
available at
specifications-downloads/tower-and-drip-pan-templates/.
2. Insert the threaded mounting shaft through the hole in the cabinet
top. On the underside of the cabinet top place large flat washer over
threaded shaft and tighten tower down using plastic nut. Take
2
caution not to over-tighten nut. You will not use either of the jam nuts
for the installation. The tower should be sealed to the cabinet top with
a food grade RTV silicone.
1. Align splines on faucet to nut on faucet head. Orient faucet so it is
perpendicular to the cabinet top. Hand tighten.
2. Using the spanner wrench provided, snug faucet tight. Do not over-
tighten.
2
