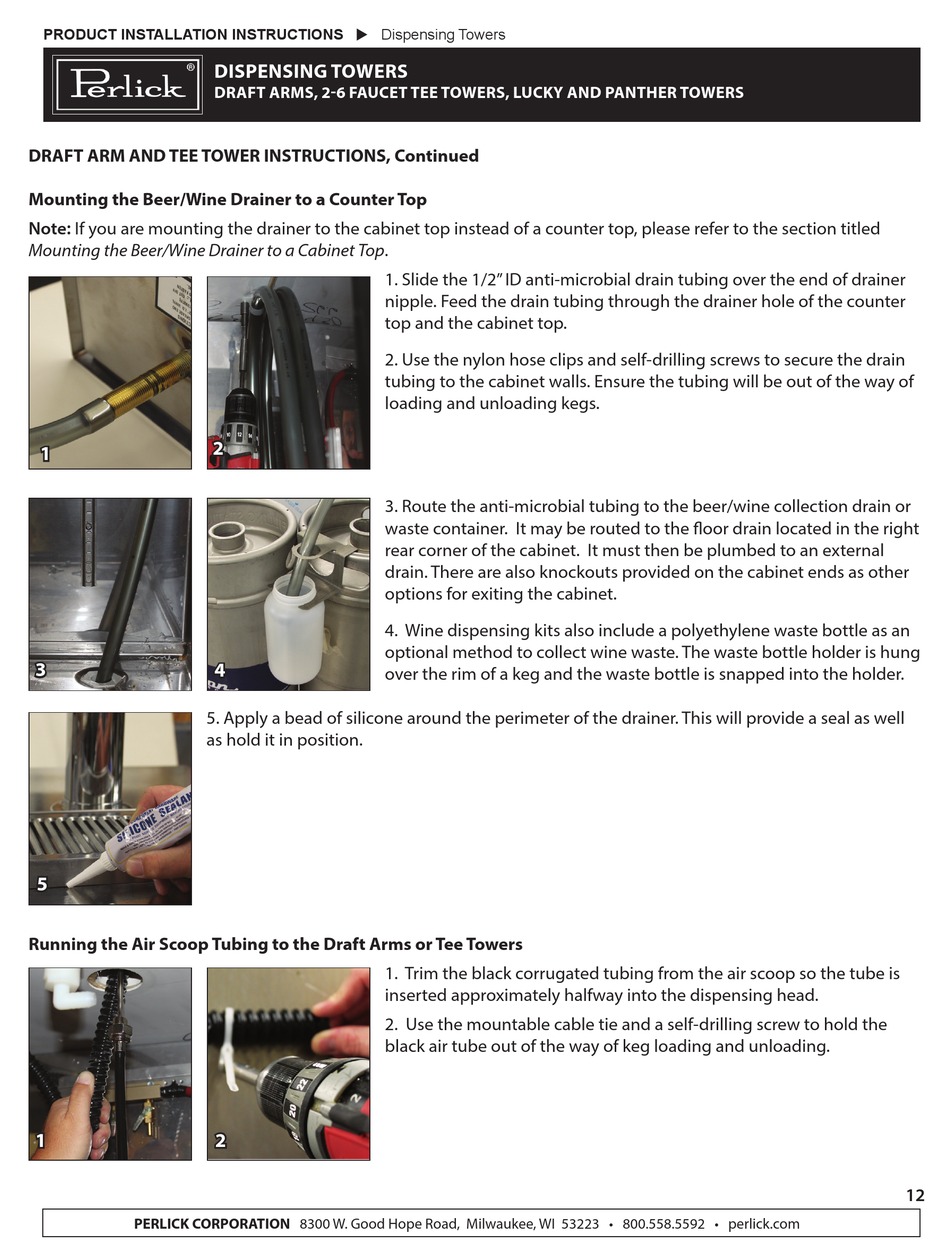

PRODUCT INSTALLATION INSTRUCTIONS  Dispensing Towers
DRAFT ARM AND TEE TOWER INSTRUCTIONS, Continued

Mounting the Beer/Wine Drainer to a Counter Top

Note: If you are mounting the drainer to the cabinet top instead of a counter top, please refer to the section titled
Mounting the Beer/Wine Drainer to a Cabinet Top.
1
3
5. Apply a bead of silicone around the perimeter of the drainer. This will provide a seal as well
as hold it in position.
5

Running the Air Scoop Tubing to the Draft Arms or Tee Towers

1
PERLICK CORPORATION 8300 W. Good Hope Road, Milwaukee, WI 53223 • 800.558.5592 • perlick.com
DISPENSING TOWERS
DRAFT ARMS, 2-6 FAUCET TEE TOWERS, LUCKY AND PANTHER TOWERS
1. Slide the 1/2" ID anti-microbial drain tubing over the end of drainer
nipple. Feed the drain tubing through the drainer hole of the counter
top and the cabinet top.
2. Use the nylon hose clips and self-drilling screws to secure the drain
tubing to the cabinet walls. Ensure the tubing will be out of the way of
loading and unloading kegs.
2
3. Route the anti-microbial tubing to the beer/wine collection drain or
waste container. It may be routed to the floor drain located in the right
rear corner of the cabinet. It must then be plumbed to an external
drain. There are also knockouts provided on the cabinet ends as other
options for exiting the cabinet.
4. Wine dispensing kits also include a polyethylene waste bottle as an
optional method to collect wine waste. The waste bottle holder is hung
4
over the rim of a keg and the waste bottle is snapped into the holder.
1. Trim the black corrugated tubing from the air scoop so the tube is
inserted approximately halfway into the dispensing head.
2. Use the mountable cable tie and a self-drilling screw to hold the
black air tube out of the way of keg loading and unloading.
2
12
