Installing a New Radio

A radio providing fi eld-area network capability for SCADA applications, if specifi ed, is
furnished factory-installed in the communication gateway. Alternately, the customer
may install a user-furnished radio. See Figure 4.
Follow these steps to install a radio in the communication gateway:
STEP 1.
Disconnect the ac power cable connected to the bottom of the gateway and
then disconnect the ac-line fuse located at the lower right corner of the gateway
box.
Install the radio on the mounting plate using user-furnished hardware.
STEP 2.
The wiring harness on most radios includes a power plug and data-port
STEP 3.
connectors (Ethernet or RS-232 serial). Insert the power plug in its receptacle.
As applicable, connect the Ethernet connector to Port 2 of the green gateway
controller or insert the serial connector in its receptacle on the gateway
controller.
Ethernet
Port 2

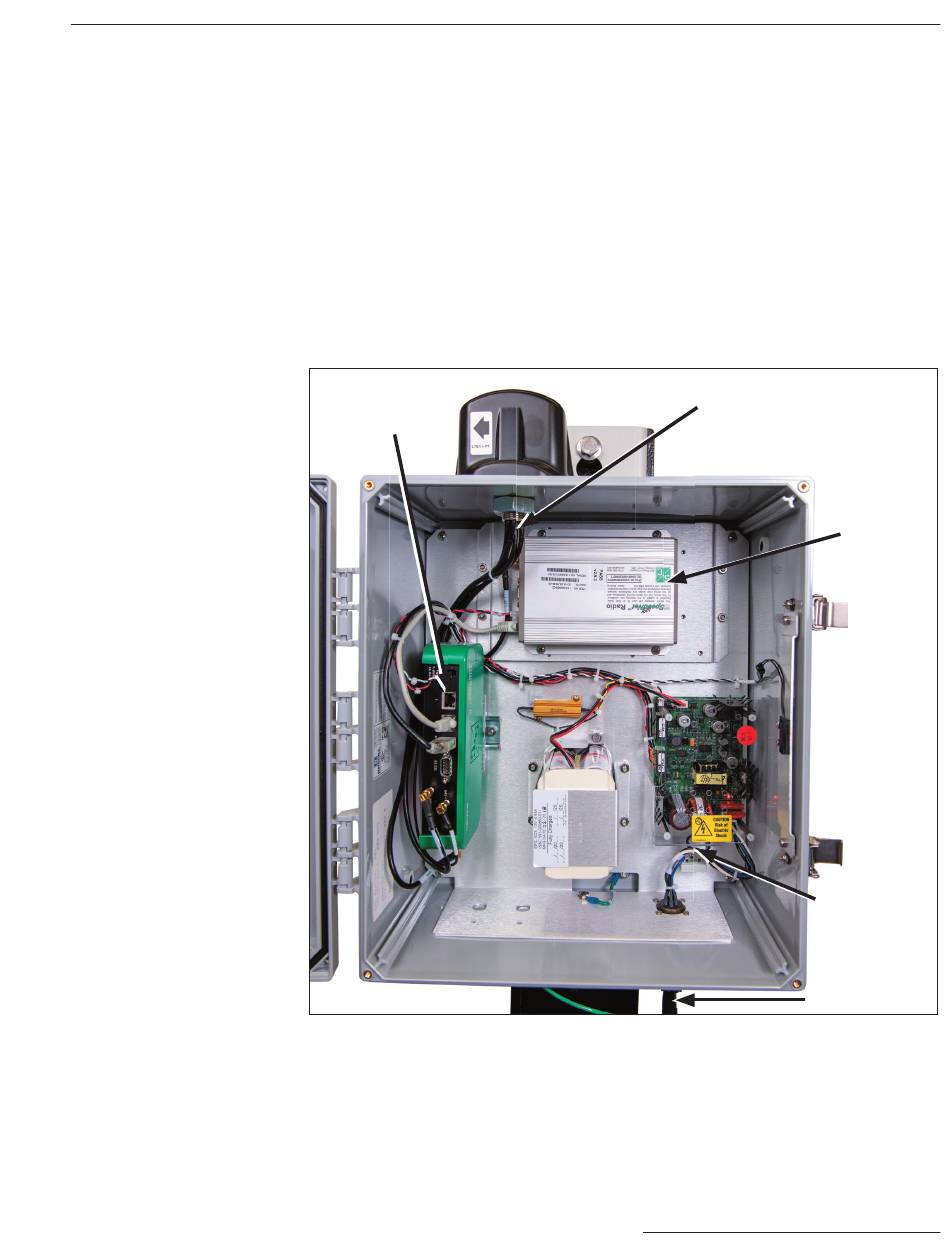

Figure 4. Installing a radio.

Installing and Replacing a Radio

Antenna connector
S&C Instruction Sheet 461-509
Radio
mounting
plate
Ac line fuse
Ac power cable
9
