To install the cFP-AO-200, refer to Figure 2 and complete the
following steps:
1. Align the captive screws on the cFP-AO-200 with the holes on
the backplane. The alignment keys on the cFP-AO-200 prevent
backward insertion.
2. Press firmly to seat the cFP-AO-200 on the backplane.
3. Using a number 2 Phillips screwdriver with a shank of at least
64 mm (2.5 in.) length, tighten the captive screws to 1.1 N ⋅ m
(10 lb ⋅ in.) of torque. The nylon coating on the screws prevents
them from loosening.
4
3
1 cFP Backplane
2 cFP Controller Module
© National Instruments Corp.
2
4
3 cFP-AO-200
4 Captive Screws

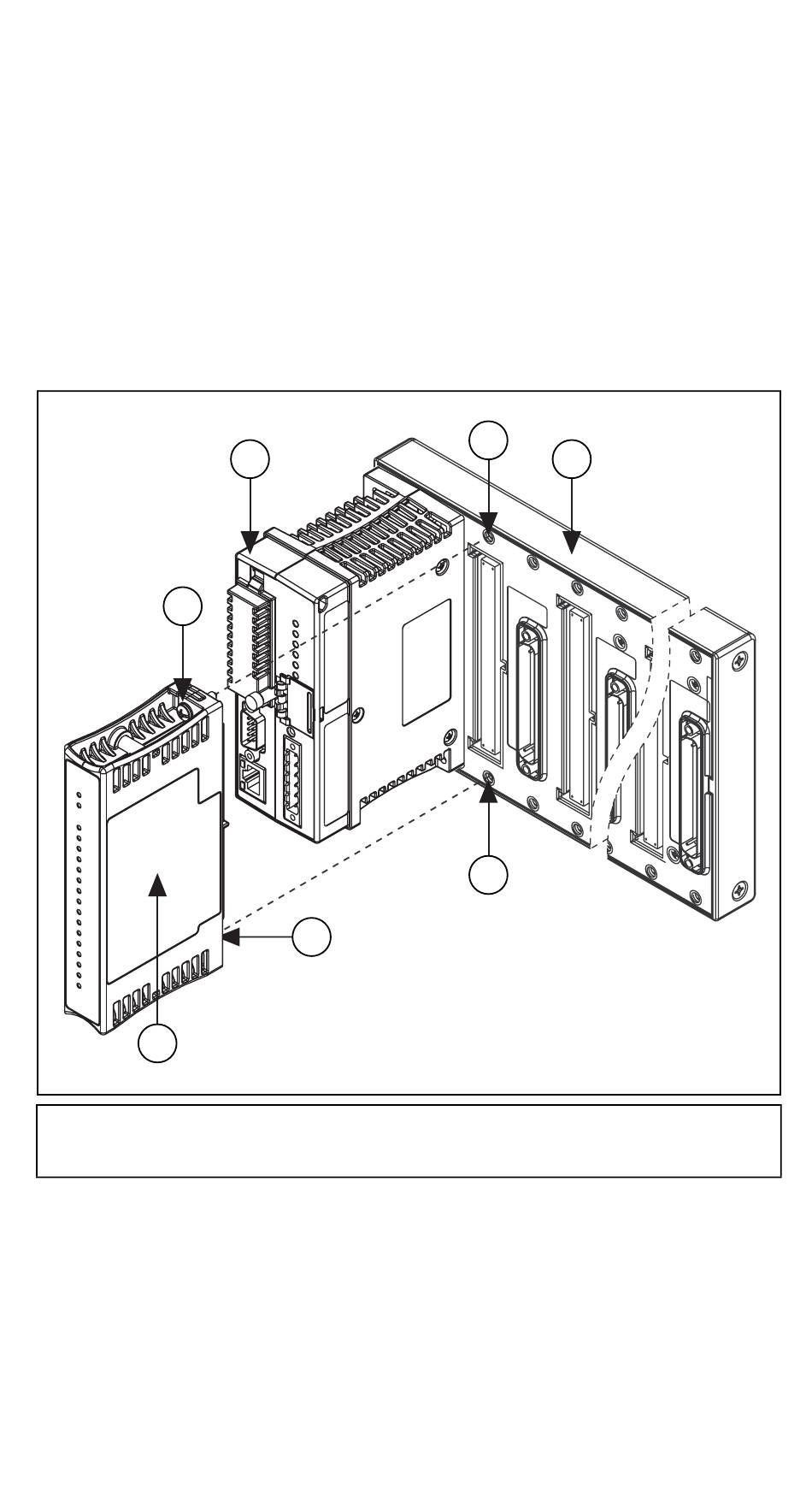

Figure 2. Installing the cFP-AO-200
5
5
3
1
5 Screw Holes
FP-AO-200 and cFP-AO-200
