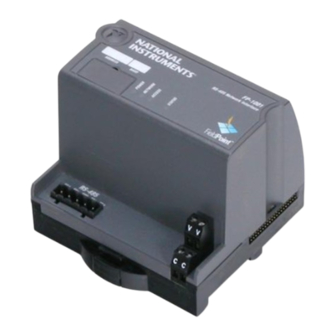

FP-1001
FieldPoint RS-485 Network Module
Highlights
•
Isolated RS-485 interface to host computer or to FP-1000
repeater port
•
Simple ASCII protocol is compatible with industry standard
Optomux protocol
•
Built-in high efficiency power supply powers I/O modules
•
Runs on 11 to 30 VDC power
•
-40° to +70° C operation
Overview
The FP-1001 is a network module for the FieldPoint system. It
provides connection to an RS-485 network using a simple ASCII
protocol.
This document provides a quick guide to installing and configuring
the FP-1001 network module. For more detailed information on
using the network module, refer to the FP-1000/1001 user manual.
For information on the ASCII protocol used by the network
module, refer to the FP-1000/1001 programmer reference manual.
DIN Rail Mounting
NOTE: Terminal bases must be connected to the network
module before applying power to the module. Do not connect
or disconnect terminal bases while power is applied to the
network module.
FieldPoint ™ is a trademark of National Instruments Corporation. Product and company names are
trademarks or trade names of their respective companies.
321698A-01
© Copyright 1997 National Instruments Corp. All rights reserved.
July 1997
