Installing the FP-AO-200
The FP-AO-200 mounts on a FieldPoint terminal base (FP-TB-x).
Hot plug-and-play enables you to install the FP-AO-200 onto a
powered terminal base without disturbing the operation of other
modules or terminal bases. The FP-AO-200 receives operating
power from the terminal base. Current loop power is externally
supplied.
To install the FP-AO-200, refer to Figure 1 and complete the
following steps:
1. Slide the terminal base key to either position X (used for any
module) or position 2 (used for the FP-AO-200 module).
2. Align the FP-AO-200 alignment slots with the guide rails on
the terminal base.
3. Press firmly to seat the FP-AO-200 in the terminal base. The
terminal base latch locks the FP-AO-200 into place when it is
firmly seated.
4. Connect a current loop supply for the outputs to the V and C
terminals of the terminal base.
I/O Module
Installing the cFP-AO-200
The cFP-AO-200 mounts on a Compact FieldPoint backplane
(cFP-BP-x). Hot plug-and-play enables you to install the
cFP-AO-200 onto a powered backplane without disturbing the
operation of other modules or connector blocks. The cFP-AO-200
receives operating power from the backplane.
FP-AO-200 and cFP-AO-200
Alignment

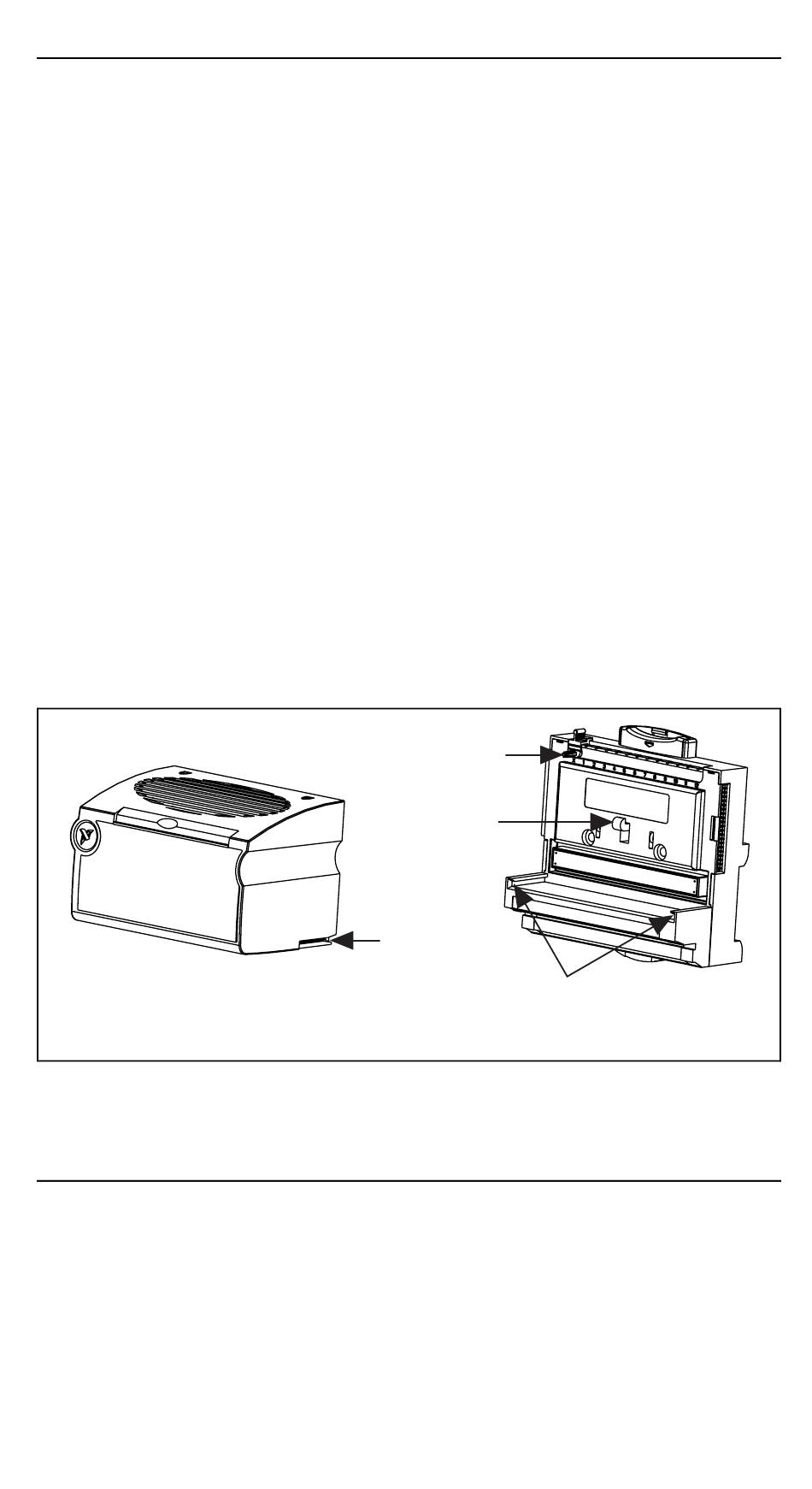

Figure 1. Installing the FP-AO-200
Key
Latch
Slot
Guide Rails
2
Terminal Base
