Page 1

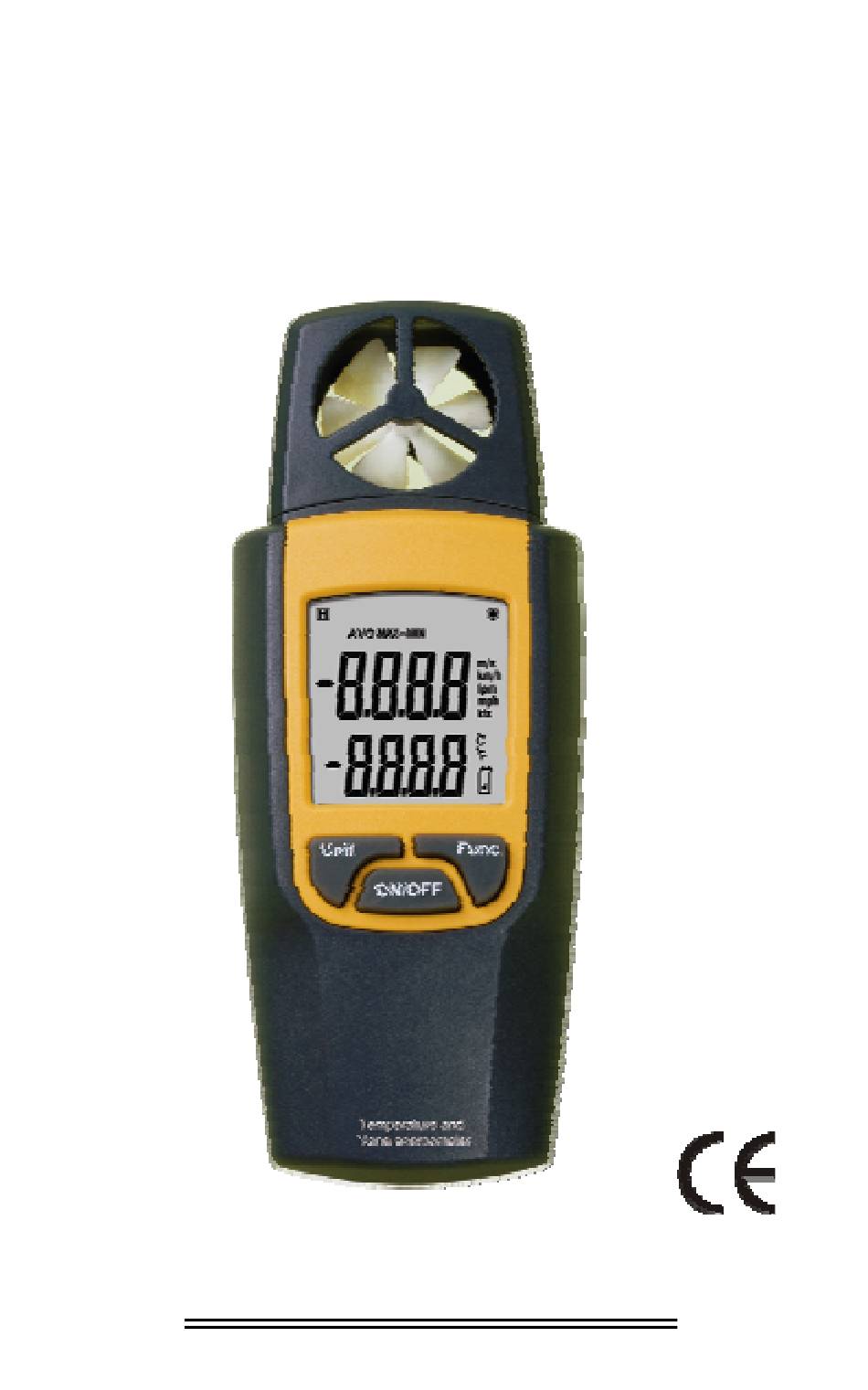

TEMPERATURE AND VANE ANEMOMETER Users Manual...
Page 2
■. Introduction Thank you for purchasing the temperature and vane anemometer from us. Please take a few minutes to browse through this user manual before you begin to operate the meter to ensure that you are fully familiarized with how best to operate the meter as accurately and safely as possible.
Page 3
2. Never store the product together with solvents, acides or other aggressive substances. 3. When the battery voltage is under proper operation requirement, the symbol will show on the LCD and the battery needs to be replaced with new. 1.1.2 Maintaining the product ...
Page 5
■. Names of parts Instrument Familiarization 1. Sensor cover 2. Vane sensor 3. Temperature sensor 4. LCD display 5. Function key Func . Unit ON/OFF Temperature and Vane anemometer LCD Display...
Page 6
The meaning of the symbols represented by the following table Number Functions Symbol of Order Indicating it is now in the data-holding mode Indicating the display value being the maximum value(MAX) Indicating the display value being the minimum value(MIN) Measure values Velocity unit Temperature unit...
Page 7
Indication to the calibration mode Indication low power of batteries. Batteries should be replaced. ■. Operation instruction 1. Please install new batteries on the meter. 2. Press the ON/OFF key to turn the power on. 3. Put the meter on the environment to be measured and make the vane sensor upright to the wind direction for measurement.
Page 8
Press the key to turn the power ON and press the key once more to turn the power OFF. 2. Func. key 1) Press the key can select the state of MAX、MIN、 HOLD. The cycle of views shows as following figure: Func.
Page 9
>1sec. the light will be turned off. If the back light is not closed within 60 seconds, it will be turned off automatically. 3. Unit key 1) Unit set Velocity unit. Press Unit key <1sec. can change the Velocity unit. (m/s, km/s, fpm, mph, kts, Beaufort scale) ...
■. Maintenance 1. CLEANING INSTRUCTIONS The meter may be wiped down with a wet sponge or cloth using a mild water based detergent or anti-bacterial soap and rinsed under a gentle stream of cold water. NOTE: This unit is not designed for complete submersion or washing in water.
