Power source 10. Trouble Shooting. 1.Overall description MT-7025 is a multifunction cable tester. It is a tester that combines wire tracking, wire finding, cable mapping, and telephone line polarity test. It can find the target wire in numerous messy wires, and one doesn’t need to unplug the network cable or turn off the...
2.Feature Multifrequency signal features strong anti - interference ability Signal transmission distance up to 2 kilometers suitable for long distance cable finding Connected to Ethernet with signal voltage and transmit signal directly, the receiver side can find the wire easily ...
Page 4
Transmitter Continuity test Max. signal voltage 8Vp-p Function selection 3 Position mode switch Cable map indication 8 LEDs Shielded indication 1 LED Phone line polarity indication Yes Voltage protection AC 14V or DC 10V Low battery display 6.0V DC 9.0V (NEDA 1604/ 6F22 Battery type DC9V ×1pcs) Dimension (LxWxD)
4.Packing list Transmitter Receiver Earphone RJ45 8P8C patch cord Carrying bag User’s manual Battery 5.Safety instructions Never test the cable that has over AC 14V or DC10V to avoid possible electric shock or personal injury and avoid possible damage the meter or equipment. ...

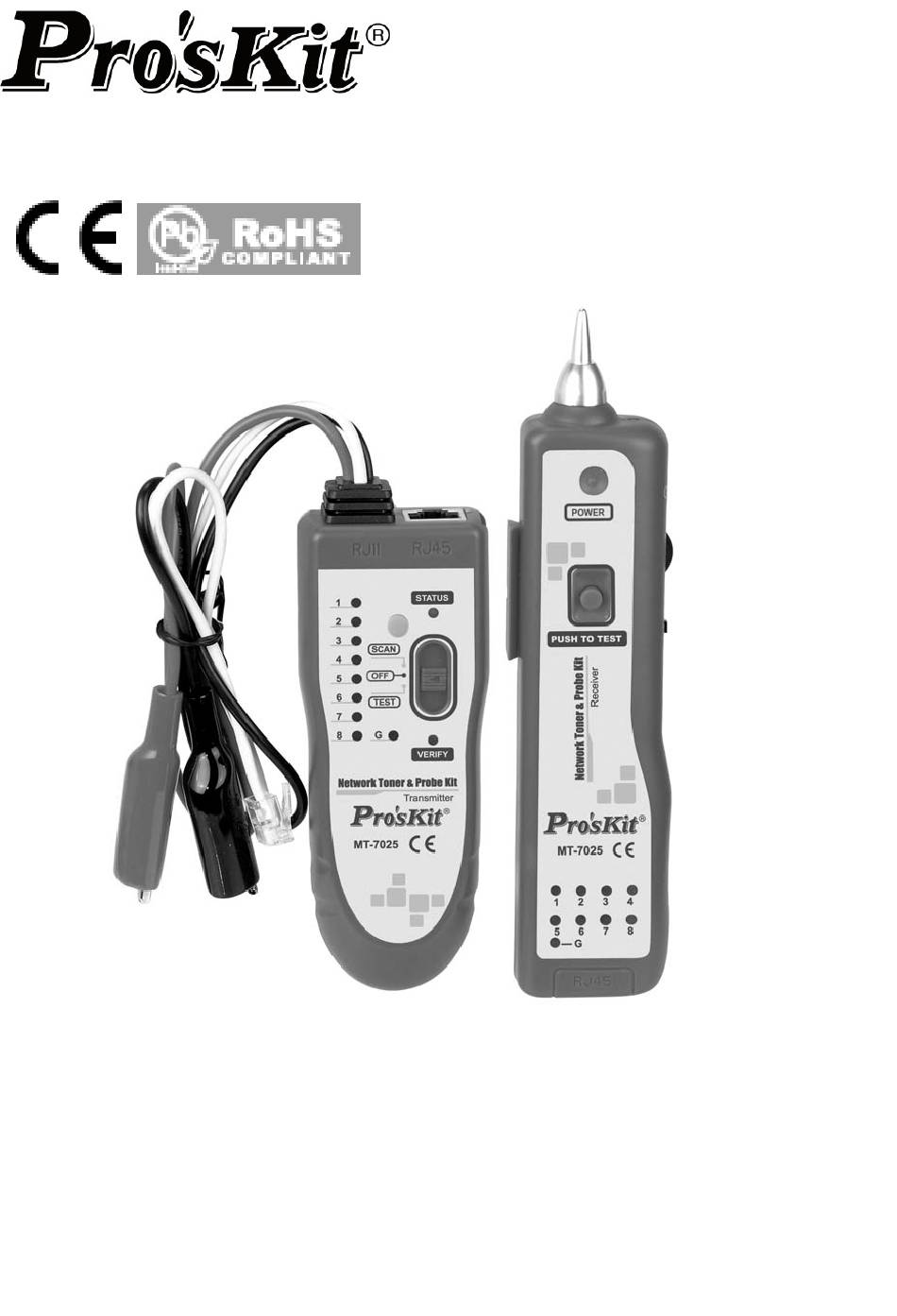

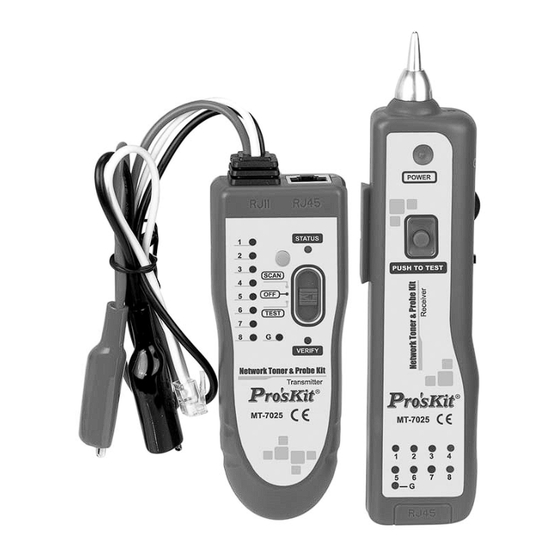

6.MT-7025 transmitter instructions RJ45 Socket Wire finding and cable status LED indicator Function change button Power and function switch (SCAN/OFF/TEST) Cable test verify LED indicator Cable mapping LED indicators Alligator cable RJ11 cable RJ-11 cable, for telephone line test ...
Wire finding and cable status LED indicator For wire or cable finding and status indication Cable test verify LED indicator For testing result indication. 7.MT-7025 Receiver instructions Tone tested probe LED illumination Signal indicator Volume adjustable rotary switch...
Page 8
8.How to test *** Cable map For testing UTP/STP/SFTP cat.5 cat.5e cat.6 cables and cat.3 telecom cables, connect both side of RJ-45 or RJ-11/12 patch cord by plug into transmitter and receiver, slide “Power and function switch” to “TEST” position, the “VERIFY “LED flash, then star to process cable mapping, press “Function changed button”...
WIRE MAP ***Cable test with switching equipment UTP/STP patch cord, one terminal connect to transmitter, the other terminal connect to switching equipment, slide “Power and function switch” to “TEST” position, transmitter 1~8 LED will light up in order that indicate 1~8 conductors are all connected, the related LED will off if no connection.
RJ-11, Alligator connector or 8P8CR J45 patch cord to connect the tested cable according to the tested cable type. Slide “Power and function switch” to “SCAN” position, transmitter will transmit dual frequency tone. If you want to change the dual frequency to single, press “Function changed button”...
Black and red Alligator connectors clip to 2 wires terminal the RJ-11 cable plug in socket of tested wire. The number “1” LED will light up if wires short, The number “1” LED will off if wires open, brightness of number “1” LED indicates the wires with hi or low resistance, LED bright indicates low resistance, LED off indicates hi resistance.
Page 12
Battery replacement Remove the cover of battery compartment Replace new battery Put the cover back...
10.Troubleshooting Problem Solution Check battery power or connection Confirm “Power and function switch” Can’t receive the tone is on “SCAN” position signal for finding cable Instrument is damaged; please send it back to us for repair. It is probable tone signal interfere with Perform test with telecom switching equipment signal telecom switching...
