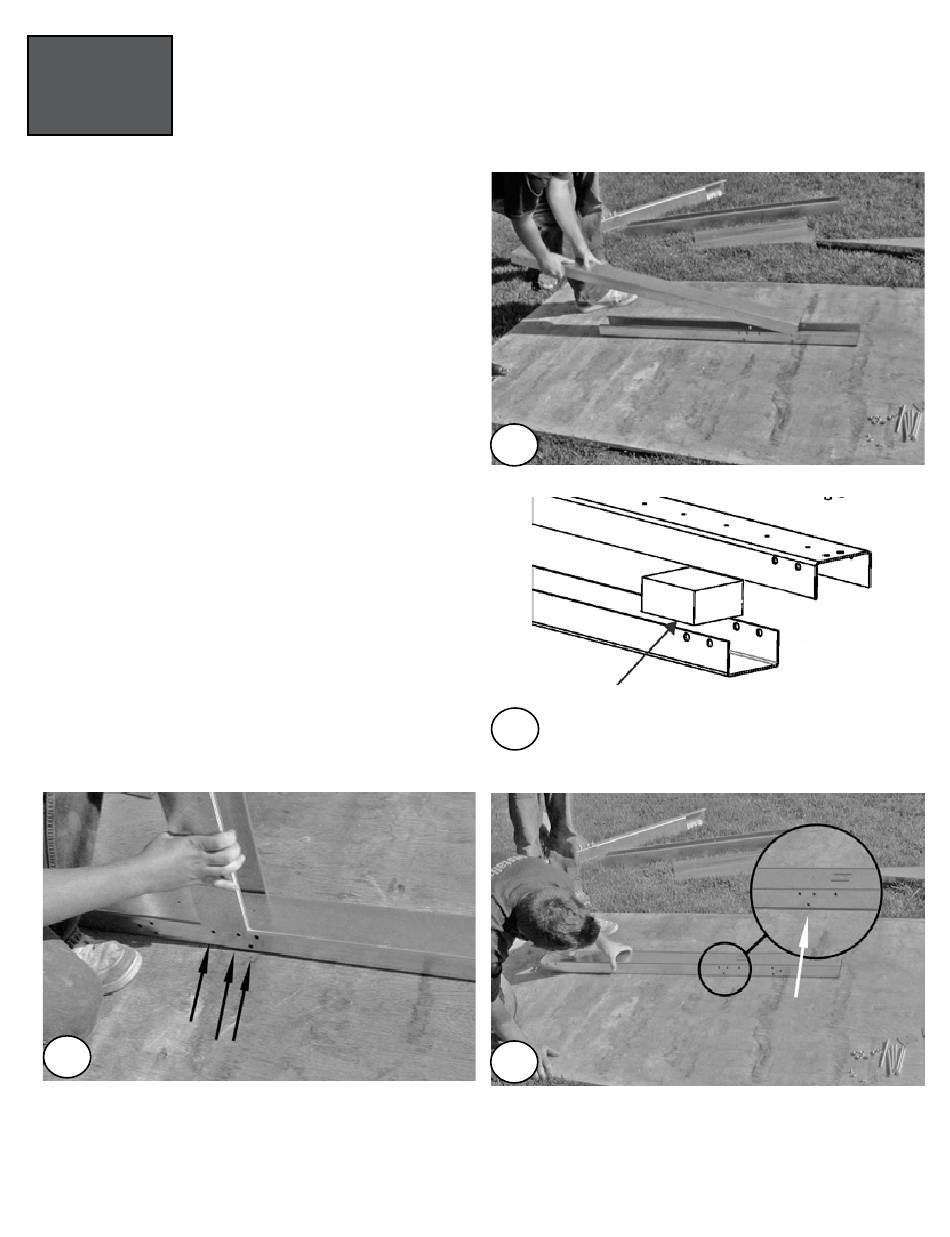

1. Assembling the strap end channel
a. Overlay the strap end channel over the under channel
(under channel is belly-up). (Image 11)
b. Before bolting the strap sections to the strap end
channels, Insert the foam block in the front part of the
strap end channel, insert it at least 1 1/2" past the edge
of the channel. (Image 12)
c. Align the holes of the strap end channel with those of the
underbox channel, but do not secure them with the bolts
at this time. (Image 13)
d. Slide the steel upright over the strap end channel making
sure that the holes line up. The steel upright opening
must face the longest part of the strap end channel.
(Image 14)
HELPFUL HINT: The top channel extends past the
under channel towards the inside of the pool.
