Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all local codes and authorities having jurisdiction.
Product is intended for indoor use only.
1. Remove backplane from enclosure prior to installing into rack cabinet (do not discard hardware).
2. In order to mount included UL Listed tamper switch (Altronix Model TS112 or equivalent) turn the
enclosure upside down. Punch out the knockout in designated location, on the back of the unit, from
outside of the drawer (Fig. 3, pg. 3). Insert the tamper switch into the knockout from outside of the drawer
with the button facing outwards and spaded connectors inside the drawer. Connect tamper switch wiring to the
Access Control Panel input or the appropriate UL Listed reporting device.
To activate alarm signal open the rack drawer.
3. Slide the Trove rack enclosure into an open 2U location in the rack cabinet.
4. Utilizing proper fasteners attach front ears to the rack rails.
5. Attach the rear of the adjustable slides to the rear rails of the rack cabinet with the proper fasteners.
6. Make sure that all internal cofigurations (wiring, voltage selection, switch settings, etc.) are complete
before mounting backplane back into enclosure.
7. After all components are mounted on the backplane, attach it to the enclosure using included hardware.
8. Mount AMAG M4000 modules to TAG1R backplane, refer to page 3.
9. Refer to the eFlow Power Supply/Charger Installation Guide for eFlow6NB and corresponding Sub-Assembly Installation Guides for the following
models: ACMS8 and VR6 for further installation instructions.
1. Align the AMAG M4000 modules on the backplane to match the boards' mounting holes with corresponding pems.
2. Fasten standoffs (provided) onto metal pems (Fig. 4a, pg. 3).
3. Mount AMAG M4000 modules to standoffs utilizing pan head screws (provided) (Fig. 4a, pg. 3).
4. Fasten TAG1R backplane to Trove1R rack enclosure utilizing hardware (provided).
M4000
M4000-DEC4, M4000-IOC20/16
Fig. 4
A
A
Trove1AG1R
Installation Instructions for T1RAG3F8:
T1RAG3F8: Configuration of AMAG M4000 Modules:
Position Chart for the Following Models:
Metal
Standoff
Placement
eFlow6NB
ACMS8 with
VR6 below
Back of the drawer,
viewed from outside.

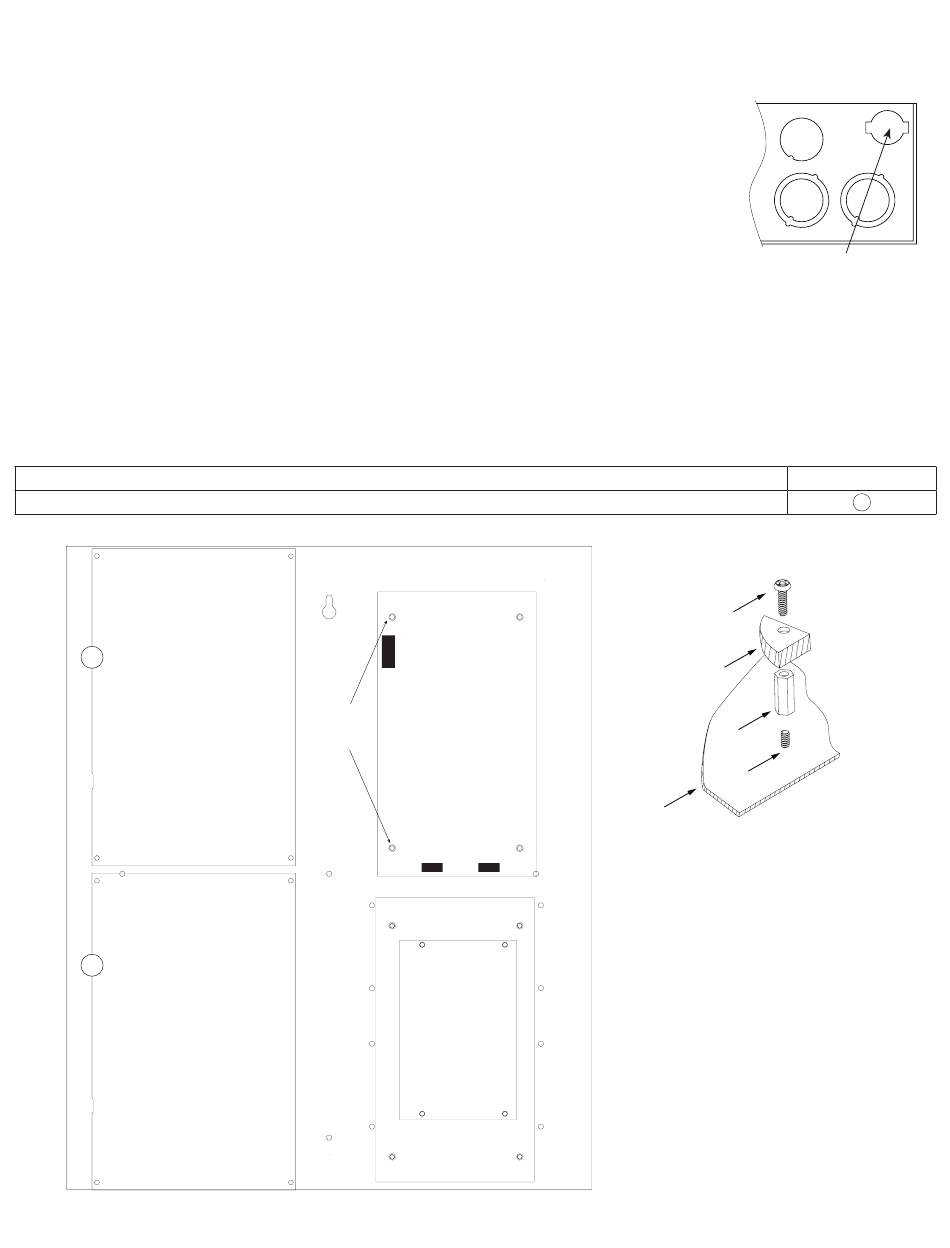

Fig. 3
Tamper Switch mounting location
Fig. 4a
Pan Head Screw
Power Supply or
Sub-Assembly
Standoff
Pem
Backplane
Pem Mounting
A
