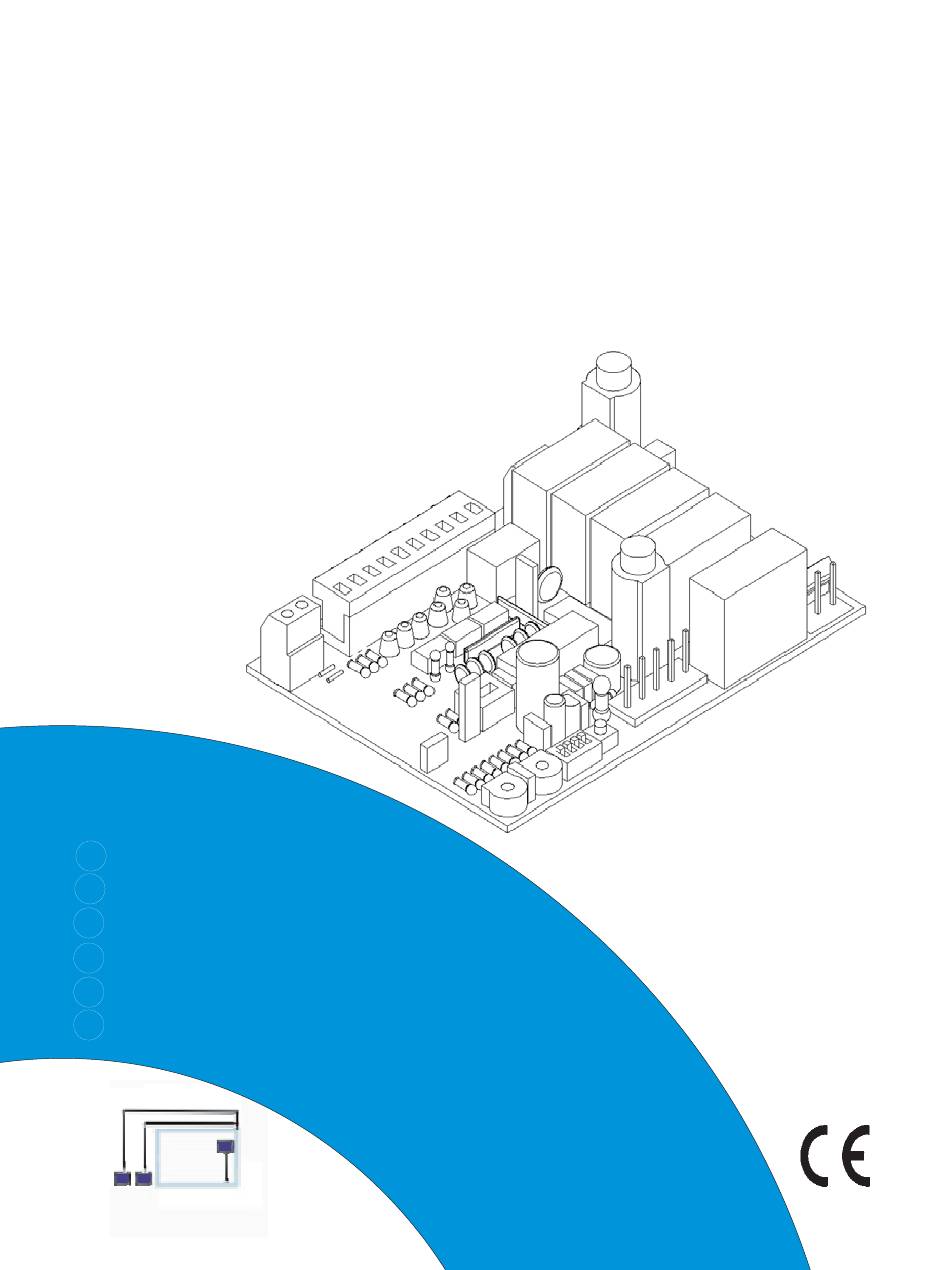

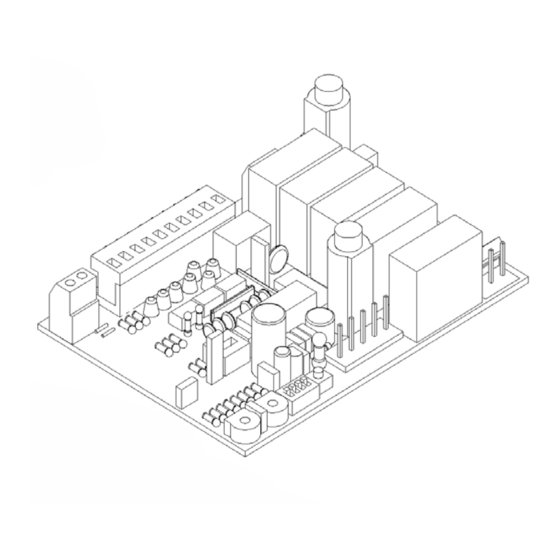

  • Page 1 Centralina elettronica Control unit Armoires de commande Steuerung Centralitas Unidades de comando 900CT-1A 900CT-1AR 900CT-1AS MANUALE ISTRUZIONI MANUALE ISTRUZIONI INSTRUCTION MANUAL INSTRUCTION MANUAL LIVRET D’INSTRUCTIONS LIVRET D’INSTRUCTIONS ANLEITUNGS HEFT ANLEITUNGS HEFT MANUAL DE INSTRUCCIONES MANUAL DE INSTRUCCIONES MANUAL DE INSTRUÇÕES...
  • Page 2 SAFETY We congratulate you for the excellent choice. This handbook will help you during the installation of your gear motor. You will find explanation regarding gear motor's functions and safety rules, which will always grant you a perfect operating and maximum safety.In order to avoid damages on your equipment or to injure yourself and other persons, please read carefully and completely the present handbook before installing the gear motor.

  • Page 3: Table Of Contents

    INDEX I GB INDEX MODELS AND SPECIFICATIONS TECHNICAL DATA SET PANEL 900CT-1A 900CT-1AR TERMINAL BOARD CONNECTIONS CONNECTIONS MADE IN PRODUCTION SET PANEL 900CT-1AS NSTALLATION STANDARD OPERATION CT-1A – CT-1AR CODE SELF-LEARNING CT-1A CODE SELF-LEARNING VIA RADIO STANDARD OPERATION OPTIONS TESTING...

  • Page 4: Models And Specifications

    MODELS AND SPECIFICATIONS 900CT-1A Unit 230V pre-set for electric clutch,with built-in radio decoder and radio. Unit 230V pre-set for electric clutch,and for radio card 900CT-1AR insertion. 900CT-1AS Unit 230V pre-set for electric clutch, and for radio card insertion. TECHNICAL DATA...

  • Page 5: Set Panel 900Ct-1A 900Ct-1Ar

    SET PANEL 900CT-1A 900CT-1AR t.pausa ant. Modulo radio aaaaaaaaaaaaaaaaaaaaa aaaaaaaaaaaaaaaaaaaaa aaaaaaaaaaaaaaaaaaaaa aaaaaaaaaaaaaaaaaaaaa aaaaaaaaaaaaaaaaaaaaa aaaaaaaaaaaaaaaaaaaaa aaaaaaaaaaaaaaaaaaaaa aaaaaaaaaaaaaaaaaaaaa Blocco TRABALHO Mem. p.p. com. Dip switch ped. di selezione P pulsante foto autoapprendimento fca fcc foto aut. Stop Fus. Comune finecorsa c.a. Max 2w...

  • Page 6: Connections Made In Production -5

    CONNECTIONS MADE IN PRODUCTION OP-CO-CL (MOTOR) Output for motor connection. (If the direction of rotation is incorrect, invert the connector). CAPAC. Connection of motor capacitor PRIMARY TRANSF. Power supply transformer primary SECONDARY TRANSF. Power supply transformer secondary CLPC-COM-OPPC Limitswitch input SET PANEL 900CT-1AS SCHEDA radio t.pausa...

  • Page 7: Installation

    INSTALLATION Device installation must be carried out professionally by personnel with qualifications as specified by current legislation. To guarantee safety of the operator and prevent damage to parts during connections, both low voltage (230V) and very low voltage (24V) or when connecting the radio card, the control unit must always remain disconnected from the power supply.
  • Page 8 The pedestrian command starts door opening, which lasts 1/3 PEDESTRIAN of the work time set by means of the trimmer. The door open indicator lamp notifies the user of the door status. door closed - lamp off. door in opening phase - slow flashing lamp. DOOR OPEN door open - lamp lit.

  • Page 9: Ct-1A - Ct-1Ar Code Self-Learning

    CT-1A – CT-1AR CODE SELF-LEARNING In the self-learning phase, all controls are inhibited. To enter the self-learning phase, the door must be in the closed status (with G.O. indicator off). The led indicating all self-learning data is connected to the G.O. Indicator. During programming, the G.O.

  • Page 10: Ct-1A Code Self-Learning Via Radio

    CT-1A CODE SELF-LEARNING VIA RADIO The code self-learning process is possible via radio, by following a pre-set sequence. This sequence enables the memorisation of a new radio control when one is already memorised. Before following the pre-set sequence, a special condition is required to specify entry in the radio memorisation mode.

  • Page 11: Standard Operation Options

    STANDARD OPERATION OPTIONS FLASHING UNIT/COURTESY LAMP FUNCTION This enables the user to select whether to enable the output JUMPER 1 for a flashing unit or that of a courtesy lamp (which turns off 3 minutes after door movement). NORMAL/APARTMENT BLOCK OPERATION DIP SWITCH 1 This selection enables the user to change from the standard operation of step mode (open stop close) to an open-only command.

  • Page 12: Testing

    TESTING Testing of the entire system where the control unit is installed must be performed by qualified personnel who must conduct all tests according to the associated risks. BEFORE POWERING UP THE AUTOMATION - check all connections - set all trimmers to minimum - set all dip switches as required - set the adjustment trimmer to minimum power On completion of the above, the unit can be started up.

This manual is also suitable for:
