Key Automation 900CT-824S Instruction Manual

Electronic control unit
Hide thumbs Also See for 900CT-824S:

Advertisement

Quick Links

Download this manual
Centrale elettronica
Electronic control unit
Centrale électronique
Elektronische Steuereinheit
Central electrónica
Central electrónica
Elektroniczna jednostka sterująca
Electrische zekering
900CT-824S
MANUALE ISTRUZIONI
IT
INSTRUCTION MANUAL
GB
MANUEL D'EMPLOI
F
BEDIENUNGSANLEITUNG
D
MANUAL DE INSTRUCCIONES
E
MANUAL DE INSTRUÇÕES
P
INSTRUKCJA OBSŁUGI
PL
GEBRUIKSHANDLEIDING
NL
Key Automation
S.p.A

Advertisement

loading
Need help?

Need help?

Do you have a question about the 900CT-824S and is the answer not in the manual?

Questions and answers

Related Manuals for Key Automation 900CT-824S

Summary of Contents for Key Automation 900CT-824S

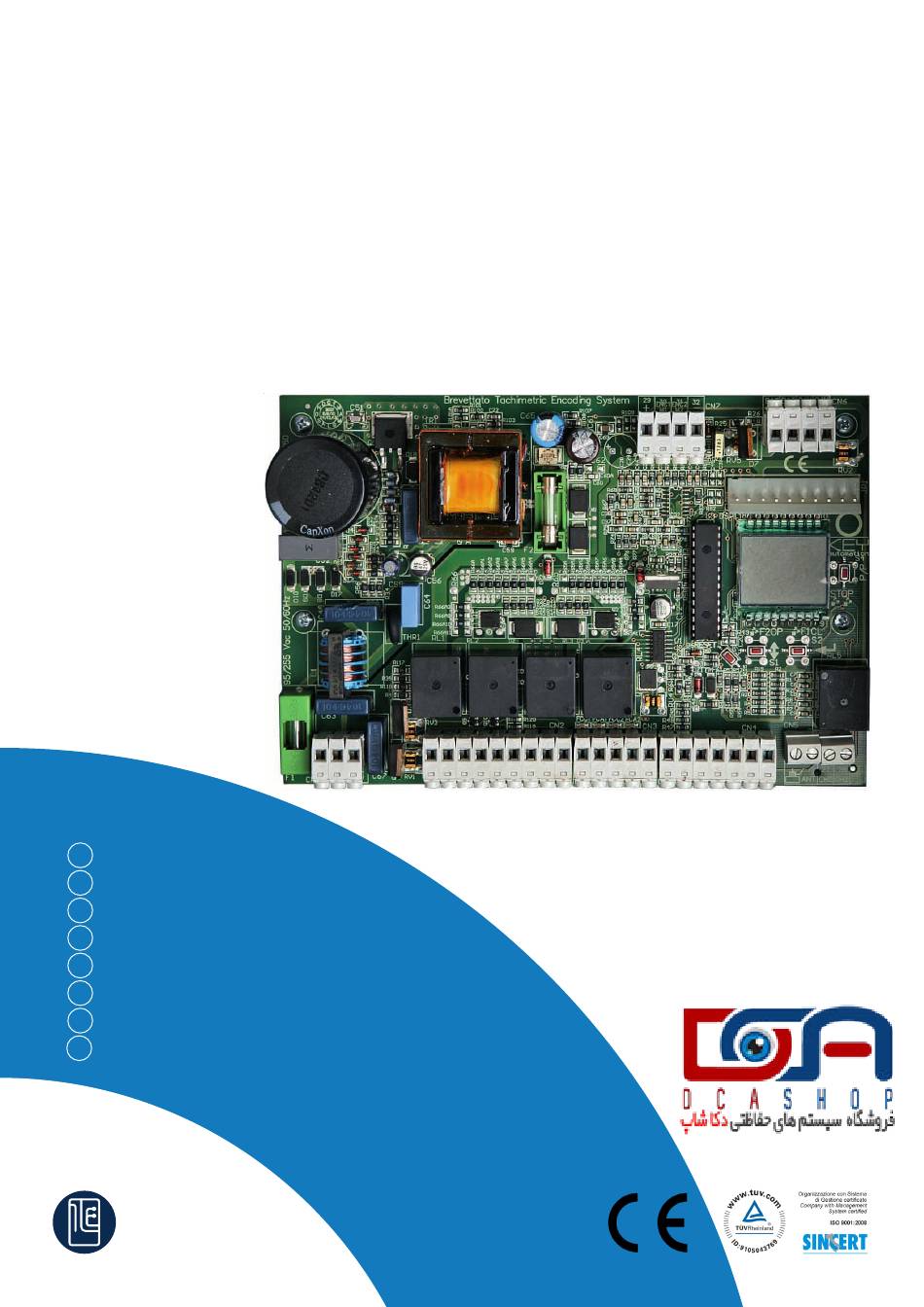

  • Page 1 Centrale elettronica Electronic control unit Centrale électronique Elektronische Steuereinheit Central electrónica Central electrónica Elektroniczna jednostka sterująca Electrische zekering 900CT-824S MANUALE ISTRUZIONI INSTRUCTION MANUAL MANUEL D'EMPLOI BEDIENUNGSANLEITUNG MANUAL DE INSTRUCCIONES MANUAL DE INSTRUÇÕES INSTRUKCJA OBSŁUGI GEBRUIKSHANDLEIDING Key Automation S.p.A...

  • Page 2: Electrical Connections

    APERTURE is one, if not remove power to the facility and turn the connector to reverse the opens with the closes. WARNING The data and information contained in this manual are subject to change at any time and without prior notice from Key Automation S.p.A.

  • Page 3: Models And Characteristics

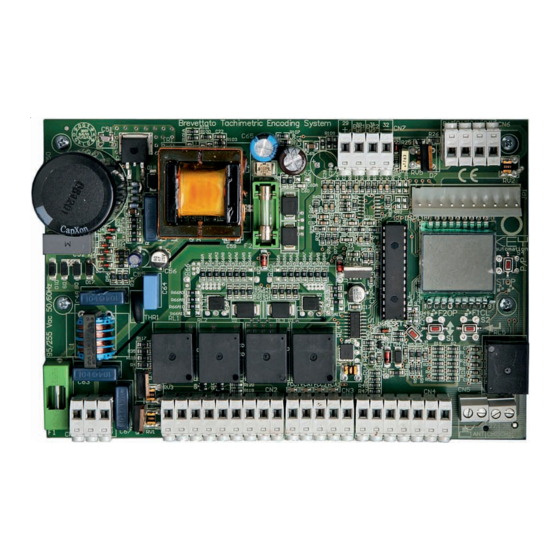

    MODELS AND CHARACTERISTICS 900CT-824S Control unit for two motors, 24 Vdc with encoder and switching power supply, tachym- etric and amperometric electronic clutch, set up for radio card and integrated battery charger module, supplied with plastic box TECHNICAL DATA 900CT-824S...
  • Page 4 CONNECTOR CN1 1) F Phase 95-255 Vac 2) N Neutral 95-255 Vac Ground 230Vac CONNECTOR CN2 4) AP M1 M1 motor connection 5) CH M1 M1 motor connection 6) AP M2 M2 motor connection 7) CH M2 M2 motor connection Motor M2 starts first during closing 8) ELS Electric lock output connection...
  • Page 5 CONNECTOR CN3 13) FCC1 Motor 1 limit switch (closing limit switch) 14) FCA1 Motor 1 limit switch (opening limit switch) 15) FCC2 Motor 2 limit switch (closing limit switch) 16) FCA2 Motor 2 limit switch (opening limit switch) 17) COMF Motors 1-2 limit switch common connection N.B.
  • Page 6 CONNECTOR CN5 25) ANT Antenna connection (signal) 26) ANT Antenna connection (braid) 27) CH2 2nd radio channel connection (only if the 2 channel snap-in receiver is used) 28) CH2 2nd radio channel connection (only if the 2 channel snap-in receiver is used) CONNECTOR CN6 33) BAT+ Connection positive battery charger...
  • Page 7 VISUAL DIAGNOSIS Visual diagnosis of correct connection of controls: The control unit is designed to permit installation as quickly as possible, and thus to see immedi- ately whether the wiring connections are correct by means of LED indicators: • STOP input no. 23 in which the use of a N.C. contact is mandatory must be closed and the two LCD dots must NOT flash.
  • Page 8 PROGRAMMING The following procedure is used to access the self-learning procedure for working times/automatic closure/door offset: Position the doors to half their opening position, Press down on the S2 ENTER button until Parameter A is displayed Press the P/P button, door 2 will start to close and after 3 sec. door 1 will start to close (if the first movement is not closure, press the reset button and invert the motor connection wires) After both doors have closed completely, door 1 will open automatically and after 2 sec.
  • Page 9 FUNCTIONS \ VALUES Sensitivity selection parameter: ELECTRONIC CLUTCH Average Average mini- Maximum Maximum sensitivity= minimum (sensitivity) maximum minimum force MOTOR SPEED Minimum Maximum Motor speed selection parameter AUTOMATIC CLOSURE pedes- Automatic closure selection parameter (seconds) trian only Open Activating the P/P function prevents the automation from stop- OPEN COMMAND Stop Open Close...

  • Page 10: Battery Kit

    • Keep this instruction manual for future reference. • Key Automation S.p.A. reserves the right to make, at any time, any modifications which may be required to improve appearance and/or operation. DISPOSAL This product is composed of various components which may in turn contain pollutants.
  • Page 11 Key Automation S.p.A Società con unico socio P.IVA 03627650264 C.F. 03627650264 Via Alessandro Volta, 30 Capitale Sociale Euro 400.000,00 i.v. 30020 Noventa di Piave (Ve) Italia Reg. Imprese di Venezia n. 03627650264 T. +39 0421.307.456 REA VE326953 F. +39 0421.656.98 www.keyautomation.it...
