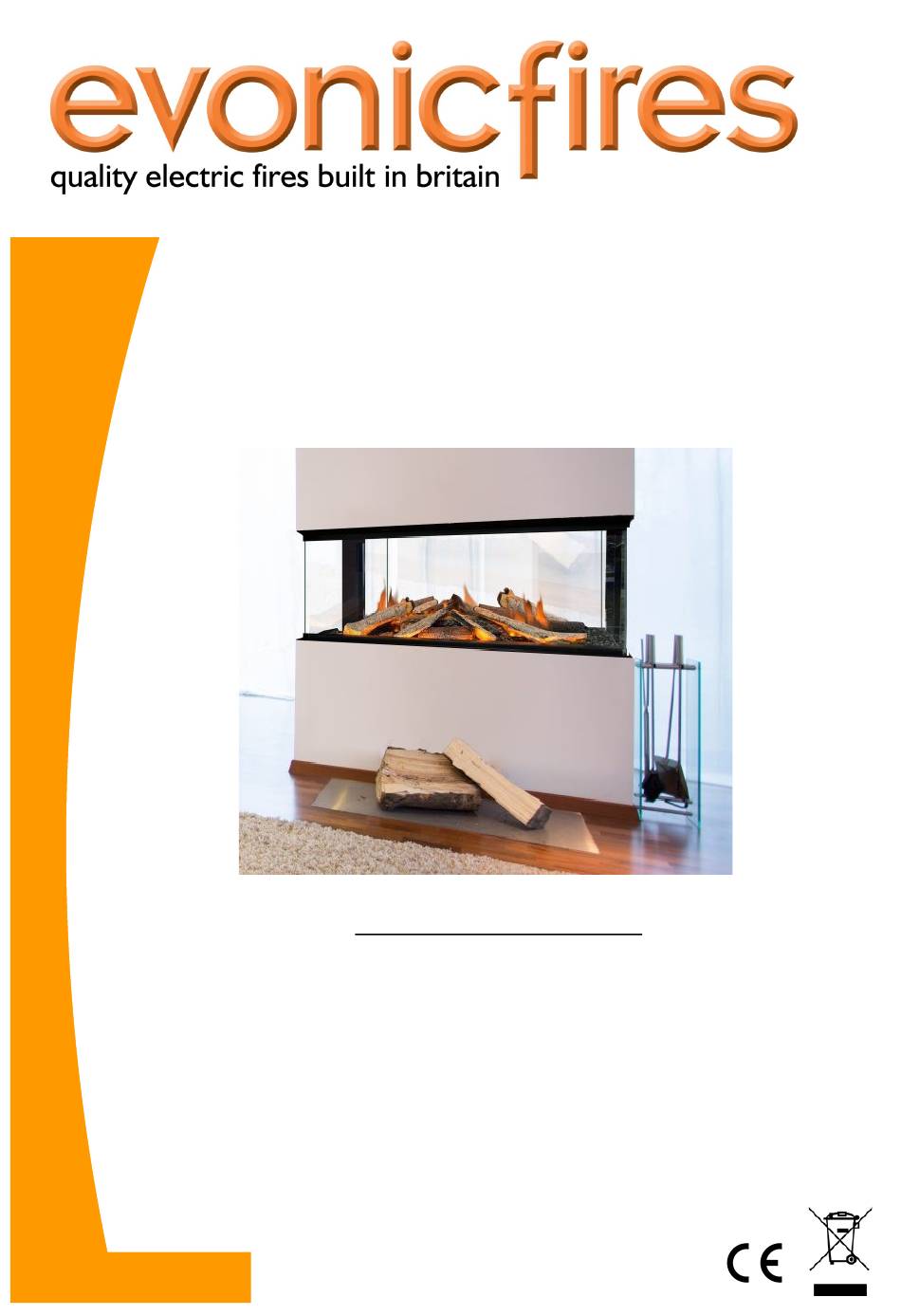

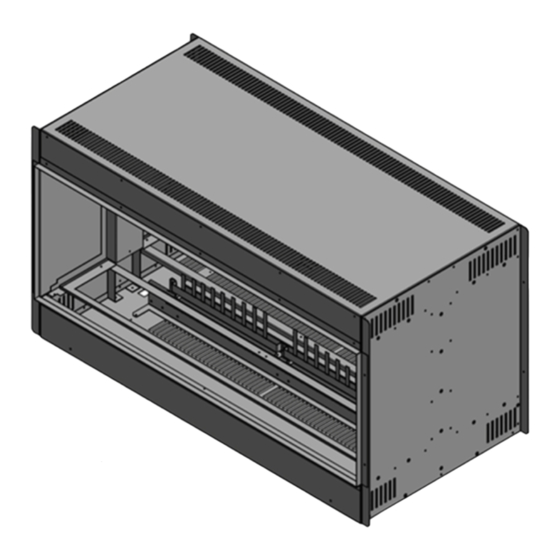

E1030ds -
Instruction Guide
Important Safety Information
Always read this manual first before attempting to install or use this
fireplace. For your safety, always comply with all warnings and safety
Instructions contained in this manual to prevent personal injury or property
damage.
Please Note: This product is for well insulated spaces or
occasional use.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Evonic Fires E1030ds
Summary of Contents for Evonic Fires E1030ds
- Page 1 E1030ds - Instruction Guide Important Safety Information Always read this manual first before attempting to install or use this fireplace. For your safety, always comply with all warnings and safety Instructions contained in this manual to prevent personal injury or property damage.
-
Page 2: Table Of Contents
Contents 1. Introduction 2. Important Instructions 3. Installation Requirements & Product operation Installation Method E-Touch & App Template 7. Glass Removal 8. Troubleshooting & Specification 9. Warranty welcome to evonicfires evonicfires is an award-winning brand of CK Fires Ltd, situated just outside Stratford- upon-Avon, we manufacture a range of British built electric fires and are considered as one of the most technically advanced manufacturers in the world, with optional controllers such as e-touch and a fully integrated APP available to download on both... -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS: When using electrical appliances, basic precautions should always be fol- lowed to reduce the risk of fire, electric shock, and injury to persons, including the following: ① Read all instructions before using this electric fireplace. ② This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. - Page 4 ⑬ Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage to the heater. ⑭ To prevent a possible fire, do not block air intakes or exhaust in any manner.
-
Page 5: Installation Requirements
INSTALLATION REQUIREMENTS: Review and consider all of the following conditions before installation: This appliance must only be connected to a 230/240 Volts AC 50Hz supply. Before connecting the fire, check that the supply voltage is the same as stated on the fire. This appliance must only be used on a AC supply, fuse rating 13Amp. - Page 6 Grounding Instructions: This product must be grounded. If it should malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conduc- tor and a grounding plug.
-
Page 7: Installation Method
Installation Method This product is designed to be assembled into our E-mod installation units or an existing flue or suitable wall space. Please seek advice from a professional, with reference to the structural integrity of the installation site. if the products is to be installed into a open chimney or flue, it is important that the chimney/flue is blocked off to prevent any up/ down draughts and falling debris which could restrict and alter the airflow to the product. - Page 8 Fig 2 shows the fire fitted into an E-mod as- sembly. Identified are the plaster kit sides, and how they are used to support the body of the fire in place. Fig 2. Fig 3 indicates the top section of the plaster kit.
-
Page 9: E-Touch & App Template
E-Touch & App Template The Appliance is operated using the E-Touch App Control. The App Control can be used on either OS or Android operating systems. To obtain the App please visit either the OS App Store Or Google Play and follow the on screen instructions. -
Page 10: Glass Removal
Glass Removal: 1. Remove the 2 screws located in the bottom glass retaining bar. Repeat this process on either side of the fire 2. Remove the bottom glass retaining bar. Again, repeat this on both sides of the fire. 3. Remove the glass by pulling the second retaining bar away from the body of the fire. -
Page 11: Troubleshooting & Specification
: www.evonicfires.co.uk and complete the fields re- quired under the Report a Fault section. Please refer to the terms of your warranty. Technical Specification MODEL WIDTH DEPTH HEIGHT e1030DS 1002mm 500mm 556mm E-MOD SPEC WIDTH DEPTH HEIGHT E-MOD 1... -
Page 12: Warranty
Register a Prod- uct Section. By registering your appliance, an extra 12 months is added to your warranty CK Fires Ltd / Evonic Fires 1 Evonic house, Clifford park, Clifford lane, Stratford-Upon- Avon, CV37 8HW...
