evonic f ires

SUITES

INSTALLATION MANUAL

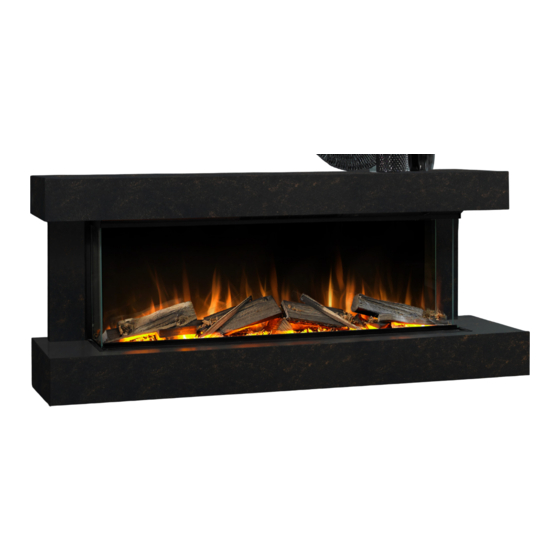

Cubbington 1350

1350

Cubbington

Cubbington 1500

1500

Cubbington

Heathcote 1350

1350

Heathcote

Heathcote 1500

Heathcote

1500

Ledbury 1350

1350

Ledbury

Ledbury 1500

1500

Ledbury

Welford 1350

1350

Welford

Welford 1500

1500

Welford

EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1

e-lectra 1350

1350

e-lectra

e-lectra 1500

1500

e-lectra

Espire 200

200

Espire

Espire 175

Espire

175

Espire 150

150

Espire

Imperium

Crenshaw

Inglewood

Ellipse

Bergen

Gilmour 10

Gilmour

Gilmour 7 7

Gilmour 6 6

Gilmour

Compton 1000

Compton

Compton 2 2

Compton

Empire 2 2

Empire

SUITES. 1

1000

Table of Contents

Need help?

Do you have a question about the Cubbington 1350 and is the answer not in the manual?

Questions and answers

Summary of Contents for Evonic Fires Cubbington 1350

Page 1 SUITES SUITES INSTALLATION MANUAL INSTALLATION MANUAL Cubbington 1350 1350 e-lectra 1350 1350 Cubbington e-lectra Ellipse Ellipse Cubbington 1500 1500 e-lectra 1500 1500 Cubbington e-lectra Bergen Bergen Heathcote 1350 1350 Espire 200 Gilmour 10 Heathcote Espire Gilmour Heathcote...
Page 2: Table Of Contents
CONTENTS Health and safety.................................4 Checks before installation – All models........................5 Attaching the woodwork...............................6 Attaching the side wings...............................7 Wall mounting..................................8 Removing the side glass..............................9 Removing the front glass............................10 Control Methods………………………………………………………………………………………………………………......…...11 E-Smart App Setup…………………………………………………………………………………………………………......…...12 Using the E-Smart App ………………………………………………………………………………………………........14 Control Overview……………………………………………………………………………………………………………......…..15 Programming the Timer……………………………………………………………………………………………......…..16 Remote control..................................17 Connection Problems…………………………………………………………………………………………………......…..18 Retro-fitting the Remote Control…………………………………………………………………………......…..19...
Page 3 Particular requirements for room heaters Particular requirements for room heaters UKCA STANDARDS All Evonic Fires products are in conformity with the relevant UK Statutory Instruments All Evonic Fires products are in conformity with the relevant UK Statutory Instruments (and their amendments).
Page 4: Health And Safety
IMPORTANT INFORMATION AND HEALTH & SAFETY When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: • Read all of the instructions carefully before using the appliance, only use this appliance as described in this manual.
Page 5: Checks Before Installation - All Models
CHECKS BEFORE INSTALLATION - ALL MODELS INSTALLATION DO’S AND DONT’S Before installing the appliance please read and take into account the following important requirements; • Consult a qualified professional to check the structure of the installation site. • If installing into an existing chimney, make sure to adequately block off the flue. •...
Page 6: Attaching The Woodwork
ATTACHING THE WOODWORK - APPLICABLE MODELS On the bottom woodwork section of the suite, unscrew and turn the mirror brackets on the rear 180°, so they are pointing upwards. Then on the top woodwork section, unscrew and turn the mirror brackets 180° so they are pointing downwards.
Page 7: Attaching The Side Wings
FLOOR-BASED INSTALLATION (WITH RISER) Identify where you want to position your fire in a room. Once you have done this, slide your riser into position. You may want to measure the width of both the suite and the riser so you can identify the centre point of the fireplace.
Page 8: Wall Mounting
WALL-MOUNTING - ALL MODELS Remove the two bottom mounted transit brackets, you won’t need these for installation. Then screw on the IEC Clip to the bottom back of the case, with the two provided screws. Determine the finished height and position that you want the appliance to be located.
Page 9: Removing The Side Glass
REMOVING THE SIDE GLASS PANELS - APPLICABLE MODELS Unscrew and remove the top glass retainer panels. Slide out the side glass piece(s). Depending on the model, you may have to angle the side glass. EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS. 1 EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS.
Page 10: Removing The Front Glass
INSTALLING THE FRONT GLASS PANEL - APPLICABLE MODELS On 1800mm and 2400mm models, apply the suction cup to the glass and position the bottom edge of the glass first, then pivot the glass into the appliance. If not using a suction cup, carefully hold the glass on either end and follow the same process.
Page 11: Control Methods
CONTROLLING YOUR FIRE There are two ways to control all the features of your Evonic appliance - remote or e-smart App E-SMART E-SMART REMOTE Our remote handset comes automatically paired and ready to operate straight out of the box. If you choose to control your appliance via the e-smart app, your internet router and smart device should meet the following minimum requirements - Wi-Fi Router...
Page 12: E-Smart App Setup
E-SMART APP SETUP To begin using the app you first need to pair your appliance to the app, we have To begin using the app you first need to pair your appliance to the app, we have created a video on our Youtube channel to guide you through the process of pairing created a video on our Youtube channel to guide you through the process of pairing your appliance to your smart phone or tablet.
Page 13 CONTINUED... Open the settings panel on the app’s Scroll down to the ‘IoT Registration’ section and fill in your email address and create a Home Screen. password. Press ‘Save’. Then select the grey wi-fi button. The pairing process between your device, the Select your router from the drop down box, and fire, and your router will now take place.
Page 14: Using The E-Smart App
USING THE E-SMART APP Press to turn the Control Overview fire ON or OFF Timer settings Press to turn the Shop heater ON or OFF General settings E-SMART APP SETUP On the Home Page of the E-Smart Cloud App you can see the name of your fire, the chosen temperature, and the actual temperature.
Page 15: Control Overview
CONTROL OVERVIEW Temperature dial Target temperature Animation choice Turn your feature lights ON or OFF Speed settings Lighting settings Fuel bed speed / Flame speed / brightness bar brightness bar To adjust the desired temperature of your fire ensure that the heater is selected on the Home Page in To adjust the desired temperature of your fire ensure that the heater is selected on the Home Page in the previous step.
Page 16: Programming The Timer
PROGRAMMING THE TIMER Input your desired time in the Time box, Input your desired time in the Time box, select the action (Fire On/Off/, Heater On/Off) select the action (Fire On/Off/, Heater On/Off) Single press the clock icon on the Home Page Single press the clock icon on the Home Page you want.
Page 17: Remote Control
E-SMART REMOTE CONTROL Top Left - Turn your fire ON and OFF Top Right - Turn your feature lights and overbed illumination ON and OFF Middle Left - Turn your heater ON Middle Right - Turn your heater OFF Bottom Left - Change the flame animation. Not applicable with single colour models.
Page 18: Connection Problems
PROBLEMS CONNECTING If you are having problems connecting your fire with your device and router please try the following steps to fix the issue. - Switch fire OFF - Switch wi-fi router OFF - Switch fire back ON (Keeping router OFF) - Open the wi-fi settings on your device - find and select your product / fire - Open the e-smart App on your device and select the settings icon - In ‘Device Name’, rename your fire (Be sure not to use numbers or spaces when renaming your fire)
Page 19: Retro-Fitting The Remote Control
RETRO-FITTING THE REMOTE CONTROL In order to retro-fit your remote on older models, please ensure you follow these steps BEFORE you attempt to use the remote control system. To begin the retro-fit of the remote control, To begin the retro-fit of the remote control, Once the fire has updated, select the Once the fire has updated, select the press the ‘update’...
Page 20: Connecting To Amazon Alexa
CONNECTING TO AMAZON ALEXA Once your fire is installed, and switched on, Once your fire is installed, and switched on, Single press Skills & Games on the pop up list. Single press Skills & Games on the pop up list. download and open the Amazon Alexa app.
Page 21 CONTINUED... Enter the log in details that you previously Enter the log in details that you previously After a few moments your account will be After a few moments your account will be entered in the app set up process, and single entered in the app set up process, and single linked, once this is done you can single press linked, once this is done you can single press...
Page 22: Connecting To Google Home
CONNECTING TO GOOGLE HOME Once your fire is installed, and switched on, Once your fire is installed, and switched on, Single press Set up Device on the pop up list. Single press Set up Device on the pop up list. download and open the Google Home app.
Page 23 CONTINUED... Type in Evonic Fires, single press search and Type in Evonic Fires, single press search and Once in the Evoflame log in page, enter the Once in the Evoflame log in page, enter the then select the Evonic Fires E-Smart icon.
Page 24: Commands For Voice Control
COMMANDS FOR AMAZON ALEXA When using Amazon Alexa or to control your appliance settings remember to substitute the words ‘the fire’ for whatever you have named your appliance. TURNING THE APPLIANCE ON AND OFF “Alexa, turn fire on.” / “Alexa, turn the fire off.” TURNING THE HEATER ON AND OFF “Alexa, set fire heater to auto.”...
Page 25: E-Lluminate Lighting Setup
E-SMART CLOUD APP LED CONNECTION Once the LED strip is plugged into the mains and In Settings go to Other Options. turned on. Go to the E-Smart app, then select Settings on your Home Page. Click on Search Mood Light, and wait for the app to connect to the LED strip.
Page 26: Warranty
Failure to supply evidence to support your warranty claim may invalidate or delay the claim. Any visit by an Evonic Fires engineer will incur a service charge after the first year. We will not accept or reimburse the cost(s) of any third party who undertakes any work carried out on the product or fits parts, unless we have approved such work in advance of it being carried out.
Page 27 For product sold outside the UK and Ireland, UK law will prevail. The Evonic Fires Extended Warranty does not affect your statutory rights. REGISTER YOUR EVONIC FIRE By registering your product on our website you ensure 4 years parts only cover on top of your standard one year warranty.
Page 28 CK Fires Ltd / Evonic Fires 1, Evonic House, Clifford Park, Clifford Lane, Stratford-on-Avon, CV37 8HW Tel: +44 (0)1789 263868 Fax: +44 (0)1789 293080 Email: sales@evonicfires.co.uk www.evonicfires.co.uk Follow us on: Instagram | Facebook | Twitter | LinkedIn @evonicfires EVONIC - 104 INSTRUCTION MANUAL TEMPLATE ISS.
