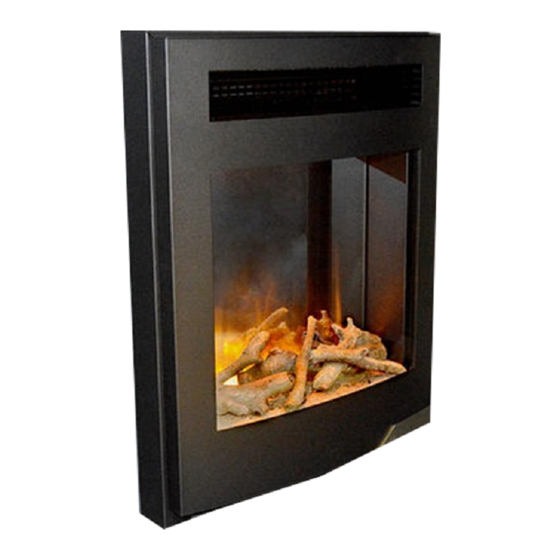

Inset Instruction Guide
Models – COLORADO – IOWA – DETROIT
– MEMPHIS - KANSAS – KEPLER 22
Important Safety Information
Always read this manual first before attempting to install or use this
fireplace. For your safety, always comply with all warnings and safety
Instructions contained in this manual to prevent personal injury or property
damage.
Please Note: This product is for well insulated spaces or
occasional use.
English
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Evonic Fires COLORADO
Summary of Contents for Evonic Fires COLORADO
- Page 1 Inset Instruction Guide Models – COLORADO – IOWA – DETROIT – MEMPHIS - KANSAS – KEPLER 22 Important Safety Information Always read this manual first before attempting to install or use this fireplace. For your safety, always comply with all warnings and safety Instructions contained in this manual to prevent personal injury or property damage.
-
Page 2: Table Of Contents
Electrical Safety Important Instructions Installation Requirements Operating Instructions Setting Thermostat Attaching & Removing Detroit Fascia Colorado Front Glass Removal Memphis Infill Plate Installation 10. Memphis-Kansas Tie back Installation 11. Memphis-Kansas Cast Frame 12. Technical Specification 13. Problem Solving Chart 16/19 14. -
Page 3: Electrical Safety
ELECTRICAL SAFETY: When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: ① Read all instructions before using this electric fireplace. ② This fireplace is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. - Page 4 ⑬ Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage to the heater. ⑭ To prevent a possible fire, do not block air intakes or exhaust in any manner. ⑮...
-
Page 5: Important Instructions
IMPORTANT INSTRUCTIONS: Important electrical safety: This appliance must never be installed above or in front of a fixed electric socket. The electrical socket must be easily accessible to isolate the supply during maintenance and cleaning. This appliance is supplied with a two meter power lead, which has a 13Amp moulded three pin plug to connect to a standard 230/240V plug socket. - Page 6 This appliance is supplied with a two meter power lead, which has a 13Amp moulded three pin plug to connect to a standard 230/240V plug socket. This appliance must always be earthed. If in any doubt consult a suitably competent person. All Evonic fires products meet the requirements of the EC Directives 2004/108/EC and 2006/95/EC.
-
Page 7: Installation Requirements
INSTALLATION REQUIREMENTS: INSTALLATION REQUIREMENTS: INSET MODELS: This product has been designed to be installed into a standard 420mm(W) x 570mm(H) x 80m(D) If the products is to be installed into a open chimney or flue, it is important that the chimney/flue is blocked off to prevent any up/down draughts and falling de- bris which could restrict and alter the airflow to the product. -
Page 8: Operating Instructions
Operating Instructions Note: This applies to REMOTE fires only. -
Page 9: Setting Thermostat
Setting the Thermostat Note: This only applies to MANUAL fires Ensure the fire is plugged in. Start by pressing the ‘light’ button on the left. This will activate your LED’s and bottom blower. For heat setting, ensure the thermostat knob is turned fully to the right (max temperature). -
Page 10: Attaching & Removing Detroit Fascia
Attaching & Removing Detroit Fascia This is applicable to models; Detroit... -
Page 11: Colorado Front Glass Removal
Colorado-Kepler 22 Front Glass Removal This is applicable to models; Colorado/Kepler 22... -
Page 12: Memphis Infill Plate Installation
Memphis Infill Plate Installation This is applicable to models; Memphis... -
Page 13: Memphis-Kansas Tie Back Installation
Memphis-Kansas Tie Back Installation This is applicable to models; Memphis/Kansas... -
Page 14: Memphis-Kansas Cast Frame
Memphis-Kansas Cast Frame Once the product is installed into position. Fix the cast fascia by hooking the tags on the rear of the cast into the cast fixing bracket. Fig 1 Once in position secure the cast frame by screwing the 2x M4 bolts provided through the fascia into the body of the fire. -
Page 15: Technical Specification
Technical Specification MODEL TOTAL TOTAL TOTAL INSET INSET INSET HEIGHT WIDTH DEPTH HEIGHT WIDTH DEPTH COLORADO 605MM 460MM 130MM 550MM 382MM 75MM IOWA 605MM 490MM 130MM 550MM 382MM 60MM DETROIT 590MM 460MM 180MM 550MM 382MM 75MM MEMPHIS 615MM 515MM 200MM... -
Page 16: Problem Solving Chart
Troubleshooting Flow Chart: Problem Possible Cause Solution Ribbons are statically connected to Spray some anti-static spray beneath glass. the tray. Check the correct aperture has been Installation airflow restricted. adhered to when installing— Recommended clearance is 100mm. Flames not working correctly Blower clogged. - Page 17 Problem Possible Cause Solution Fan unbalanced. Adjust fan to stop catching on the case. If problem persists replacement fan unit maybe required. Adjust fan to stop catching on the case Fan catching on housing. Noisy Heater Fan clogged. Fan requires cleaning out. If problem persists a replacement fan may be required.
- Page 18 Problem Possible Cause Solution Double check switches are turned to Rocker switch has not been turned to the ‘ON’ position. the ‘ON’ position. Remote needs pairing. See separate Remote/App not paired. pairing instructions for guide. Fire not turning on. Replace fuse. Fuse blown.
- Page 19 Problem Possible Cause Solution Timer has been accidentally set. Double check timer settings. Heater coming on randomly Thermostat faulty. Replace PCB. LED dropped down. LED needs to be re-stuck into place. LED streaking Log positioning. Change log positioning to hide any direct view of LED strip.
-
Page 20: Warranty
Register a Product Section. By registering your appliance, an extra 12 months of cover will be added to your warranty. CK Fires Ltd / Evonic Fires 1 Evonic house, Clifford park, Clifford lane, Stratford-Upon- Avon, CV37 8HW...
