HORLOGES ANALOGIQUES intérieures
NTP Receiver
Réceptrice NTP
Installation and operation manual
Manuel d'installation et de mise en service
www.bodet-time.com
When receiving goods please check nothing is broken otherwise make a claim near shipping company.
S'assurer à réception que le produit n'a pas été endommagé durant le transport pour réserve au transporteur.
ANALOGUE CLOCKS indoor

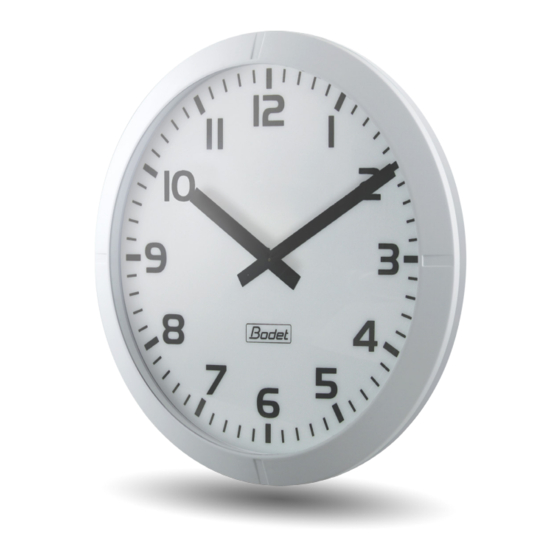

Profil 960 Clock indoor
Horloge Profil 960 intérieure
BODET Time & Sport
1, rue du Général de Gaulle
49340 TREMENTINES I France
Tél. support France: 02.41.71.72.99
Tel. support (intl): +33 241 71 72 33
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Profil 960 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Bodet Profil 960 Series

  • Page 1 Horloge Profil 960 intérieure NTP Receiver Réceptrice NTP Installation and operation manual Manuel d’installation et de mise en service BODET Time & Sport 1, rue du Général de Gaulle 49340 TREMENTINES I France Tél. support France: 02.41.71.72.99 www.bodet-time.com Tel. support (intl): +33 241 71 72 33 When receiving goods please check nothing is broken otherwise make a claim near shipping company.
  • Page 2: Table Of Contents

    Table of contents - Initial checks 1.1 Unpacking the clock 1.2 Cleaning 1.3 Pre-requisit - Installation 2.1 Pre-requisit 2.2 Single sided (SF) clock - Power supply - Setup and initial time setting - Factory configuration - Web interface - Use 6.1 Home 6.2 Network configuration 6.3 Time and synchronisation configuration...
  • Page 3 Table des matières - Vérification initiale 1.1 Déballage de l’horloge 1.2 Nettoyage 1.3 Pré-requis - Installation 2.1 Pré-requis 2.2 Horloge Simple Face (SF) - Alimentation - Mise en service et mise à l’heure - Configuration réseau - Serveur web - Utilisation 6.1 Accueil 6.2 Configuration réseau 6.3 Configuration de l’heure et de la synchronisation...
  • Page 4: I - Initial Checks

    For the commisioning of the clocks you must install «BODET Detect». This software is available on BODET web site www.bodet-time.com as a free download. Note: the Ethernet network connection to which the Bodet clock is connected must be PoE, the power being supplied by a PoE switch or a PoE injector.
  • Page 5: Installation

    - Installation 2.1 Pre-requisit Choose a location where to install the clock, preferably away from sources of electrical interference, such as transformers. Installation and maintenance of this equipment must be carried out by qualified personnel. The clock is connected to the Ethernet (PoE) data network. The equipment must be installed in compliance with standard 802.3af, class 3.
  • Page 6: Power Supply

    ■ Ethernet cable category: 5 minimum or 6. The type of synchronisation will have to be programmed in pages webserver of the clock. Find the MAC address (B) which will be useful during the detection of the clock on the software Bodet Detect to reappoint it.
  • Page 7: Web Interface - Use

    There are two ways to access the web interface: 1/ Open your web browser and enter the IP address of the clock in the address bar. 2/ Using the «BODET Detect», click on the Web browser button to open the web interface (refer to software instructions, 607548).
  • Page 8: Network Configuration

    The information displayed is described below: - MAC Address: this is the clock’s MAC address. This address is unique to each device. This number is given on a label on the back of Bodet clock. - Name: user-defined clock name.
  • Page 9: Time And Synchronisation Configuration

    6.3 Time and synchronisation configuration The Time Configuration page is divided into two parts. One is used to set the time zone, the other to set the synchronisation mode. The information displayed is described below: - Time zone : the drop-down menu can be used to select the appropriate time zone (summer/ winter time changes are automatically managed according to the selected time zone).
  • Page 10 The multicast address of the clients (reveivers) must be the same that the one on which the server broadcasts. By default, the Bodet products transmit or receive using the multicast address: 239.192.54.1 The multicast addresses are included between 224.0.0.0 and 239.255.255.255.
  • Page 11: Alarm Configuration

    6.4 Alarm configuration This page is used to enable monitoring of the clock, and to set which information will be sent as well as the destination server. You can choose which parameter or parameters to define as alarms, and configure them. The information displayed is described below: - Enable SNMP Trap checkbox: enables or disables automatic sending of error messages to the SNMP Manager(s).
  • Page 12 Information: the errors or faults reported are minor and do not in themselves require a visit by a maintenance technician to correct the fault. Warning: the errors or faults reported are serious and require a visit by a maintenance technician to correct the fault. Critical: the errors or faults reported are serious and require a prompt visit by a maintenance technician to correct the fault.
  • Page 13: System

    6.5 System This page is divided into four parts as follows: 1st part: information panel displaying the software version and the elapsed time since the microphone was powered on. 2nd part: a warning message reminds you that once a password is set, a connection can only be established with the product’s web interface by entering the correct password (max 16 characters).
  • Page 14: Technical Characteristics

    - Technical characteristics Synchronisation: RFC 2030 (SNTP V4) compliant, unicast, multicast or via DHCP. Network connection: 10Base-T/100Base-TX. Power supply: PoE or external power supply SELV 12-35 V DC. Operating temperature: from -25°C to +70°C. Protection class: III. Protection index: IP40. Viewing distance: 60 metres Weight: Profil 960 SF = 7,5 kg;...
  • Page 15: What To Do If

    - Gateway: 0.0.0.0 network - DNS: 0.0.0.0 (After 15 minutes, the interface asks an address DHCP server). 2) Use soft « BODET Detect « PC with the button « Network configuration « to define the network parameters of the clock.
  • Page 16: I - Vérification Initiale

    Pour la mise en service des horloges, vous pourrez installer le logiciel «BODET Detect». Ce logiciel est disponible sur le site internet www.bodet-time.com, en téléchargement gratuit. Note : la prise réseau sur laquelle est connectée l’horloge BODET doit être PoE par l’intermédiaire d’un switch PoE ou d’un injecteur PoE.
  • Page 17: Installation

    - Installation 2.1 Pré-requis Choisir l’emplacement où sera installée l’horloge en privilégiant un endroit exempt de parasites électriques (transformateur, ...). L’installation et l’entretien de ce matériel doivent être réalisés par une personne habilitée. L’horloge est raccordée au réseau informatique Ethernet PoE. L’installation doit être conforme à la norme 802.3af, classe 3.
  • Page 18: Alimentation

    ■ La Led jaune est allumée en permanence lorsque vous effectuez une localisation de l’horloge depuis le logiciel Bodet Detect. - Configuration réseau Par défaut la configuration réseau est la suivante : ■Configuration IP par DHCP.
  • Page 19: Serveur Web - Utilisation

    1) Ouvrir une page du navigateur internet puis dans la barre de recherche, entrer l’adresse IP de l’horloge (Par exemple : 192.0.1.128). 2) Utiliser le logiciel BODET Detect puis cliquer sur Web browser pour ouvrir le serveur web (se reporter à la notice du logiciel, 607548).
  • Page 20: Configuration Réseau

    IP dans le navigateur au profit d’un numéro ou appellation définie par l’utilisateur. Exemple : www.bodet.com étant plus simple à retenir que 172.17.10.88. Le bouton Save and Reboot permet de sauvegarder les données modifiées dans l’horloge...
  • Page 21: Configuration De L'heure Et De La Synchronisation

    6.3 Configuration de l’heure et de la synchronisation Cette page est divisée en deux parties : l’une permet de configurer le fuseau horaire et l’autre le mode de synchronisation. Ci-dessous le descriptif des informations affichées : - Time zone : à l’aide du menu déroulant, il est possible de choisir le fuseau horaire (la gestion de l’heure été/hiver est automatique en fonction de la zone horaire sélectionnée).
  • Page 22 Multicast : Dans ce cas, c’est le serveur NTP qui diffuse l’heure sur l’adresse de type multicast qu’il lui a été renseigné. L’adresse multicast des clients doit être identique à celle diffusée par le serveur. Par défaut les produits Bodet émettent et reçoivent sur l’adresse multicast :239.192.54.1 Les adresses multicast sont comprises entre 224.0.0.0 et 239.255.255.255.
  • Page 23: Configuration Des Alarmes

    6.4 Configuration des alarmes Cette page permet d’activer la supervision de l’horloge, de définir les informations qui seront transmises et le serveur de destination. Il est possible de sélectionner le ou les paramètres à définir comme alarmes et de les configurer. Ci-dessous le descriptif des informations affichées : - Case à...
  • Page 24 Information : les informations remontées sont mineurs et ne nécessitent pas expressément la visite d’un technicien de maintenance pour corriger le défaut. Warning : les erreurs ou défauts remontés sont importants et nécessitent la visite d’un technicien de maintenance pour corriger le défaut. Critic : les erreurs ou défauts remontés sont graves et nécessitent rapidement la visite d’un technicien de maintenance pour corriger le défaut.
  • Page 25: Système

    6.5 Système Cette page est divisée en quatre parties qui sont les suivantes : 1ère partie : présentation de la version du programme (firmware) ainsi que la durée de fonctionnement depuis la dernière mise sous tension de l’horloge. 2ème partie : un message de prévention indique qu’une fois défini, il est obligatoire d’utiliser le bon mot de passe pour établir la connexion avec le serveur web.
  • Page 26: Caractéristiques Techniques

    - Caractéristiques techniques Synchronisation : conforme RFC2030 (SNTP V4), mode unicast, multicast ou via DHCP. Connexion réseau : 10Base-T/100Base-TX. Alimentation : PoE ou par un bloc alim TBTS 12 à 35VDC. Température de fonctionnement : de -25 °C à +70 °C. Classe de protection : III.
  • Page 27: Que Faire Si

    - IP : 172.17.30.110 - MASK : 255.255.0.0 - Pas de serveur DHCP sur - PASSERELLE : 0.0.0.0 le réseau - DNS : 0.0.0.0 2) Utiliser soft PC «BODET Detect» avec le bouton «Network configuration» pour définir les paramètres réseau de l’interface.
  • Page 28 This document concerns the following products : 933F11 Profil 960 Intérieure (affichage : chiffres) Profil 960 Indoor (Dial type : figure) 933F21 Profil 960 Intérieure (affichage : traits) Profil 960 Indoor (Dial type : notch) © 2016 BODET SA. Tous droits réservés. All rights reserved.
