Clock
Profil 960
For in do or or out do or mo dels
INSTALLATION AND OPERATING INSTRUCTIONS
B.P. 1
49340 TRÉMENTINES
FRANCE
Tél. : 02 41 71 72 00
Fax : 02 41 71 72 01
www.bodet.com
Réf. : 605775 K
When receiving goods please chek nothing is broken otherwise make a claim near shipping company.

Advertisement

Table of Contents
loading

Related Manuals for Bodet Profil 960

Summary of Contents for Bodet Profil 960

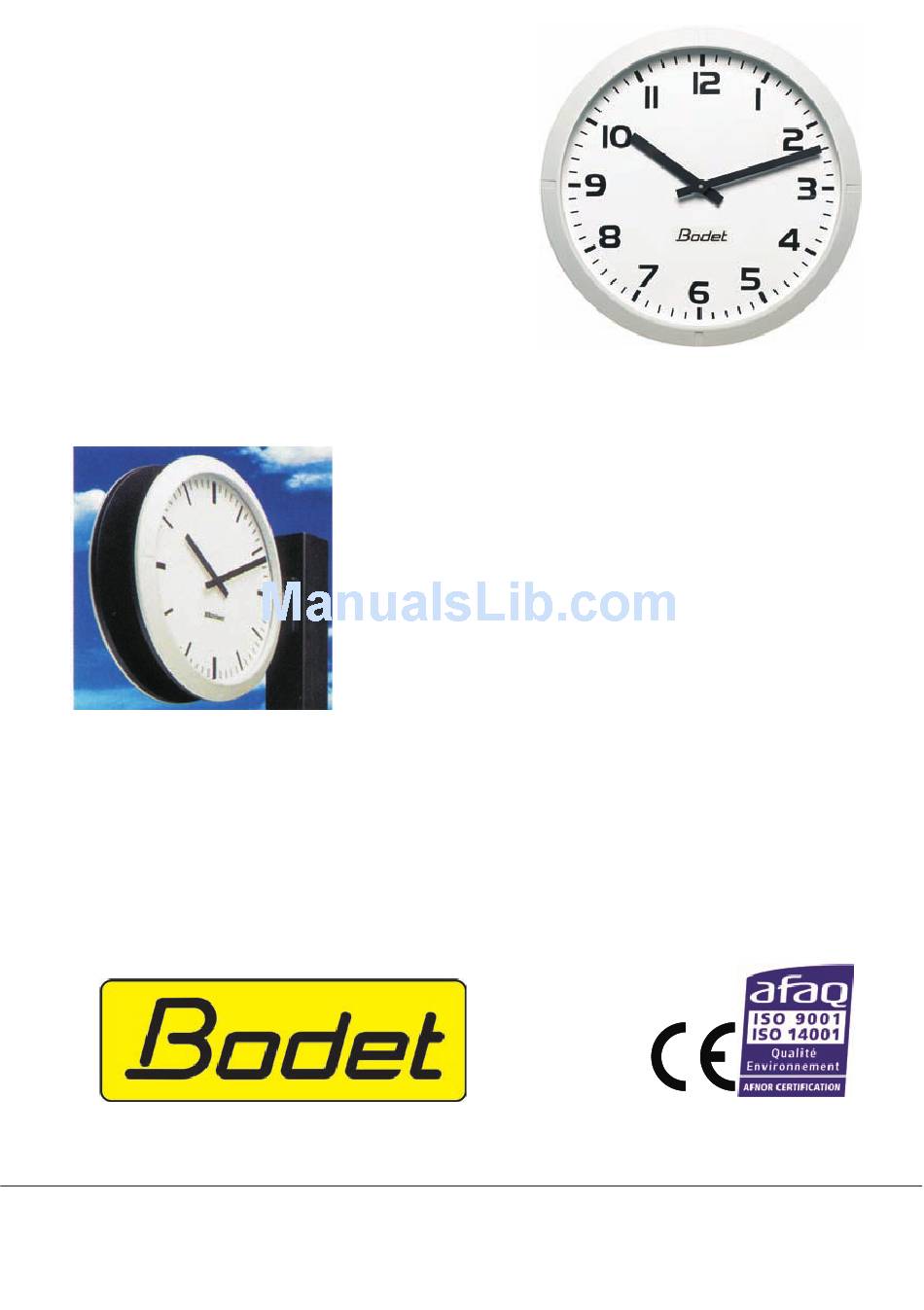

  • Page 1 Clock Profil 960 For in do or or out do or mo dels INSTALLATION AND OPERATING INSTRUCTIONS B.P. 1 49340 TRÉMENTINES FRANCE Tél. : 02 41 71 72 00 Fax : 02 41 71 72 01 www.bodet.com Réf. : 605775 K...

  • Page 2: Table Of Contents

    Table of contents I - INITIAL VERIFICATION ..... . 3 1.1 Un pack ing the clock ....... 3 1.2 Clean ing .

  • Page 3: I - Initial Verification

    I - INITIAL VERIFICATION Thank you for choosing a BODET clock. This product has been carefully designed for your satisfaction based on ISO9001 quality requirements. We advise you to read this manual thoroughly before attempting to manipulate the clock. Keep this booklet during all the life of your clock, so that you can refer to it each time it is necessary.

  • Page 4: Cleaning

    impulses on a serial ligne ; it is powered by 240 VAC, with a servo second hand. REC MN 1V5 = the clock is a receiver driven by a control unit “Remote keyboard” or radio synchronised control unit “BT radio” that sends minute impulses. RAD DHF = the clock is radio-synchronised by a DHF transmitter and battery supplied.

  • Page 5: Single Face Outdoor Clock

    2.2 Single Face outdoor clock - Open the clock by giving the 2 screws (3) a quarter turn with the key (1), and then pull the whole dial towards you (hinge arm opening). The hinge arm opening system ensures a fast and secure maintenance of the lighting without having to put the front part of the clock on the ground.

  • Page 6: Double Face Integrated Clock

    2.3.1. Double Face integrated clock Drill the support (wall, pillar, ...) to the required dimensions and fix the bracket. Ø9 - Unscrew by 10 mm the 2 bolts (B) on each face. - Remove each face by rotating them anticlockwise (for receiver clocks, Do Not forget to disconnect the 2 movements).

  • Page 7: Clock On Keyboard

    2.3.2 Clock on keyboard - Drill the support (wall, pillar, ...) to the required dimensions and then fix the bracket. Ø9 - If necessary, carry out the various connections (external supply : page 8 and connection to time distribution network : page 12).

  • Page 8: Power Supply

    III - POWER SUPPLY Installation and maintenance of this equipment must be carried out by qualified personnel only. Electrical installation must comply with current standard CEI 364. (NF C15-100 in France for example). The mains supply for the clocks must include a neutral phase circuit breaker 10A C curb, rapidly accessible.

  • Page 9: Afnor Hm Clock Low Voltage 6/24V

    3.3. AFNOR HM clock low voltage 6/24V Connect the low voltage (TBT) power supply (6 to 24V AC or DC) to the connectors 1 and 2: maximum 1,5 mm2 wire section (5mm bare). It is compulsory, for a correct running, to respect the following parameters. These parameters are calculated considering 8/10 mm wire section with 1A (Microquartz Delta).

  • Page 10: Independent Quartz Clock On Mains

    3.5. Independent Quartz clock on mains : Single Face. – Connect mains supply (230VAC) to the terminal (20) of the power supply unit (ref.933006). – Connect the impulses line between the terminal (22) of the power supply unit and the terminal (2) of the clock. The time base is protected by a 0,2AT / 250V fuse (21).

  • Page 11: Lighting Connection

    3.7. Lighting connection A 10 A fuse or circuit breaker for the lighting power supply should be installed and switched off prior to any maintenance in the clock. – Connect lighting supply 230V + earth (0,55A) on the terminal (2), the earth Lighting wire must be longer than the other 230V + earth...

  • Page 12: Operating And Time Setting

    IV - OPERATING AND TIME SETTING NOTA : to respect the security rules, the time distribution network must be be SELV-type. - The impulses wires should be assembled together near their connecting terminal. 4.1. Impulses slave clock A time distribution network emits only impulses, so that it is necessary to set the clock at the time of this network.

  • Page 13: ½ Minute And Minute Serial Receiver

    4.1.2. ½ minute and minute serial receiver, - Connect the time distribution network to terminals 1 and 2 on the terminal strip (3). - The terminal 3 of the terminal strip (3) is available. You can use it to connect a double side clock following the diagram opposite.

  • Page 14: Afnor/Irig-B Time Signal Reception

    4.2. AFNOR/IRIG-B time signal reception Operating principle of AFNOR HM receiver clock : During 1 hour without reception of the time signal the clock operates with its own time basis. If the signal recovery is achieved within this hour, the clock will be resynchronised automatically.

  • Page 15: France Inter Radio Receiver Clock

    4.3. France Inter radio receiver clock Antenna connection : Connect the 2 wires of the antenna on the FI and GND terminal. Caution: to avoid interferences due to high voltage lighting, the wire between the cable gland and the terminal must be as short as possible. Check that the dip switch (15) is in France-Inter receiver position, push toward the down of the PCB.

  • Page 16: Independent Quartz On Mains With Remote Keyboard

    4.5. Independent Quartz on mains with remote keyboard See the booklet of the remote keyboard, reference : 605198. Attention : in case of a double face clock, check that the Dip switch (6) of the remote keyboard is in “DF” position.

  • Page 17: Technical Features

    V - TECHNICAL FEATURES Readability : 60m. Dimensions : Profil 960 Indoor Profil 960 Outdoor Ø 660 Profil 960 Double face Indoor Double Face integrated Outdoor: Ø660 Ø660 Mounting on bracket - Outdoor clocks...
  • Page 18 France Inter radio receiver clock with synchronous second hand : Permanent power supply : 230V; 70mA. Accuracy : absolute with automatic summer/winter changeover. The electronic of the clock is protected by 2 fuses 2A/250V. Receiver radio DHF : Power supply : 2x 1,5V LR14 batteries. Autonomy : >...
  • Page 19 Supply Operating Protection Weight temperatures index -10°C to +50°C IP401 6,5 kg Profil 960 I HM minute // and ½ minute serial receiver -25°C to +70°C IP537 15,2 kg Profil 960E HM minute // and ½ minute serial receiver -25°C to +70°C...

  • Page 20: What To Do If

    VI - WHAT TO DO IF...? ...CHECK. What to do if...? … Check. – The clock (powered by battery) – The battery has run out. Replace the battery. had stopped. Resetting of the time is, automatic for radio synchronised clocks, manual for independent clocks.
