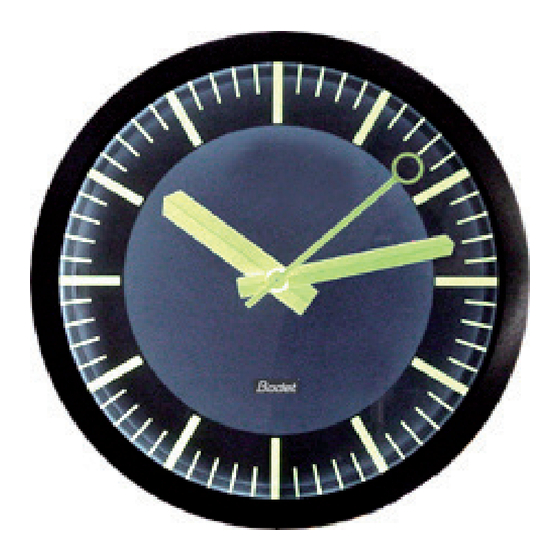

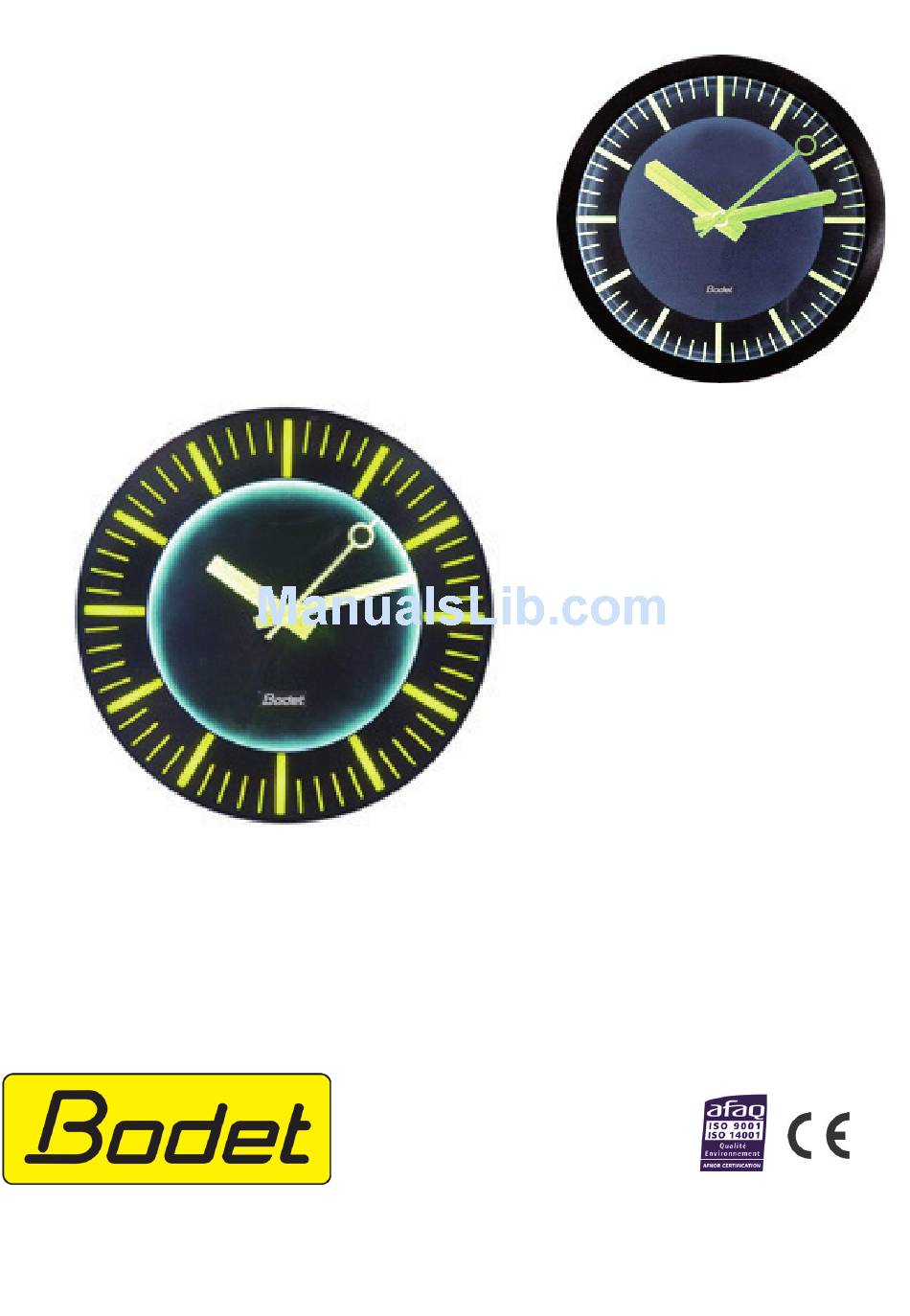

Clock
Profil TGV 950
Profil TGV 970
INSTALLATION AND OPERATING INSTRUCTIONS
Upon receipt, always check the product for damage during shipment. If any is found, you may file a damage
B.P. 1
49340 TRÉMENTINES
FRANCE
Tél. : 02 41 71 72 00
Fax : 02 41 71 72 02
www.bodet.com
claim with the carrier
Receiver minute, ½
minute impulses
IRIG B/AFNOR time
signal reception
France-Inter radio
synchronisation
Réf.: 605732 E
1
Advertisement
Table of Contents
Related Manuals for Bodet Profil TGV 950
Summary of Contents for Bodet Profil TGV 950
- Page 1 Clock Profil TGV 950 Profil TGV 970 Receiver minute, ½ minute impulses IRIG B/AFNOR time signal reception France-Inter radio synchronisation INSTALLATION AND OPERATING INSTRUCTIONS B.P. 1 49340 TRÉMENTINES FRANCE Tél. : 02 41 71 72 00 Fax : 02 41 71 72 02 www.bodet.com...
-
Page 2: Table Of Contents
Table of contents I - INITIAL VERIFICATION 1.1 Unpacking the clock 1.2 Cleaning II - INSTALLATION 2.1 Clock setting up 2.2 Setting the antenna III - SETTING IN OPERATION 3.1 External supply connection 3.2 Clock connections and time setting 3.2.1. Impulses slave clock 3.2.2. -
Page 3: I - Initial Verification
I - INITIAL VERIFICATION Thank you for choosing a BODET clock. This product has been carefully designed for your satisfaction based on ISO9001 quality requirements. We advise you to read this manual thoroughly before attempting to manipulate the clock. Keep this booklet during all the life of your clock, so that you can refer to it... -
Page 4: Cleaning
Versions : a label inside the clock specifies what model the clock is : AFNOR/FI HMS or AF/FI HMS = the clock is a receiver driven by : a master clock that sends AFNOR NFS-87500A coded time messages or a radio France Inter receiver antenna, and supplied in 240 VAC, with a servo second hand. -
Page 5: Installation
II - INSTALLATION Select the place where the clock will be installed while making sure that radio reception is correct for radio synchronisation models. TGV 950 clock 24 holes Ø8,20 24 trous Ø 8,20 Ø 270 Ø 230 Ø 140 TGV 970 clock 24 holes Ø11 24 trous Ø... -
Page 6: Clock Setting Up
2.1 Clock setting up - Open the clock by giving the lock a quarter turn with the key (5). - On the TGV950 clock, remove the 2 locking srews (3) (provided for the transit). - Pull the whole dial (1) towards you. The hinge arm opening system ensures a fast and secure maintenance of the lighting without having to put the front part of the... -
Page 7: Setting The Antenna
2.2 Setting the antenna For radio synchronised clocks : The best reception conditions are outside buildings or near windows. Positioning the antenna (perpendicular to the direction of the transmitter) improves reception. The antenna must not be placed on a metal support. As for any radio system, a building with metal structures can cause interference in the reception of the signal. -
Page 8: Setting In Operation
III - SETTING IN OPERATION 3.1 External supply connection Installation and maintenance of this equipment must be carried out by qualified personnel only. Electrical installation must comply with current standard CEI 364. (NF C15- 100 in France for example). The mains supply for the clocks must include a neutral phase circuit breaker 10A C curb, rapidly accessible. -
Page 9: Clock Connections And Time Setting
3.2 Clock connections and time setting NOTA : to respect the security rules, the time distribution network must be be SELV-type. - The impulses wires should be assembled together near their connecting terminal. 3.2.1. Impulses slave clock A time distribution network emits only impulses, so that it is necessary to set the clock at the time of this network. - Page 10 ½ minute serial receiver, Impulses - Connect the time distribution network to terminals 1 and 2 on the terminal strip. - The terminal 3 of the terminal strip is available. You can use it to connect a double side clock. To insure the continuation of the serial distribution network, (to avoid to cut the serial line when a slave clock is disconnect) connect a resistor according to...
-
Page 11: Afnor/Irig-B Time Signal Reception
3.2.2. AFNOR/IRIG-B time signal reception - Connect the time signal network to the terminals 1 and 2 of the AFNOR receiver card. Check that the dip switch (15), is pushed towards top on the PCB (AFNOR reception). AFNOR input The AFNOR/IRIG-B HMS clocks can be set on time manually : - At the first press on button “time setting”... -
Page 12: France Inter Radio Receiver Clock
3.2.3. France Inter radio receiver clock Antenna connection : Connect the 2 wires of the antenna on the FI and GND terminal. Check that the dip switch (15) is in France- Inter receiver position, push toward the down of the PCB. When switching on power supply, hands are set at 12.00 until the correct reception of the time signal is achieved or a manual setting... -
Page 13: Technical Features
IV - TECHNICAL FEATURES Power supply : 230 Volt 50 Hz ±10% Operating temperatures : -25°C to +70°C Protection index : IP55 TGV 950 Readability : 40m. Weight : 9 kg. Consumption : 60 VA. Sizes : Double face clock 24 holes Ø8,20 24 trous Ø... -
Page 14: Tgv 970
TGV 970 Readability : 50m. Weight : 16 kg Consumption : 100 VA. Sizes : Double face clock 24 holes Ø11 24 trous Ø 11 on Ø430 sur un Ø430 Ø 470 Disk for hanging bracket or Single face suspension on a chain clock Lighting : long life néon tube, 50mA 1500V. - Page 15 France Inter radio receiver clock with synchronous second hand : Permanent power supply : 230V; 70mA. Schéma d’alimentation secteur : TT ou TN. Accuracy : absolute with automatic summer/winter changeover. The electronic of the clock is protected by 2 fuses 2A/250V. Receiver impulses Minute 24V // HM : Reversed polarised minutes impulses 9,6 mA.
-
Page 16: What To Do If
V - WHAT TO DO IF...? ...CHECK. What to do if...? … Check. ■ No synchronisation after ■ Check that the type of signal send by the installation. the master clock (min, ½ min, AFNOR/ Irig-B) is in accordance with the type programmed in the clock.
