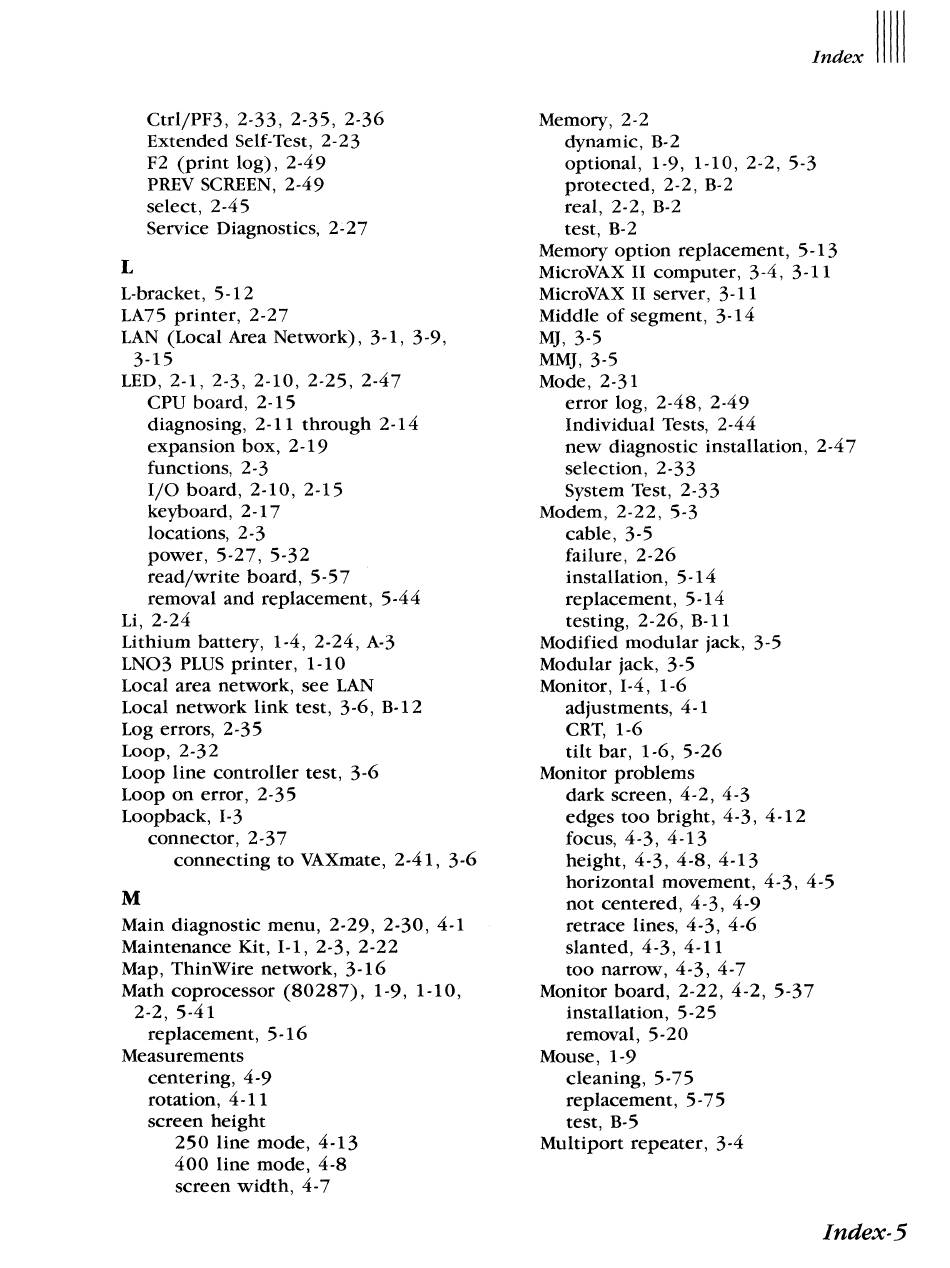

DEC VAXmate Service Manual page 237

L
Ctrl/PF3, 2-33, 2-35, 2-36
Extended Self-Test, 2-23
F2 (print log), 2-49
PREY SCREEN, 2-49
select, 2-45
Service Diagnostics, 2-27
L-bracket, 5-12
LA75 printer, 2-27
LAN (Local Area Network), 3-1, 3-9,
3-15
LED, 2-1, 2-3, 2-10, 2-25, 2-47
CPU board, 2-15
diagnosing, 2-11 through 2-14
expansion box, 2-19
functions, 2 -3
I/O board, 2-10, 2-15
keyboard, 2-17
locations, 2-3
power, 5-27, 5-32
read/write board, 5-57
removal and replacement, 5-44
Li, 2-24
Lithium battery, 1-4, 2-24, A-3
LN03 PLUS printer, 1-10
Local area network, see LAN
Local network link test, 3-6, B-12
Log errors, 2-35
Loop, 2-32
Loop line controller test, 3-6
Loop on error, 2-35
Loopback, 1-3
connector, 2-37
connecting to VAXmate, 2-41, 3-6
M
Main diagnostic menu, 2-29, 2-30,4-1
Maintenance Kit, 1-1, 2-3, 2-22
Map, ThinWire network, 3-16
Math coprocessor (80287), 1-9, 1-10,
2-2,5-41
replacement, 5-16
Measurements
centering, 4-9
rotation, 4-11
screen height
250 line mode, 4-13
400 line mode, 4-8
screen width, 4-7
Index
IIIII
Memory, 2-2
dynamic, B-2
optional, 1-9, 1-10, 2-2, 5-3
protected, 2-2, B-2
real, 2-2, B-2
test, B-2
Memory option replacement, 5-13
MicroVAX II computer, 3-4, 3-11
MicroVAX
II
server, 3-11
Middle of segment, 3-14
MJ,3-5
MMJ, 3-5
Mode, 2-31
error log, 2-48, 2-49
Individual Tests, 2-44
new diagnostic installation, 2-47
selection, 2-33
System Test, 2-33
Modem, 2-22, 5-3
cable, 3-5
failure, 2-26
installation, 5-14
replacement, 5-14
testing, 2-26, B-ll
Modified modular jack, 3-5
Modular jack, 3-5
Monitor, 1-4, 1-6
adjustments, 4-1
CRT, 1-6
tilt bar, 1-6,5-26
Monitor problems
dark screen, 4-2, 4-3
edges too bright, 4-3,4-12
focus, 4-3, 4-13
height, 4-3, 4-8, 4-13
horizontal movement, 4-3, 4-5
not centered, 4-3, 4-9
retrace lines, 4-3, 4-6
slanted, 4-3, 4-11
too narrow, 4-3, 4-7
Monitor board, 2-22,4-2,5-37
installation, 5-25
removal, 5-20
Mouse, 1-9
cleaning, 5-75
replacement, 5-75
test, B-5
Multiport repeater, 3-4
Index-5
