INSTALLATION INSTRUCTIONS
Isle
®
Single Lever
Kitchen Faucet
Model D35409000
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Adjustable Wrench

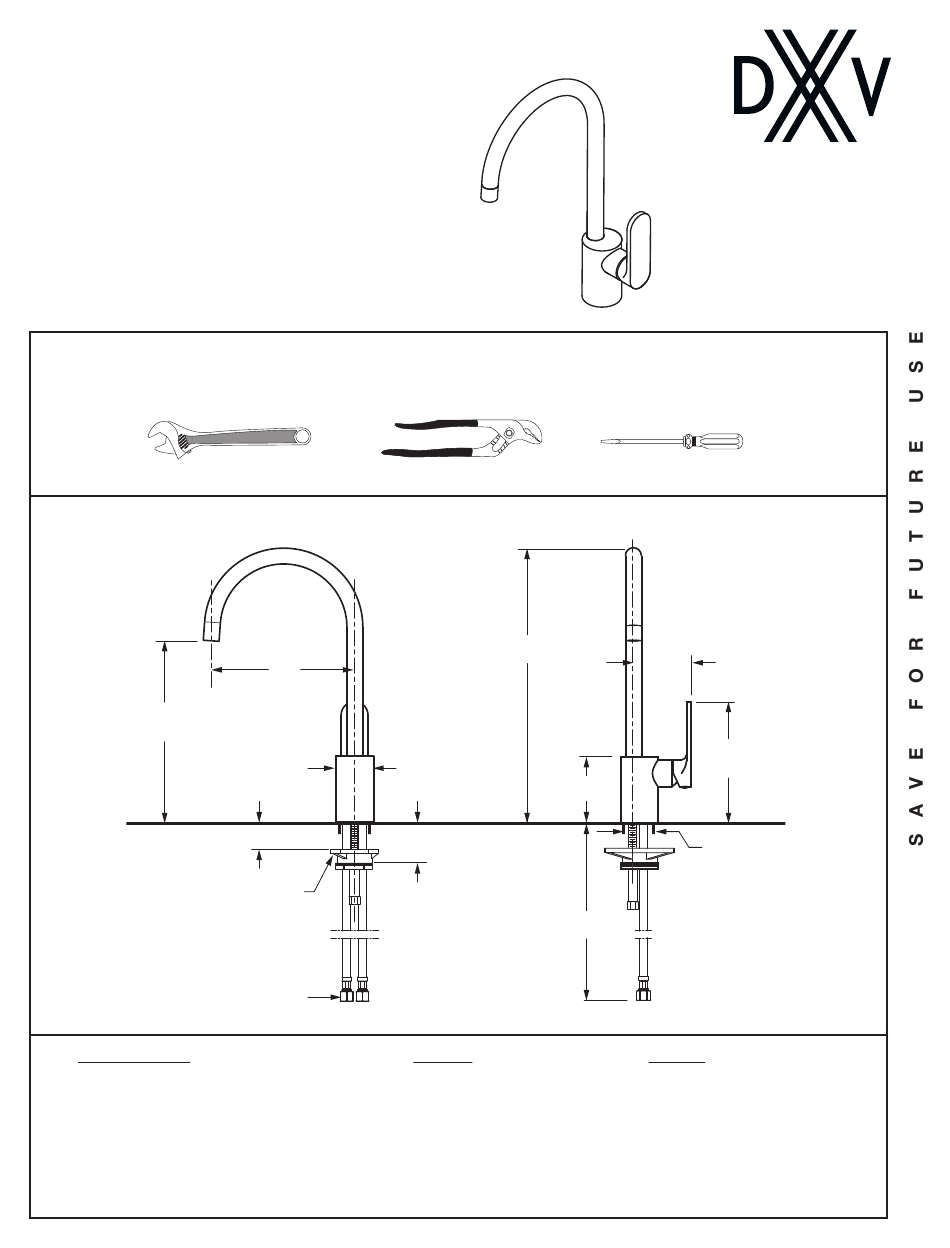

ROUGHING-IN DIMENSIONS:
• For reference
9"
(229 mm)
REINFORCED SUPPORT
3/8" (10 mm) COMPRESSION SUPPLIES
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
7-5/8"
(193 mm)
1-7/8"D.
(48 mm)
1-5/16" MAX.
2" MAX.
(33.5 mm)
(50 mm)
Channel Locks
13-5/8"
(346 mm)
3-1/4"
(83 mm)
19-11/16"
(510 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
Flat Blade Screwdriver
3"
(75 mm)
6"
(152 mm)
1-1/4" D.
(32 mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965573 Rev. 1.3 (4/17)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DXV Isle D35409000
Summary of Contents for DXV Isle D35409000
- Page 1 ® Single Lever Kitchen Faucet Model D35409000 Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
- Page 2 INSTALL FAUCET Turn off hot and cold water CAUTION supplies before beginning. • Seat SEAL (1) into under side of FAUCET BASE (2). Fig. A. • Feed FAUCET SUPPLIES (3), and MOUNTING STUD (4) through the mounting hole of mounting surface. Fig. A. •...
- Page 3 TEST INSTALLED FAUCET • With HANDLE (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks. • Remove AERATOR (3). • Operate HANDLE (1) to flush water lines thoroughly. • Replace AERATOR (3). COLD REMOVE SERVICE Clogged CARTRIDGE outlets or inlets may cause reduced flow.
- Page 4 Isle ® Single Control Kitchen Faucet MODEL NUMBER D35409000 Replace the “YYY” with appropriate finish code POLISHED CHROME ULTRA STEEL M964784-0070A CARTRIDGE M964783-YYY0A M964787-YYY0A CARTRIDGE COVER AERATOR KIT M964508-0070A CARTRIDGE COVER NUT KEY M964825-0070A O-RING M964782-YYY0A HANDLE KIT M964827-0070A SUPPORT PLATE M964777-0070A MOUNTING KIT M965573 Rev.
