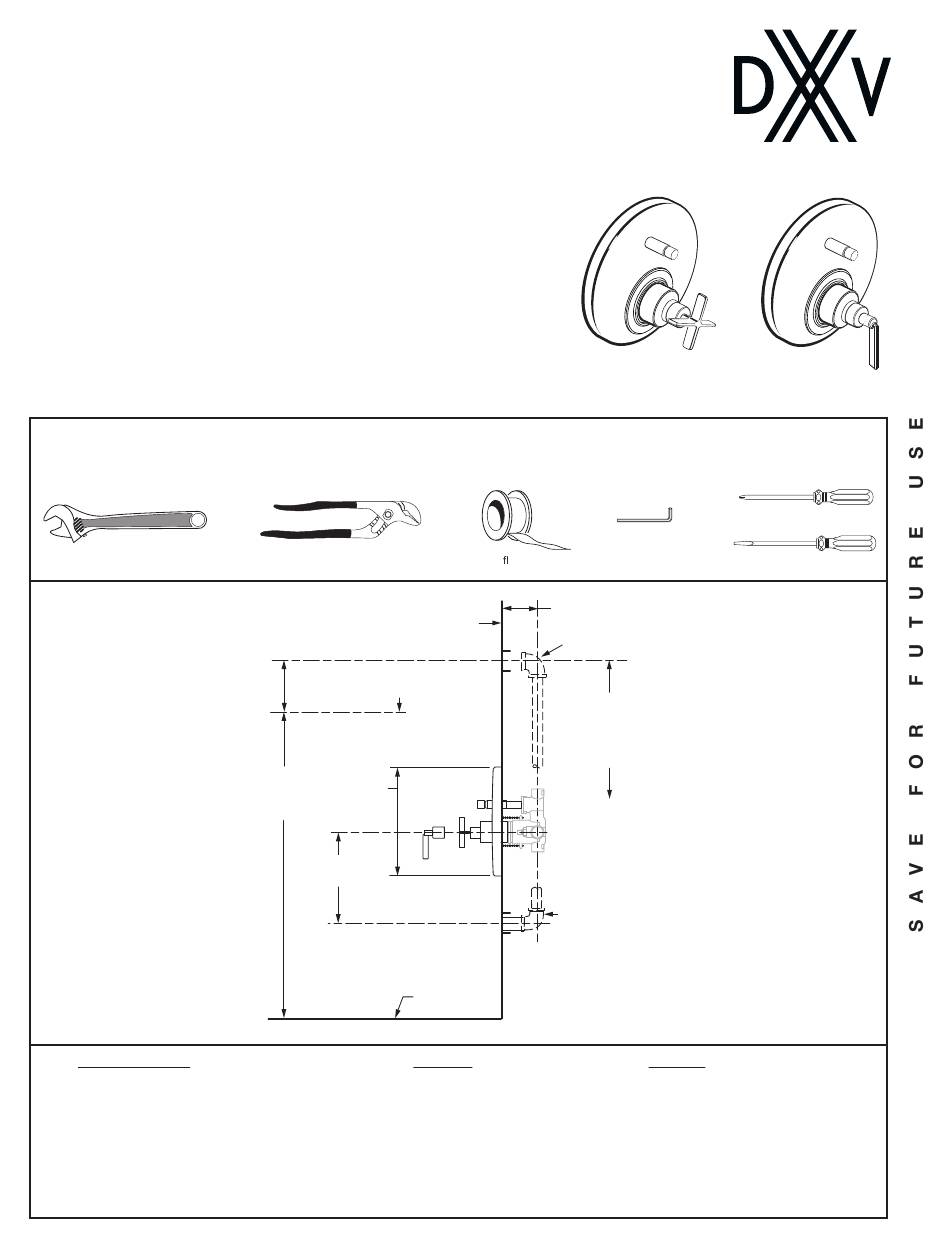

INSTALLATION INSTRUCTIONS
®
Percy
Pressure Balanced Tub/Shower
Diverter Valve Trim Kit
Cross Handle
Model D35105640
Cylinder Handle
Model D35105600
To be used with D35000600.191
Rough Valve for Pressure Balanced Tub/Shower
Thank you for selecting DXV. To ensure that your installation proceeds smoothly,
please read these instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Adjustable Wrench
ROUGHING-IN DIMENSIONS:
• For reference
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Channel Locks
FINISHED WALL
BOTTOM OF
SHOWERHEAD
74"
(1879 mm)
7-5/16" D.
FOR HEAD
CYLINDER
(185 mm)
HANDLE
CLEARANCE
18" OPTIONAL
(457 mm)
BOTTOM OF
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
Hex Wrench
Te on Tape
1-5/8" TO 3-1/4"
(41 mm to 83 mm)
1/2" (13 mm) NPT
OPTIONAL TO
FINISHED FLOOR
USUALLY
BETWEEN
72'' AND 84"
(1828 mm to 2133 mm)
SHW
TUB
CROSS
HANDLE
1/2" (13 mm) NPT
TUB
- 1 -
Phillips Screwdriver
(Supplied)
Flat Blade Screwdriver
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965628 Rev. 1.7 (5/17)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DXV Percy D35105640
Summary of Contents for DXV Percy D35105640
- Page 1 Model D35105600 To be used with D35000600.191 Rough Valve for Pressure Balanced Tub/Shower Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
- Page 2 INSTALL DIVERTER DIVERTER Turn off hot and cold water PORT CAUTION supplies before beginning. • When finished tiling the wall, remove PLASTER GUARD (1). Remove two screws that secure the DIVERTER LID (2) and remove lid. Inspect the inside surface of diverter port. Diverter port must be free of any dirt. Clean if necessary.
- Page 3 ADJUST HOT LIMIT STOP (MUST BE DONE PRIOR TO TRIM INSTALLATION) By restricting HANDLE rotation and limiting the amount of hot water allowed to mix with the cold, the HOT LIMIT SAFETY STOP (1) reduces risk of accidental scalding. To set the maximum hot water temperature of your faucet, all you need to do is adjust the setting on the HOT LIMIT SAFETY STOP (1).
- Page 4 ® Percy Pressure Balanced Tub/Shower Diverter Valve Trim Kit MODEL NUMBERS Cross Handle D35105640 Cylinder Handle D35105600 Replace the “YYY” with appropriate finish code POLISHED CHROME CARBON BRONZE H960684.191 H960686.XXX DIVERTER DIVERTER CAP M964444-YYY0A DIVERTER KNOB M964753-YYY0A TRIM PLATE WITH SCREWS M964527-0070A TRIM PLATE HOLDER KIT H960685.XXX...
