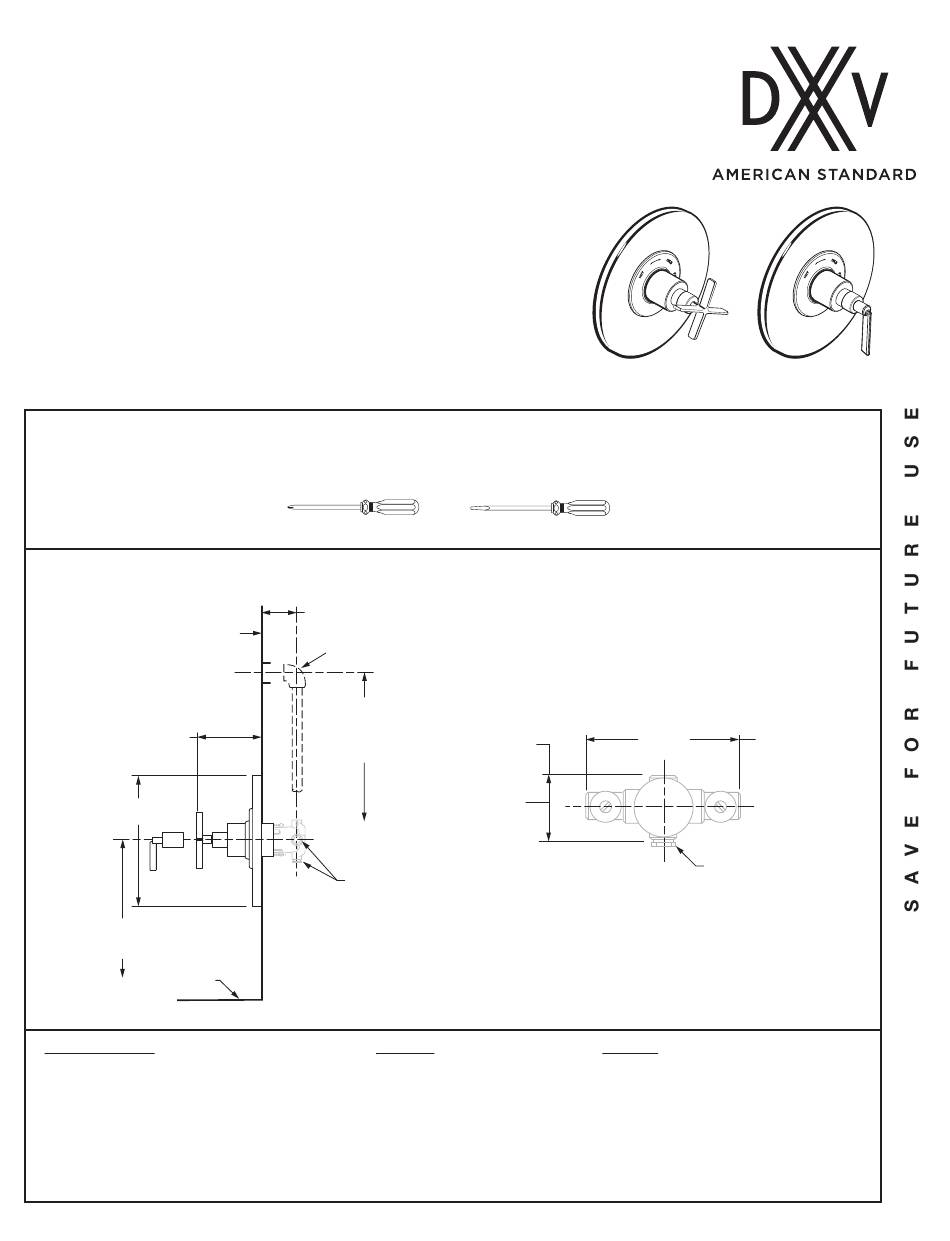

INSTALLATION INSTRUCTIONS
Percy
Pressure Balanced
™
Shower Valve Trim Kit
Cross Handle
Model D35105540
Cylinder Handle
Model D35105500
To be used with D35000500.191
Pressure Balanced Shower Valve
Thank you for selecting DXV by American Standard. To ensure that your
installation proceeds smoothly, please read these instructions carefully
before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing,
supply stores. It is essential that the tools and materials be on hand before work is begun.
ROUGHING-IN DIMENSIONS:
• For reference
FINISHED WALL
3" TO 4"
(76 TO 102mm)
HANDLE
7-5/16" D.
(213mm)
CY
HANDLE
48" to 54"
(1219 to 1372mm)
OPTIONAL
BOTTOM OF
SHOWER OR TUB
In the United States:
DXV by American Standard
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2013
Phillips Screwdriver
1-5/8" TO 3-1/4"
(41mm TO 83mm)
1/2" (13mm) I.P.S.
OPTIONAL TO
FINISHED FLOOR
USUALLY BETWEEN
72'' to 84''
(1828 to 2133mm)
CROSS
"SEE
ILLUSTRATION"
In Canada:
DXV by American Standard
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax:
www.DXV.ca
Regular Screwdriver
OUTLETS
1/2"
(13mm)
NPT
3-3/8"
(86mm)
1-800-395-1498
- 1 -
5-7/8"
INLETS
(149mm)
1/2" NPT
1/2" NPT PLUG
THREADED INLETS (STOPS)
In Mexico:
DXV by American Standard
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M9 6 55 2 7 Re v. 1 .6
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DXV Percy D35105500
Summary of Contents for DXV Percy D35105500
- Page 1 Cylinder Handle Model D35105500 To be used with D35000500.191 Pressure Balanced Shower Valve Thank you for selecting DXV by American Standard. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing, supply stores.
- Page 2 INSTALL VALVE TRIM CAUTION Turn off water at main supply. • Figure 1. When nished tiling the wall, remove PLASTER GUARD (1). VALVE CARTRIDGE • Push CARTRIDGE CAP (2) over VALVE CARTRIDGE until seated against stop. • Install ATTACHMENT SCREW (3) and tighten to secure CARTRIDGE CAP (2) to valve.
- Page 3 ADJUST HOT LIMIT STOP (MUST BE DONE PRIOR TO TRIM INSTALLATION) By restricting HANDLE rotation and limiting the amount of hot water allowed to mix with the cold, the HOT LIMIT SAFETY STOP (1) reduces risk of accidental scalding. To set the maximum hot water temperature of your faucet, all you need to do is adjust the setting on the HOT LIMIT SAFETY STOP (1).
- Page 4 Percy ™ Pressure Balanced Shower Valve Trim Kit MODEL NUMBERS Cross Handle D35105540 Cylinder Handle D35105500 Replace the "YYY" or "XXX" with appropriate nish code POLISHED CHROME BRUSHED NICKEL M964656-YYY0A TRIM PLATE WITH SCREWS M964654-0070A TRIM PLATE HOLDER H960685.XXX ESCUTCHEON SCREWS M964749-YYY0A HANDLE BASE M964697 -YYY0A...
