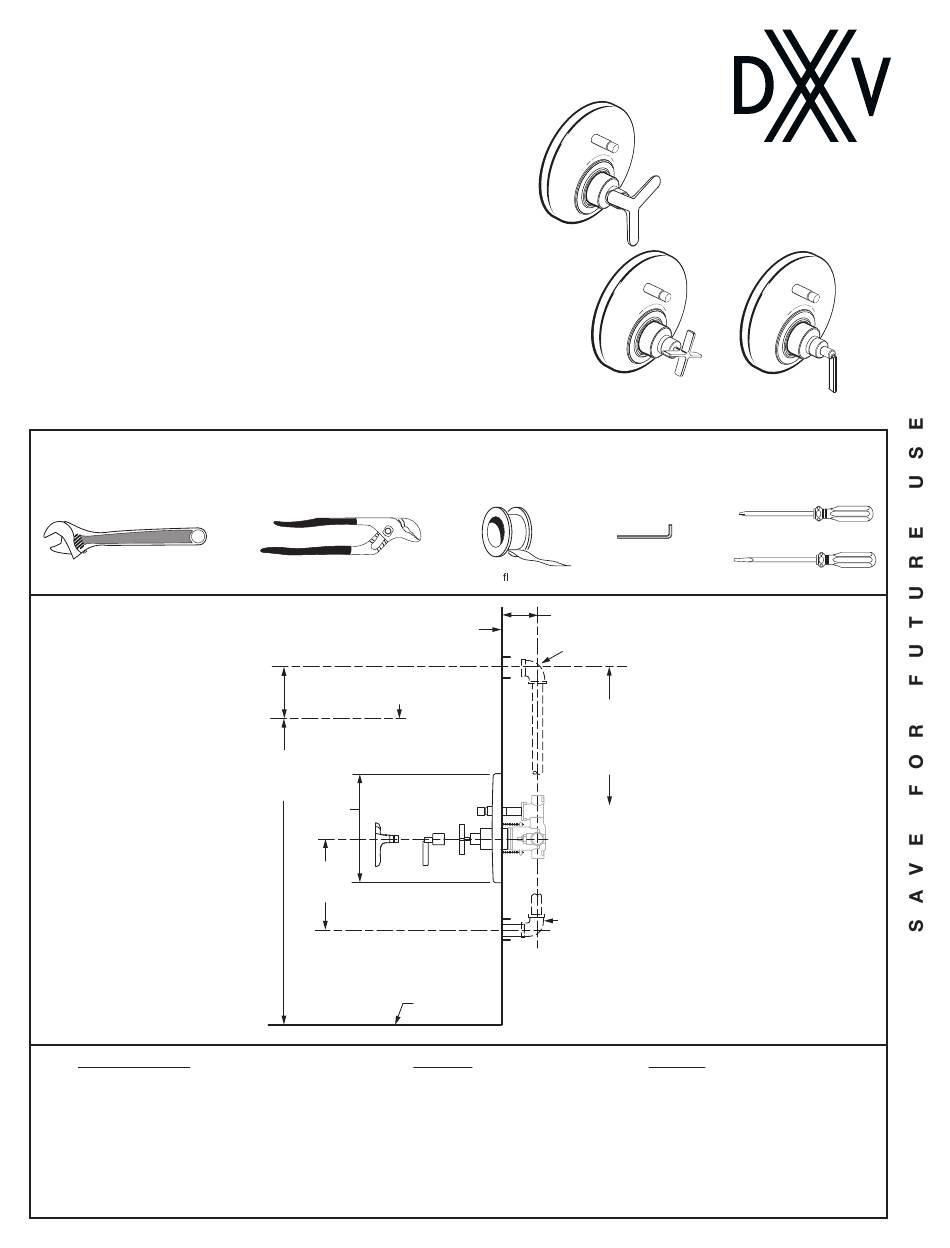

INSTALLATION INSTRUCTIONS
Percy
®
Pressure Balanced Tub/Shower
Diverter Valve Trim Kit
Tri-Spoke Handle
Models D35105670
Cross Handle
Models D35105640, D35105640RB
Cylinder Handle
Models D35105600, D35105600RB
To be used with D35000600.191
Rough Valve for Pressure Balanced Tub/Shower
Thank you for selecting DXV. To ensure that your installation proceeds smoothly,
please read these instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work has begun.
Adjustable Wrench
ROUGHING-IN DIMENSIONS:
• For reference
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Channel Locks
FINISHED WALL
BOTTOM OF
SHOWERHEAD
74"
(1879 mm)
FOR HEAD
CLEARANCE
TRI-SPOKE
7-3/16" D.
HANDLE
HANDLE
(183 mm)
CYLINDER
18"
OPTIONAL
(457 mm)
BOTTOM OF
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
D35105640
D35105640RB
Hex Wrench
Te on Tape
1-5/8" TO 3-1/4"
(41 mm to 83 mm)
1/2" (13 mm) NPT
OPTIONAL TO
FINISHED FLOOR
USUALLY
BETWEEN
72'' AND 84"
(1828 mm to 2133 mm)
SHW
CROSS
TUB
HANDLE
1/2" (13 mm) NPT
TUB
- 1 -
D35105670
D35105600
D35105600RB
Phillips Screwdriver
(Supplied)
Flat Blade Screwdriver
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965628 Rev. 2.1 (4/18)
