INSTALLATION INSTRUCTIONS
®
Percy
1/2" (13 mm) & 3/4" (19 mm)
Thermostatic Mixing Valve Trim Kit
Cross Handle
Model D35105514
Cylinder Handle
Model D35105510
To be used with
D35000510.191 - 1/2" Thermostatic Mixing Valve
D35000530.191 - 3/4" Thermostatic Mixing Valve
Thank you for selecting DXV. To ensure that your installation proceeds smoothly,
please read these instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.

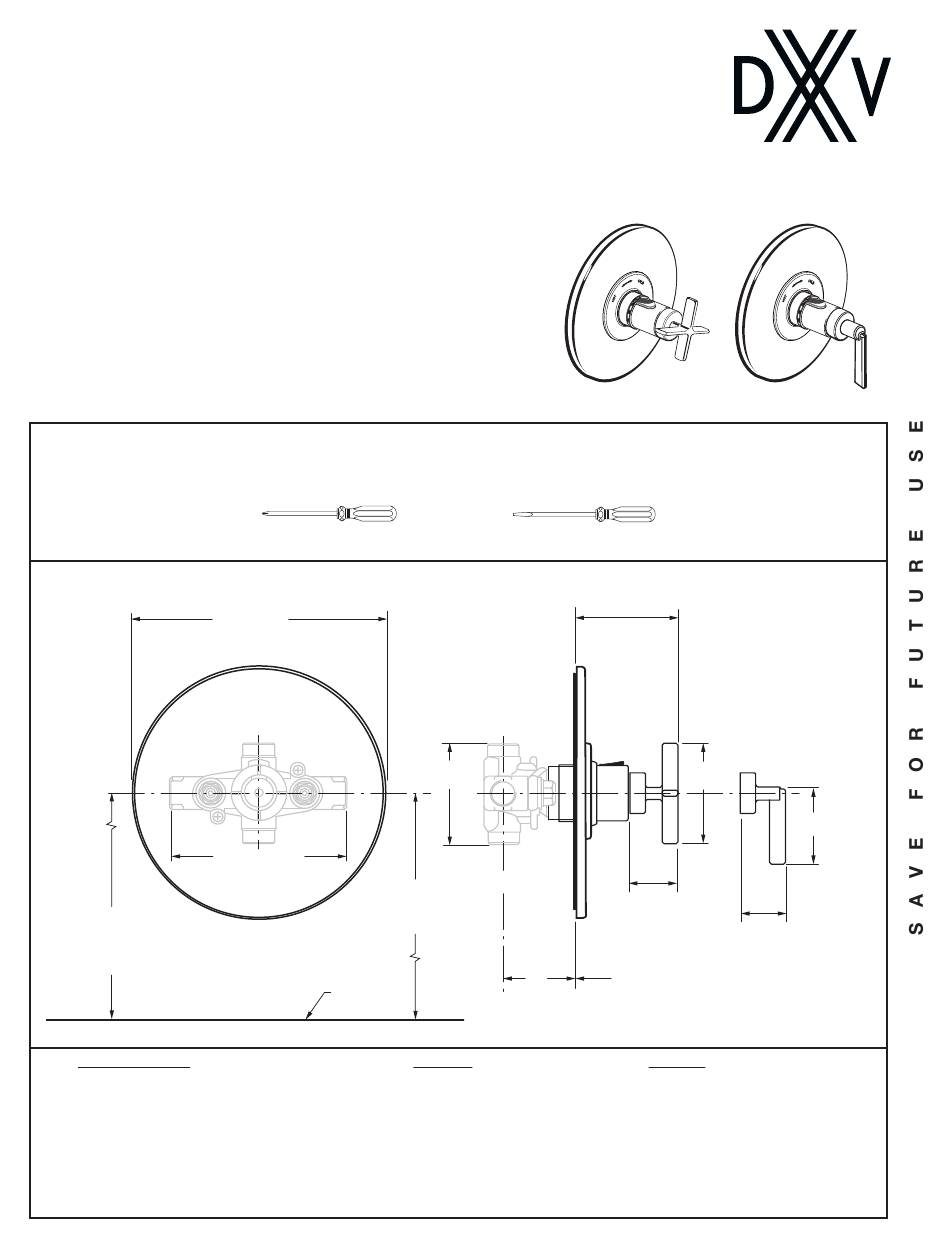

ROUGHING-IN DIMENSIONS:
• For reference
32" (813 mm) TO
42" (1067 mm)
FOR BATH/SHOWER
AND BATH FILLER
(OPTIONAL)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Phillips Screwdriver
7-5/16" DIA.
(185 mm)
5-7/8" (149 mm)
48" (1219 mm) TO
54" (1372 mm)
FOR SHOWER ONLY
(OPTIONAL)
FINISHED
FLOOR
Flat Blade Screwdriver
(77 mm - 96 mm)
3-3/8"
(86mm)
C L
1-11/16"
(44 mm)
to
2-1/2"
(64 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
3" - 3-3/4"
CROSS
HANDLE
CYLINDER
HANDLE
3-3/16"
(80 mm)
1-7/16"
(36 mm)
1-7/16"
(36 mm)
FINISHED
WALL
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965629 Rev. 1.3 (5/17)
2-1/2"
(63 mm)
