INSTALLATION INSTRUCTIONS
Keefe
®
Single Lever Faucet
Monoblock Vessel
Model D35104150
Monoblock
Model D35104100
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Adjustable Wrench

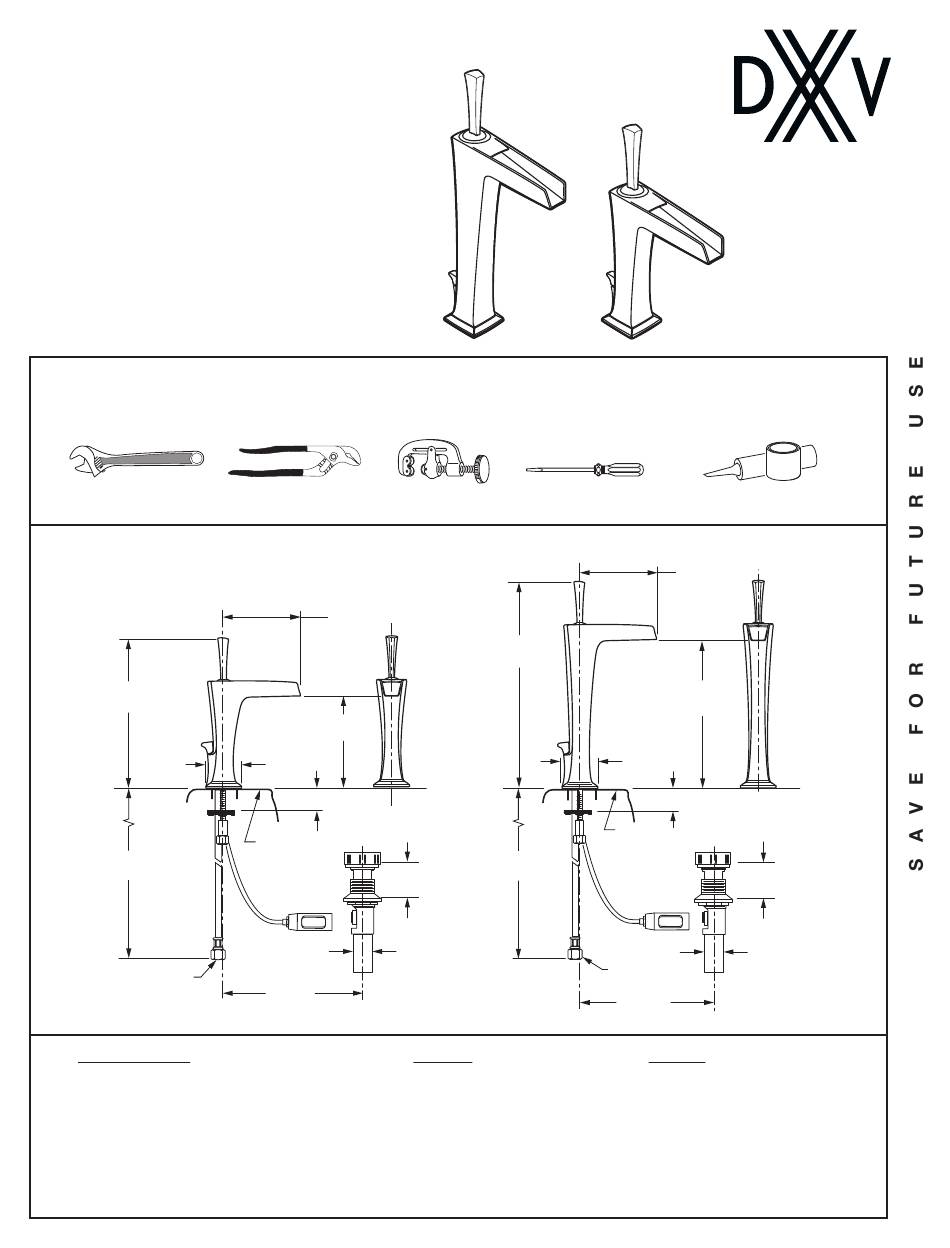

ROUGHING-IN DIMENSIONS:
NOTE: Mounting holes are 1-3/8" D.
9-7/8"
(250 mm)
2-7/16"
(62 mm)
25-3/4"
(655 mm)
3/8" (10 mm)
SUPPLIES
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Channel Locks
Tubing Cutter
5"
(127 mm)
6"
(151 mm)
50 mm MAX.
MTG.
SURFACE
MAX 2"
(51 mm)
1-1/4" O.D.
(32 mm)
9-3/8" MAX.
NOTE: MOUNTING HOLE
(238 mm)
1-3/8" DIA. (35 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
Flat Blade Screwdriver
13-5/8"
(346 mm)
2-7/16"
(62 mm)
MTG.
SURFACE
22"
(558 mm)
3/8" (10 mm)
SUPPLIES
9-3/8" MAX.
(238 mm)
- 1 -
Plumber's Putty or Caulking
5"
(127 mm)
9-3/4"
(247 mm)
50 mm MAX.
MAX 2"
(51 mm)
1-1/4" O.D.
(32 mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965474 Rev. 1.5 (3/17)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for DXV Keefe D35104150
Summary of Contents for DXV Keefe D35104150
- Page 1 Monoblock Vessel Model D35104150 Monoblock Model D35104100 Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
- Page 2 INSTALL FAUCET (LAVATORY AND VESSEL FAUCETS) Turn off hot and cold water CAUTION supplies before beginning. • Install SEAL (1) into groove of FAUCET BASE (2). • Feed FAUCET SUPPLY TUBES (5) and SHANK (3) and DRAIN CABLE ASSEMBLY (9) through mounting hole of lavatory or mounting surface.
- Page 3 POP-UP DRAIN Fig. A. Fig. B. • Remove CLEAR PLASTIC COVER (1). Fig. A. • Remove FOAM SPACER (2) from DRAIN under DRAIN POP-UP (3). Fig. A. BODY • Tighten TAILPIECE (4) on DRAIN BODY before installing DRAIN BODY. Fig. B. REMOVE MOUNTING WASHERS Fig.
- Page 4 ATTACH CABLE CONNECTOR Fig. A. Fig. B. • Thread CABLE CONNECTOR (1) clockwise onto DRAIN BODY CONNECTION (2) and hand tighten. Fig. A. • Your new POP-UP DRAIN installation is now complete. Fig. B. Note: Tailpeice on pop-up drain is 1-1/4" O.D. Fig.
- Page 5 TEST INSTALLED FITTING • With HANDLE (1) in OFF position, turn on WATER SUPPLIES (2) and check all connections for leaks. • Operate HANDLE (1) to flush water lines thoroughly. CHECK DRAIN CONNECTIONS • Operate POP-UP KNOB (3) and fill lavatory with water. Check that DRAIN STOPPER (3) makes a good seal and retains water in sink.
- Page 6 MAINTANENCE If water flow rate is lower than stated, flow regulator might be clogged by debris in the water lines. TO REPLACE FLOW REGULATOR • Turn water supplies off. • Use TOOL PROVIDED (1) to loosen handle ring. Use hex key to loosen handle set screw. Pull handle off.
- Page 7 Speed Connect Drain ® Troubleshooting Guide If sink does not hold water even though Stopper is in the “down” position: • Follow CABLE ADJUSTMENT PROCEDURE. If Stopper does not raise up fully or sink drains too slowly: • Follow CABLE ADJUSTMENT PROCEDURE. If you need to remove the Stopper: •...
-
Page 8: Unlocked Mode
STOPPER INSTALLATION PROCEDURE The Stopper can be installed two ways, “Locked” Mode (Stopper cannot be removed) or “Unlock” Mode (Stopper is removable). LOCKED MODE: Fig. G. • Look at the Plastic Loop at the bottom of the Stopper and notice that the Loop is on one side of the Stopper. -
Page 9: Model Numbers
Keefe ® Single Lever Lavatory and Vessel Faucets MODEL NUMBERS Vessel Faucet D35104150 Lavatory Faucet M964500-YYY0A D35104100 HANDLE KIT Replace the “YYY” with appropriate finish code POLISHED CHROME BRUSHED NICKEL M964501-0070A CARTRIDGE KIT M964818-0070A M964502-0070A SEAL KIT FLOW RESTRICTOR M964504-YYY0A LIFT ROD ASSEMBLY M952430-0070A...
