INSTALLATION INSTRUCTIONS
Victorian
Single Control Bar Faucet
Model D35402400
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work has begun.
Channel Locks

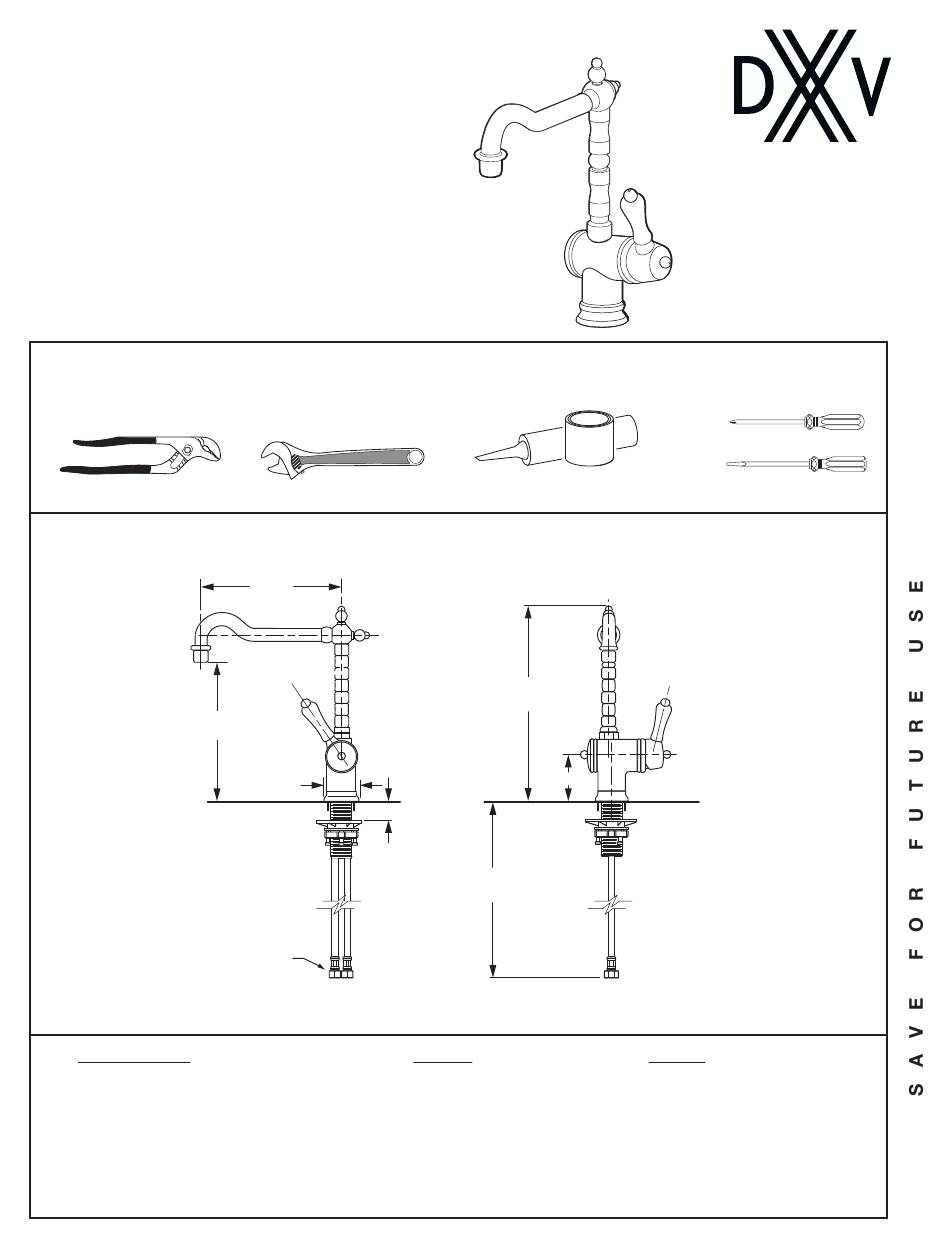

ROUGHING-IN DIMENSIONS:
• For reference
7-15/32"
(190mm)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Adjustable Wrench
5-1/2"
(140mm)
2-1/4"D.
(57mm)
2-3/16"
(53.8mm)
3/8" COMP
NOTE: Bore hole size is 1-3/8"
Plumbers' Putty or Caulking
10-3/4"
(273mm)
2-3/4"
21"
(533mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
Phillips Screwdriver
Flat Blade Screwdriver
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965537 Rev. 1.2 (4/17)
