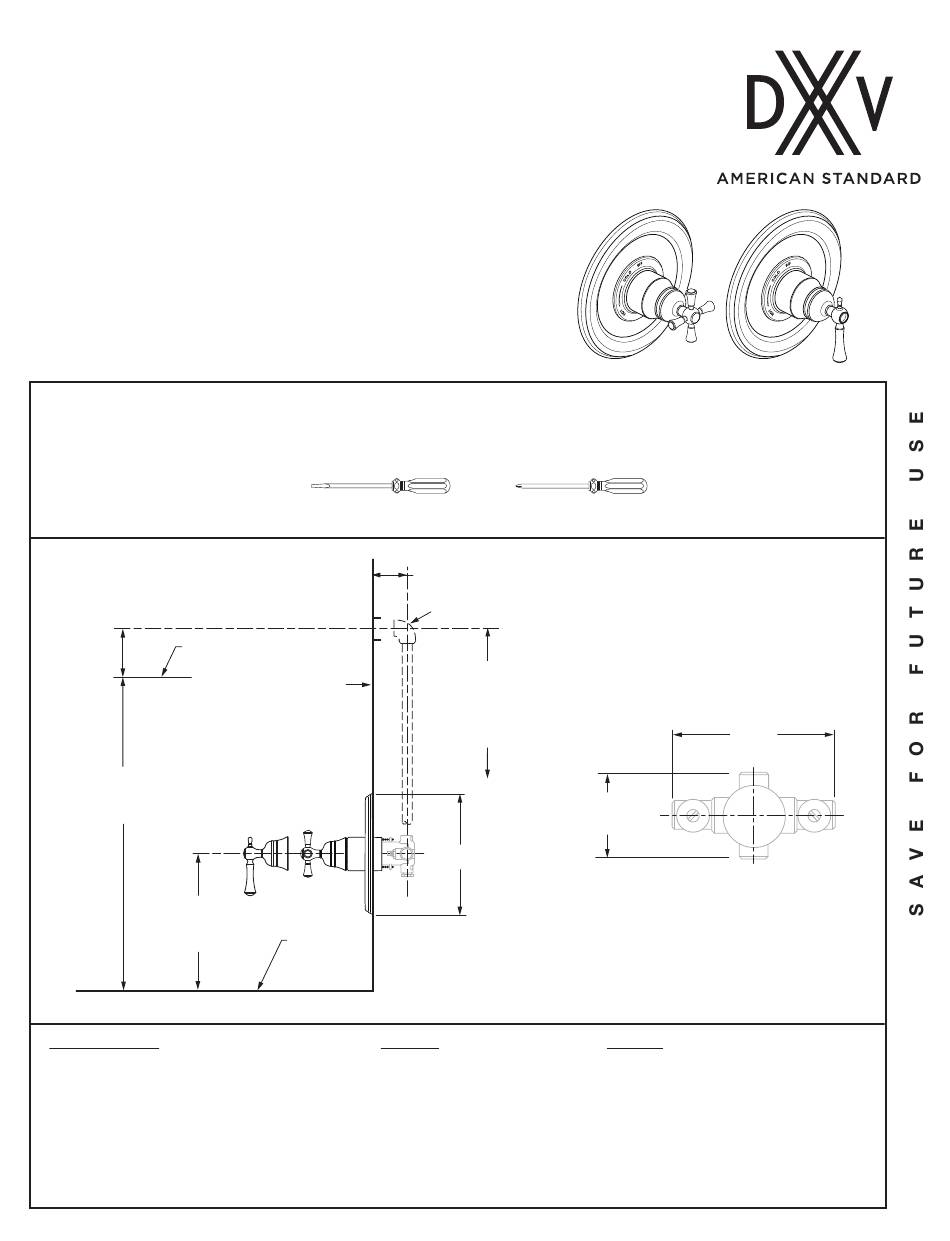

INSTALLATION INSTRUCTIONS
Randall
Pressure Balanced
™
Shower Trim Kit
Cross Handle
Model D35102.540
Lever Handle
Model D35102.500
Thank you for selecting DXV by American Standard.
To ensure that your installation proceeds smoothly,
please read these instructions carefully
before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing,
supply stores. It is essential that the tools and materials be on hand before work is begun.
ROUGHING-IN DIMENSIONS:
• For reference
BOTTOM OF
SHOWER HEAD
74" FOR HEAD
CLEARANCE
(OPTIONAL)
(1880 mm)
48" TO 54"
OPTIONAL
(1219mm TO
1372mm)
In the United States:
DXV by American Standard
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2013
Regular Screwdriver
FINISHED WALL
LEVER
CROSS
HANDLE
HANDLE
SHW
TUB
BOTTOM OF
TUB
OR SHOWER
STALL
In Canada:
DXV by American Standard
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax:
www.DXV.ca
Phillips Screwdriver
1-5/8" TO 3-1/4"
(41mm TO 83mm)
1/2" NPT
(13mm)
OPTIONAL TO
FINISHED FLOOR
USUALLY
BETWEEN
72'' AND 84"
(1829 TO
2134mm)
OUTLETS 1/2" NPT
7-7/8" D.
(200mm)
1-800-395-1498
- 1 -
THREADED INLETS (STOPS)
INLETS 1/2" NPT
5-7/8"
(149 mm)
3-3/8"
(86 mm)
In Mexico:
DXV by American Standard
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M9 65 5 5 3 Rev. 1 .2
