DXV Landfair D35107514 Installation Instructions

1/2" (13 mm) & 3/4" (19 mm) thermostatic mixing valve trim kit
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
INSTALLATION INSTRUCTIONS
Landfair
®
1/2" (13 mm) & 3/4" (19 mm)
Thermostatic Mixing
Valve Trim Kit
Model D35107514
To be used with
D35000510.191 - 1/2" Thermostatic Mixing Valve
D35000530.191 - 3/4" Thermostatic Mixing Valve
Thank you for selecting DXV. To ensure that your installation
proceeds smoothly, please read these instructions carefully
before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.

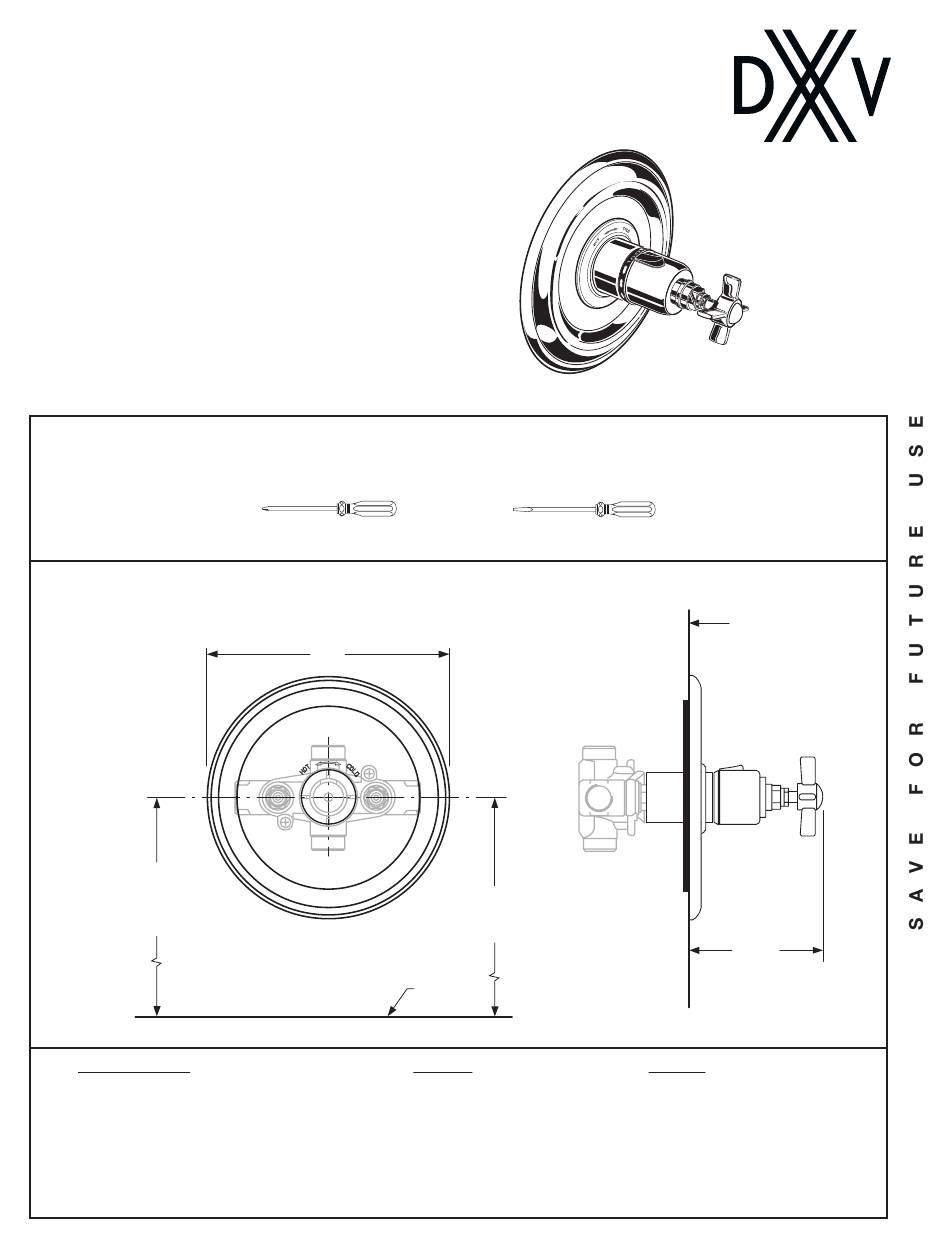

ROUGHING-IN DIMENSIONS:
• For reference
• To assure proper positioning in relation to wall, note roughing-in dimensions.
32" TO 42"
(813 to 1067 mm)
FOR BATH/SHOWER
AND BATH FILLER
(OPTIONAL)
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
Phillips Screwdriver
8"
(203 mm)
(1219 to1372 mm)
FOR SHOWER ONLY
FINISHED
FLOOR
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
Flat Blade Screwdriver
48" TO 54"
(OPTIONAL)
- 1 -
FINISHED
WALL
CROSS
HANDLE
6-3/16"
(157 mm)"
In Mexico:
M965543 Rev. 1.6 (5/17)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Landfair D35107514 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for DXV Landfair D35107514

Summary of Contents for DXV Landfair D35107514

  • Page 1 To be used with D35000510.191 - 1/2" Thermostatic Mixing Valve D35000530.191 - 3/4" Thermostatic Mixing Valve Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
  • Page 2 TEMPERATURE CALIBRATION • Unscrew PLASTER GUARD SCREWS and remove PLASTER GUARD. • Check that arrow marking B points vertically upwards. If not, push the BLACK CLAMP on the SECURING RING to the right, pull off KNOB MOUNT and reinstall KNOB MOUNT with| arrow “B” pointing upwards. •...
  • Page 3 HANDLE INSTALLATION • Use HEX WRENCH (7) supplied to loosen SET SCREW (1). Separate the TEMPERATURE-CONTROL KNOB (2) from the HANDLE BASE (3). Fig. 1. • Push TEMPERATURE-CONTROL KNOB (2) onto KNOB MOUNT (4). • Attach TEMPERATURE CONTROL KNOB (2) to valve with ATTACHMENT SCREW (5).
  • Page 4 Landfair ® 1/2" (13 mm) & 3/4" (19 mm) Thermostatic Mixing Valve Shower Trim MODEL NUMBER D35107514 Replace the “YYY” with appropriate finish code POLISHED CHROME CARBON BRONZE M964702-YYY0A TRIM PLATE WITH SCREWS BRUSHED NICKEL PLATINUM NICKEL H961235.XXX DIAL PLATE H960680.XXX THERMO CARTRIDGE COVER H960004.191...
