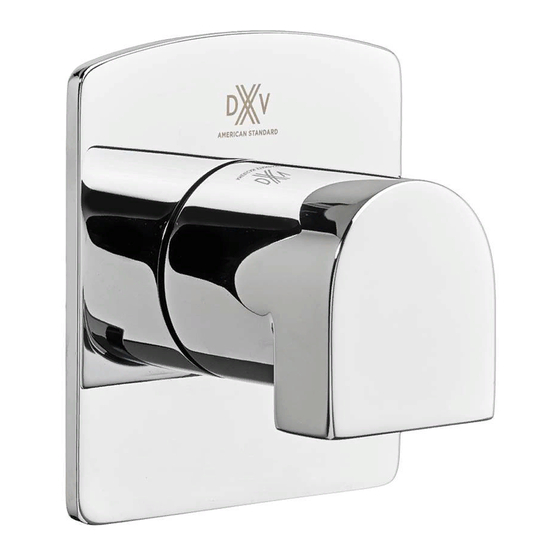

Handle trim kit for 2-way or 3-way in-wall diverter

Advertisement

Quick Links

INSTALLATION INSTRUCTIONS
Equility
(Formerly LYNDON
Handle Trim Kit for
2-Way or 3-Way In-Wall Diverter
Model D35109430
To be used with
D35000420.191 - 3/2 Two Way In-Wall Diverter
D35000430.191 - 4/3 Three Way In-Wall Diverter
Thank you for selecting DXV. To ensure that your
installation proceeds smoothly, please read these
instructions carefully before you begin.
RECOMMENDED TOOLS AND MATERIALS
Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing
supply stores. It is essential that the tools and materials be on hand before work is begun.
Flat Blade Screwdriver
ROUGHING-IN DIMENSIONS:
• For reference
In the United States:
DXV
One Centennial Avenue
Piscataway, New Jersey 08855
Attention: Director of Customer Care
For residents of the United States, warranty
information may also be obtained by calling
the following toll free number: (800) 227-2734
www.DXV.com
Product names listed herein are trademarks of AS America, Inc.
© AS America, Inc. 2017
)
®
Phillips Screwdriver
FINISHED
WALL
1-7/8"
(48 mm)
In Canada:
DXV
5900 Avebury Road
Mississauga, Ontario
L5R 3M3
Canada
Toll Free: 1-800-387-0369
Local: 905-306-1093
Fax: 1-800-395-1498
www.DXV.ca
- 1 -
Plumbers' Putty or Caulking
3-3/4"
(95 mm)
1-7/8"
(47.4 mm)
In Mexico:
DXV
Via Morelos 330
Col. Santa Clara Coatitla
Ecatepec, Estado de México 55540
Toll Free: 01-800-8391200
www.DXV.mx
M965671 Rev. 1.3 (5/18)

Advertisement

loading
Need help?

Need help?

Do you have a question about the Equility D35109430 and is the answer not in the manual?

Questions and answers

Summary of Contents for DXV Equility D35109430

  • Page 1 To be used with D35000420.191 - 3/2 Two Way In-Wall Diverter D35000430.191 - 4/3 Three Way In-Wall Diverter Thank you for selecting DXV. To ensure that your installation proceeds smoothly, please read these instructions carefully before you begin. RECOMMENDED TOOLS AND MATERIALS Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing supply stores.
  • Page 2 INSTALL HANDLE Turn off hot and cold water CAUTION supplies before beginning. • Use the HEX KEY (1) provided to loosen the handle SET SCREW (2) and take out the HOLDER ASSEMBLY (3) from HANDLE (4). • Install ESCUTCHEON (5) onto HOLDER ASSEMBLY (3) as shown and apply sealant to groove on back side of ESCUTCHEON (5).
