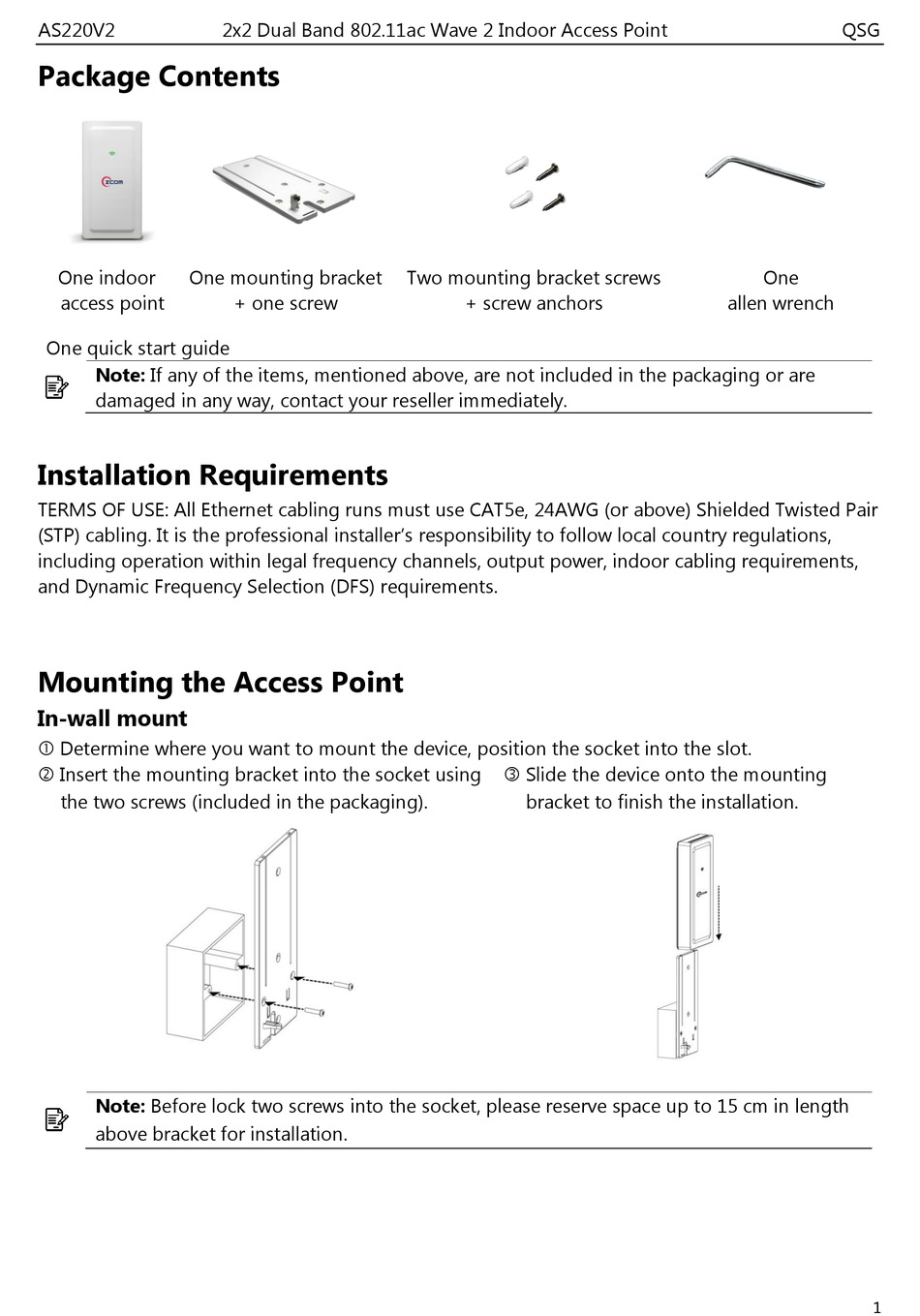

Package Contents

One indoor One mounting bracket
access point
One quick start guide
Note: If any of the items, mentioned above, are not included in the packaging or are
damaged in any way, contact your reseller immediately.

Installation Requirements

TERMS OF USE: All Ethernet cabling runs must use CAT5e, 24AWG (or above) Shielded Twisted Pair
(STP) cabling. It is the professional installer's responsibility to follow local country regulations,
including operation within legal frequency channels, output power, indoor cabling requirements,
and Dynamic Frequency Selection (DFS) requirements.

Mounting the Access Point

In-wall mount
 Determine where you want to mount the device, position the socket into the slot.
 Insert the mounting bracket into the socket using
the two screws (included in the packaging).
Note: Before lock two screws into the socket, please reserve space up to 15 cm in length
above bracket for installation.
2x2 Dual Band 802.11ac Wave 2 Indoor Access Point
+ one screw
Two mounting bracket screws
+ screw anchors
 Slide the device onto the mounting
bracket to finish the installation.
QSG
One
allen wrench
