AS220V2
Chapter 2. H
2.1.

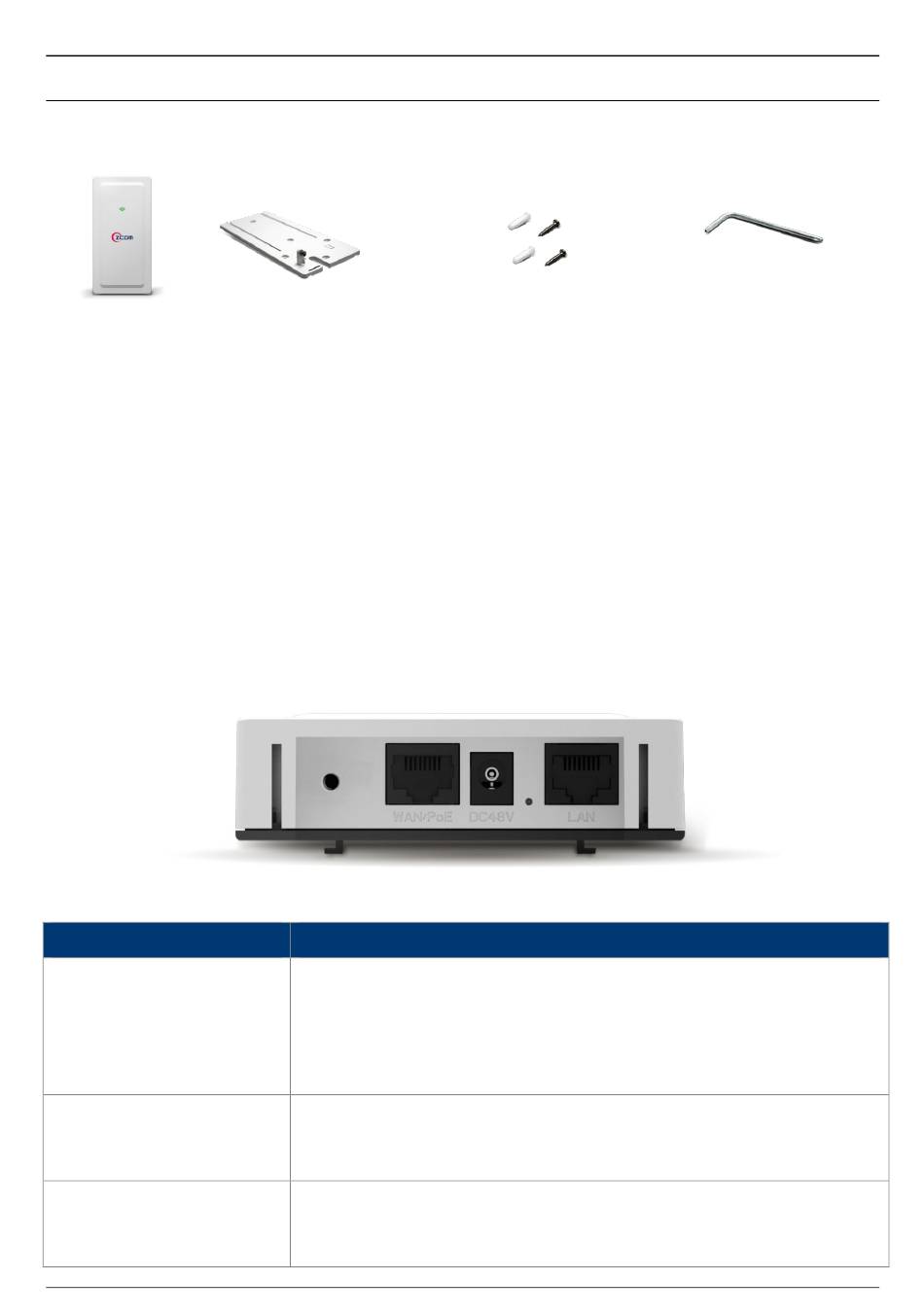

Package Contents

One indoor One mounting bracket
access point
2.2.

Installation Requirements

TERMS OF USE: All Ethernet cabling runs must use CAT5e, 24 AWG (or above) Shielded Twisted
Pair (STP) cabling. In addition, please cut the cable into a proper length, strip the cables on both
ends, and crimp the wires into RJ45 connectors. It is the professional installer's responsibility to
follow local country regulations, including operation within legal frequency channels, output power,
indoor cabling requirements, and Dynamic Frequency Selection (DFS) requirements.
2.3.

Physical Ports

The following physical ports are available on the device).
The following table describes the physical ports that are available on the device from left to right.
Port
WAN/PoE port
Power Port (DC48V)
Reset Button
2x2 Dual Band 802.11ac Wave 2 Indoor Access Point
C
ARDWARE OMPONENTS
+ one screw
Description
The WAN/PoE port operates at 10/100/1000 Mbps at supports an
RJ45 connection.
Supporting PoE In, the AP can receive power through the WAN port
from PSE (Power Sourcing Equipment), rendering the need for a
power supply into the power port unnecessary.
A 48V/0.52A power supply can be connected to this port to provide
power to the AP. We provide power adaptor as an optional accessory
for your reference.
If needed, the AP can be factory reset. With a paperclip, press and
hold this button for 10 seconds to reset the AP to the factory default
settings.
Two mounting bracket screws
+ screw anchors
User Manual
One
allen wrench
Page 4
