AS220V2

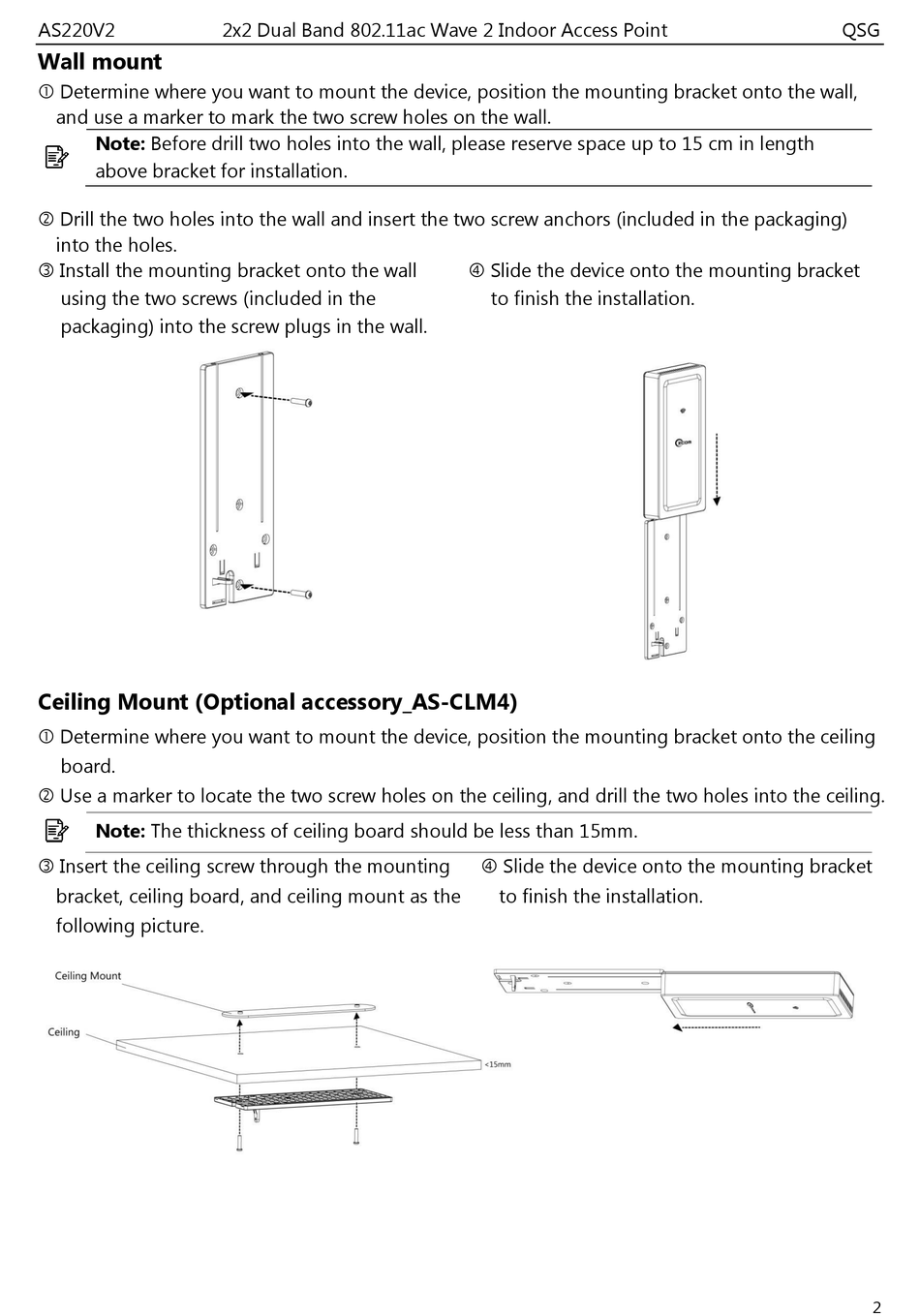

Wall mount
 Determine where you want to mount the device, position the mounting bracket onto the wall,
and use a marker to mark the two screw holes on the wall.
Note: Before drill two holes into the wall, please reserve space up to 15 cm in length
above bracket for installation.
 Drill the two holes into the wall and insert the two screw anchors (included in the packaging)
into the holes.
 Install the mounting bracket onto the wall
using the two screws (included in the
packaging) into the screw plugs in the wall.
Ceiling Mount (Optional accessory_AS-CLM4)
 Determine where you want to mount the device, position the mounting bracket onto the ceiling
board.
 Use a marker to locate the two screw holes on the ceiling, and drill the two holes into the ceiling.
Note: The thickness of ceiling board should be less than 15mm.
 Insert the ceiling screw through the mounting
bracket, ceiling board, and ceiling mount as the
following picture.
2x2 Dual Band 802.11ac Wave 2 Indoor Access Point
 Slide the device onto the mounting bracket
to finish the installation.
 Slide the device onto the mounting bracket
to finish the installation.
