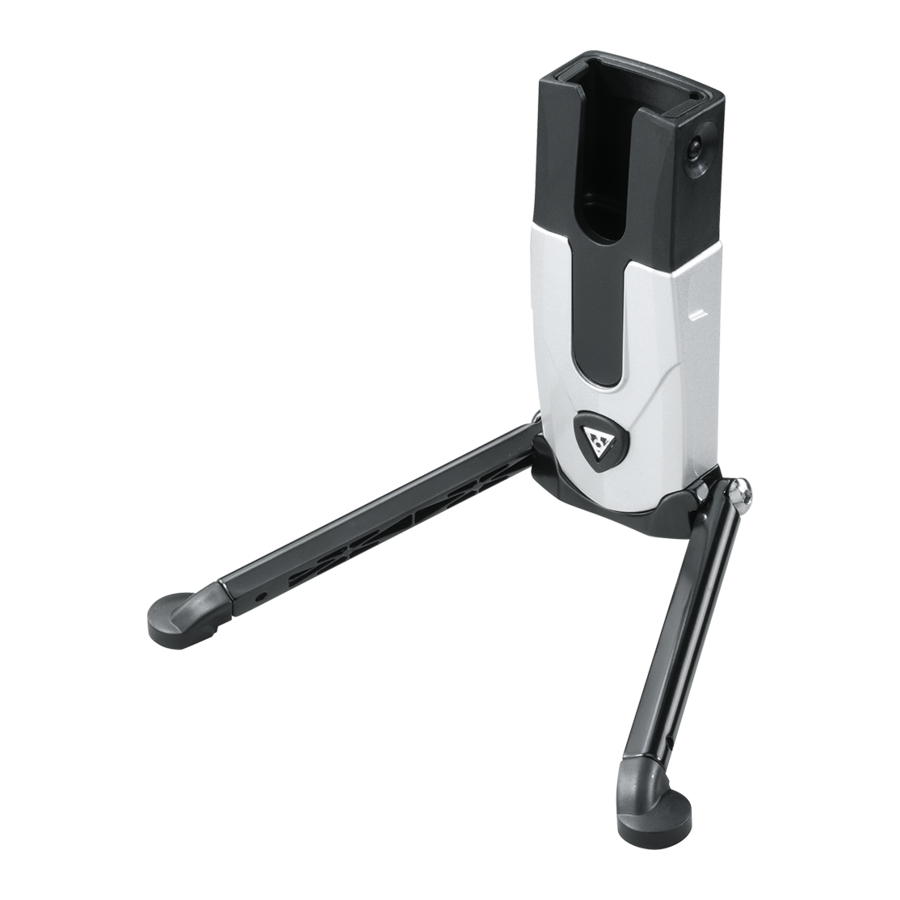

Topeak FlashStand FAT User Manual

*
Please read all instructions and caution notes carefully before use.
20 kgs / 44 lbs
* Maximum Weight Load:
IMPORTANT NOTES
FlashStand is designed to be used on bikes with crank-
FAT
arm width less than 45mm (1.8") at top 60mm (2") insert.
45mm (1.8")
If support legs on FlashStand
as shown. Do not over tighten the bolts as this may damage the
support legs.
Support
Leg
FlashStand
for 26" Mountain Bike
60mm (2")
become loose, tighten its bolts
FAT
4mm
Allen Key
FAT
FlashStand
FAT
arm distance from the ground between 80mm and 180mm
(3.2"~7").
80mm~ 180mm
(3.2"~7")
Adjust FlashStand
recommended angle of 83˚~86˚ (from horizontal plane) for stability
of your bike. Improper installation or lean angle may cause your
bike to fall and cause damage to it and/or FlashStand
User's Guide
is designed to be used on bikes with crank-
height to make sure your bike is within the
FAT
83˚~86˚
GB
.
FAT
