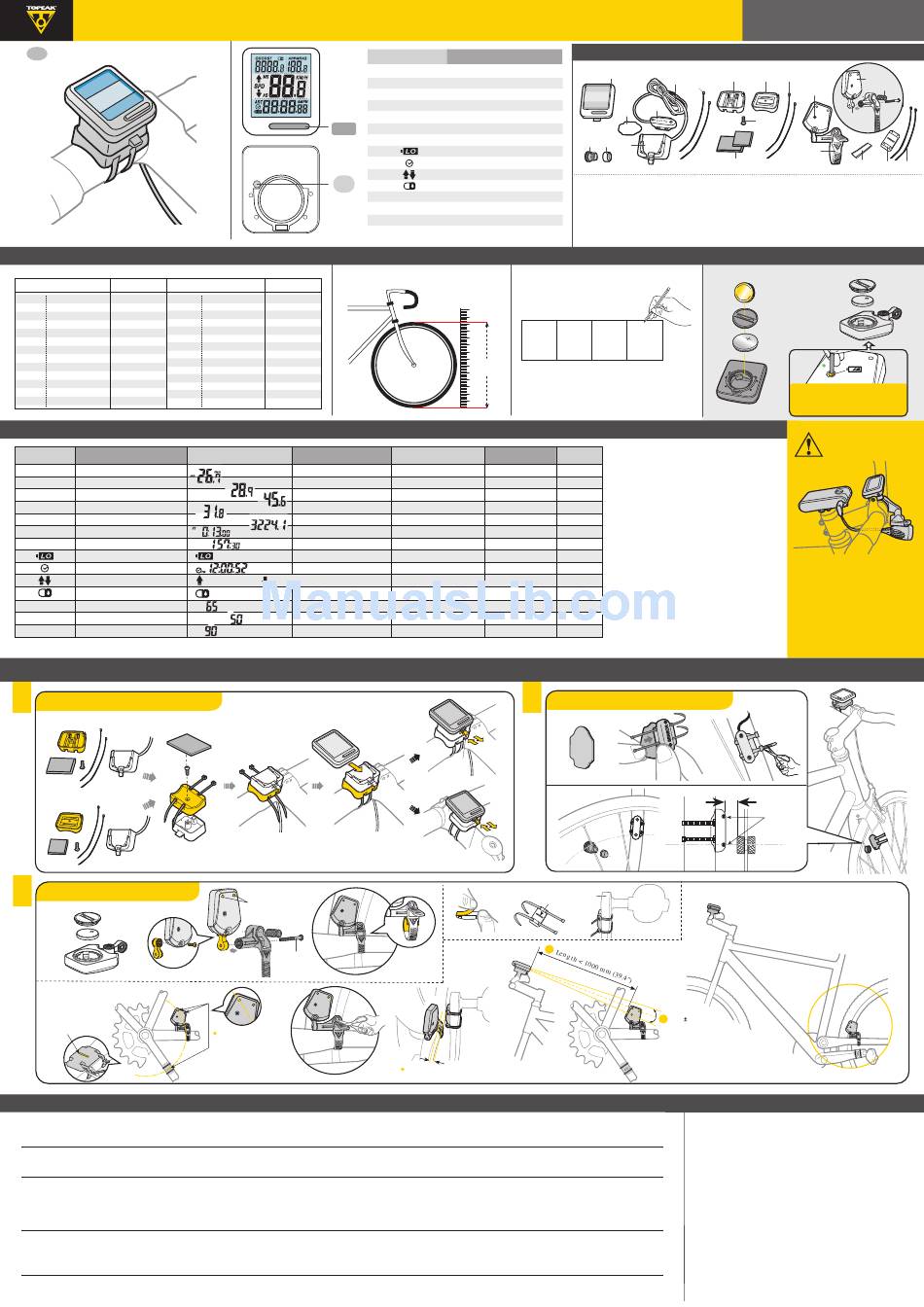

Topeak PANORAM V10c User Manual

GB
Art no. TPC16
DETERMINE WHEEL CIRCUMFERENCE
METHOD A).
CHOOSE FROM WHEEL CIRCUMFERENCE DATA BELOW
Tire Size Designation Wheel Circumference Tire Size Designation
47-305 16 x1.75 x2 1217 32-630 27x1 1/4
28-630 27x1 1/4 Fifty
47-406 20 x1.75x2 1590
40-622 28x1.5
37-540 24x1 3/8A 1948
40-622 28x1.75
47-507 24x1.75x2 1907
40-635 28x1 1/2
23-571 26x1 1973
37-622 28x1 1/8x1 5/8
40-559 26x1.5 2026
18-622 700x18c
44-559 26x1.6 2051
20-622 700x20c
47-559 26x1.75x2 2070
23-622 700x23c
50-559 26x1.9 2089
25-622 700x25c
54-559 26x2.00 2114
28-622 700x28c
57-559 26x2.215 2133
32-622 700x32c
37-590 26x1 3/8 2105
35-622 700x35c
37-584 26x1 3/8x1 1/2 2086
40-622 700x40c
SPECIFICATIONS
DISPLAY FUNCTION
SPD Current speed
AS Average speed
MS
Maximun speed
DST
Distance
ODO
Accumulated distance
RT
Riding time
ART
Accumulated riding time
Low battery indicator
12H/24H clock
Pace indicator
Button lock
RPM
Current Cadence
AR
Average Cadence (RPM)
MR
Maximun Cadence (RPM)
1
Computer / Handlebar Bracket Set
Option A
( Fit handlebar )
Option B
( Fit stem )
3
Cadence Sensor/Magnet Set
+
CR2032
-
Sensing
Zone
TROUBLE SHOOTING
Check the following before bringing unit in for repair.
PROBLEM CHECK ITEMS
No display 1. Is the battery exhausted?
2. Is the battery installed correctly?
No current 1. Is it in setup mode?
speed or 2. Are the contacts between the computer body and the bracket poor?
incorrect 3. Are the relative positions and gap between sensor and magnet correct?
data 4. Is the wheel circumference correct?
Irregular display
Did you leave the main unit in direct sunlight when
LCD is black
not riding the bicycle for a long while?
Is the temperature below 0˚C (32˚F)?
Display is slow
PA N O R A M V 1 0
1 3 f u n c t i o n c y c l e c o m p u t e r
MODE
Button
M
SET
Button
S
METHOD B). MEASURE WHEEL CIRCUMFERENCE
Wheel Circumference
2199
2174
2224
2268
2265
2205
2102
2114
2133
2146
2149
2174
2205
2224
SHOWN ON SCREEN READ ON SCREEN
26.7 KM/H
28.9 KM/H
KM/H
45.6 KM/H
MS KM/H
AS
DST
31.8 KM
3224.1 KM
ODO
13M
ART
157H30M
low battery
12H0M52S PM (12H)
SPD > AVG SPD < AVG
lock
RPM
65
AR
50
MR
90
Sensing Point
M3 x 30mm
Sensing
Point
Align center
of magnet
with either
sensing
point.
c
DISPLAY FUNCTION
SPD
Current speed
Average speed
AS
MS Maximun speed
DST Distance
Accumulated distance
ODO
RT Ride time
ART Accumulated ride time
Low battery indicator
12H/24H clock
Pace indicator
Button lock
RPM Current Cadence (RPM)
AR Average Cadence (RPM)
MR Maximun Cadence (RPM)
KM/H M/H Unit selection
WHEEL CIRCUMFERENCE OF MY BIKES
KM/H:
Wheel Circumference
=mm x 3.14
BIKE :
mm X 3.14
Wheel circumference default: BIKE-2155mm
SPECIFICATIONS INCREMENTS
0.1 KM/H or M/H
99.9 KM/H, 60.0 M/H
99.9 KM/H, 60.0 M/H 0.1 KM/H or M/H
0.1 KM/H or M/H
99.9 KM/H, 60.0 M/H
0.0~999.9 KM or M
0.1 KM or M
0.0~9999.9 KM or M
0.1 KM or M
0: 00: 00~99: 59: 59
1 Second
000: 00~999: 59
1 Minute
< 2.4V
1:00:00~12:59:59 (12H)
1 Second
0:00:00~23:59:59 (24H)
0~199 1 Second
0~199 1 Second
0~199 1 Second
INSTALLATION
2
Release
Button
Release
Button
Sensing
Zone
A
Sensor
Rubber Pad
GAP < 5mm (o.2")
REMEDY
1. Replace the battery.
2. Make sure that the positive (+) pole of the battery is facing the battery cap.
1. Refer to the data setting procedure and complete the adjustment.
2. Clean the contacts.
3. Refer to INSTALLATION and re-adjust correctly.
4. Refer to CIRCUMFERENCE SETTING and enter correct value.
Refer to "Clear All Data setting" and initiate the computer again.
Place the computer body in the shade to return to normal state.
The unit will return to normal state when the temperature rises.
DETAILED PARTS DESCRIPTION
ACCESSORIES (Fits handlebar and stem)
1
4-1
2-3
2-5
2-2
2-4
3-1 3-2 2-1
4-4
1. Computer Body 3. Wheel Magnet Set
3-1 Wheel Magnet
2. Computer Bracket Set A
3-2 Magnet Nut
2-1 Computer Bracket
2-2 Sensor 4. Bracket Set
2-3 Sensor Cable 4-1 Handlebar Bracket
2-4 Sensor Rubber Pad 4-2 Stem Bracket
2-5 Sensor Zip Tie (2pcs) 4-3 M2.5 x 10mm Bolt
Computer Body
+
CR2032
-
Sensor:
ACCURACY
No Contact Magnetic Sensor.
± 1 %
Wheel Circumference Setting:
0mm - 3999mm (1mm increment)
± 0.1 %
Operating Temperature:
± 0.1 %
0˚C ~ 60˚C (32˚F ~ 140˚F)
± 0.1 %
Storage Temperature:
± 0.1 %
- 20˚C ~ 80˚C (-4˚F ~ 176˚F)
± 0.1 %
Computer Body Battery Power:
± 0.1 %
3V battery x 1 (CR2032), Battery life,
approximately two years.
(Based on an average of 1.5 hours use per day)
± 0.003 %
Transmitter Battery Power:
3V battery x 1 (CR2032). 15,000 miles riding distance,
or approximately 2 years.
(Battery included with sensor may have shorter battery
life due to initial shipping and storage time.)
Dimensions/Weight:
Computer Body: 45.5 x 40 x 11.5mm/ 24.4g
Wheel Sensor / Magnet Set
Max. 5mm (0.2")
Crank
arm
B˚< 15˚
B
NOTE: Either A or B is not
installed properly, input
signal will be weak.
PRECAUTIONS
1. The TOPEAK PANORAM cycle computer can be used
in the rain but should not be used underwater.
2. Do not leave the main unit exposed to direct sunlight
when not riding the bicycle.
3. Do not disassemble the computer body or its accessories.
4. Check relative positions and gap between sensor
and magnet periodically.
5. Clean the bracket contacts and the button of the
computer body periodically.
6. Do not use harsh chemicals to clean the computer
body or its accessories.
7. Remember to pay attention to the road while riding.
User's Guide
4-2 4-5
5-3b
5-3c
5-1
M3 x 30mm
5-3a
4-3
5-2
5-3
6-1 6-2
4-4 Rubber Pad (2 pcs) 5-3b Sensor Body
4-5 Bracket Zip Tie (4 pcs) 5-3c Strap Clamp Screw
5. Cadence Sensor Set 6. Cadence Magnet Set
5-1 Battery Test Button
6-1 Cadence Magnet
5-2 Threaded Strap Clamp
6-2 Magnet Zip Tie
5-3 Sensor Rubber Pad
(width: 2.5mm - 2 pcs)
5-3a Sensor Spacer
CHANGING BATTERIES
Cadence Sensor
NOTE:
+
The sensor battery
CR2032
is supplied, but not -
installed. Install
the sensor battery
before using the
computer.
TEST
Press battery test button to test battery
strength. The green LED indicates a
good battery. Replace battery if the
green LED does not light.
IMPORTANT
NOTE
When useing Panoram
wireless cycle computer in
conjunction with a Topeak
light and powerpack, mount
the light in the position
shown to minimize electro-
magnetic interference with
the cycling computer.
Sensing
Zone
During non-ride periods, never leave
NOTE:
cadence magnet next to its sensor.
This will shorten sensor battery life.
