Topeak DeFender M1 User Manual

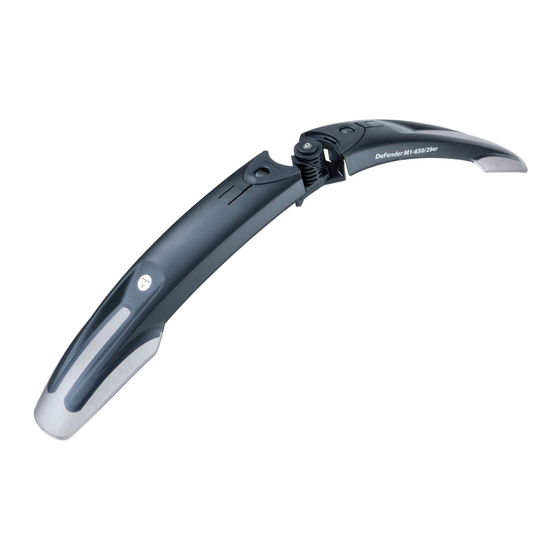

DeFender M1

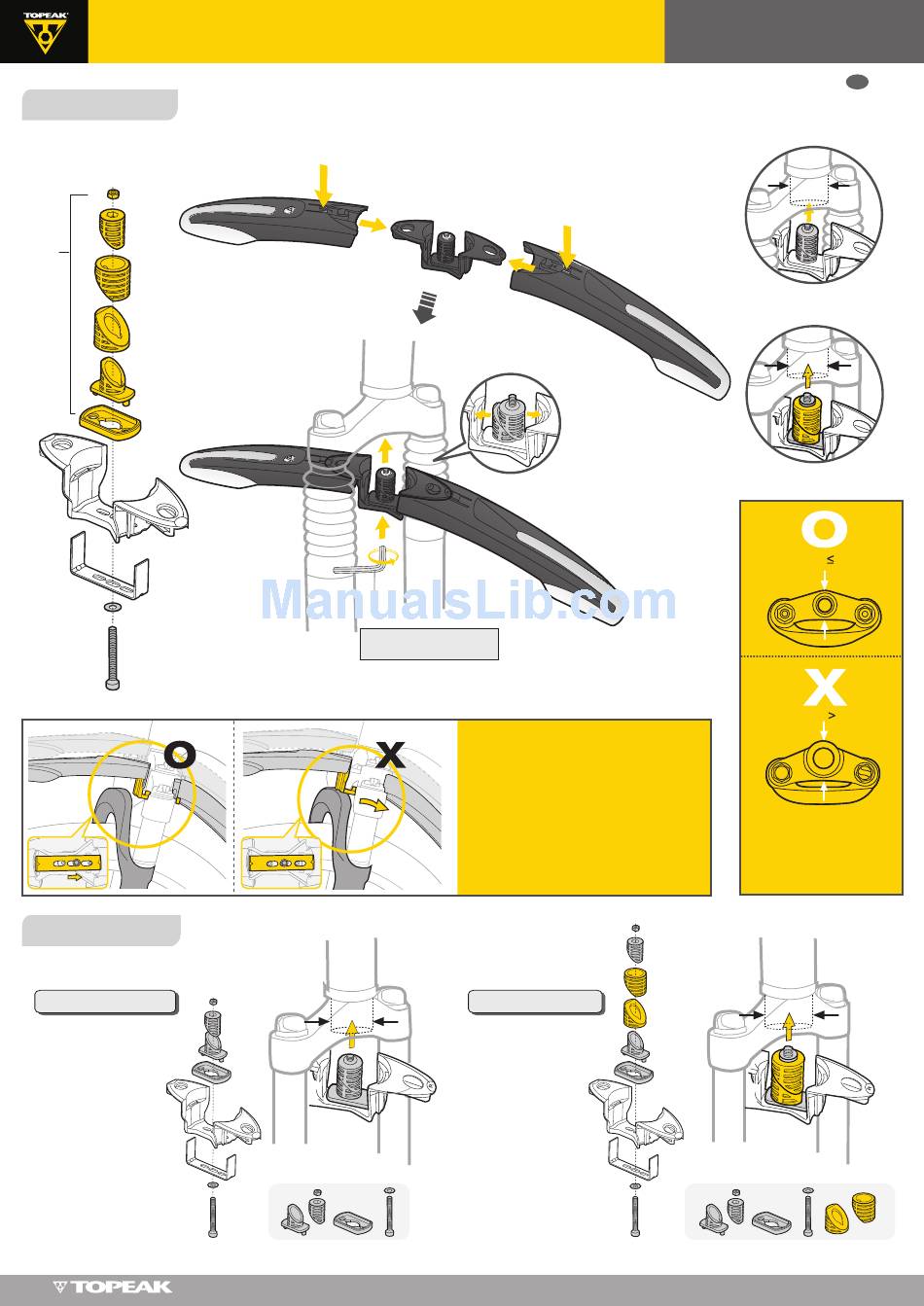

Tool required: 4 mm Allen key
Wedge
Set
Back view
DeFender M1
IMPORTANT NOTES
ø19.6 ~ ø26
Fits mm
DeFender
M1 / M2
Press to
install / release
F
F
(Front)
(Front)
4mm
Allen key
Recommended Torque
2-4 Nm (17-35 in. lbs)
Back view
Press to
install / release
R
(Rear)
R
(Rear)
CAUTION:
When installing DeFender M1 with
suspension forks, make sure no part of
the fork comes in contact with the
DeFender M1 during its travel length.
Otherwise damage to your bike or
DeFender M1 may occur and it may also
cause bodily injury.
ø 27.7~ ø35
Fits mm
User's Guide
GB
ø19.6 - ø26
Fits mm
ø 27.7~ ø35
Fits mm
60
thickness mm
60
thickness mm
DeFender M1 fits most standard
front forks. However, it will not
fit forks with a crown thickness
over 60 mm (2.36") and is not
designed to be used with the 1.5"
headset standard.
Prepare to Ride
