Topeak Fixer 8 f User Manual

Fixer 8

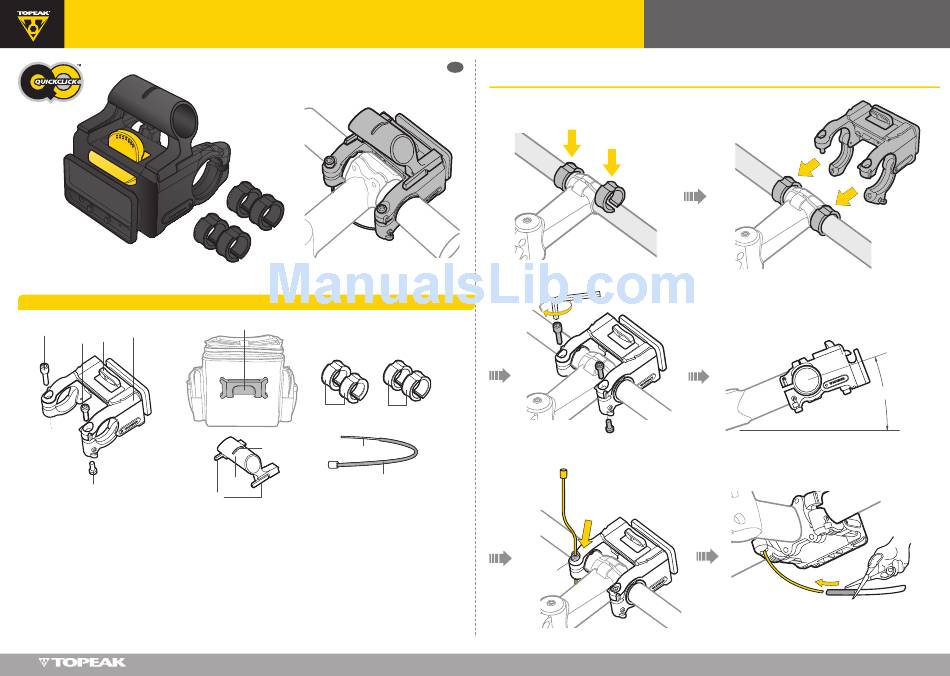

DETAILED PARTS DESCRIPTION
2 1
3 1a
4
6b
Handlebar Bag Fixer
1. HB Fixer A
1a. HB Fixer Release Button
2. M5 x 20mm Bolt
3. M5 x 15mm Bolt
4. M5 x 12mm Bolt
5. HB Fixer B
* Not needed if handlebar diameter is 31.8mm.
for handlebar bags and baskets
Fits ø25.4, ø28.6 and ø31.8 mm handlebars.
5
7a 7b
6a
8
8a
6
6. Computer Clip
6a. Thread hole
6b. Computer Clip Release Tab
7. Rubber Sizing Pad
*
7a. ø25.4 (for normal size h/bar)
7b. ø28.6 (for oversize h/bar)
8. Security Cable
8a. cable housing
GB
A. Mount Handlebar Fixer on Handlebar
5mm Allen key
Tighten the bolts.
(Do not tighten completely.)
M5 x 20L
Bolt
User's Guide
20˚
Add cable housing over the security
cable to protect the stem from
marring. Trim excess cable housing.
Prepare to Ride
