Topeak WhiteLite HP Beamer User Manual

GB
ø25.4~26.0mm Bracket
ø31.8~33.0mm Bracket
LOW BATTERY INDICATOR :
Burn times are based on use with a 1.5V Alkaline battery. Burn times may vary with use of di erent manufacturer's
batteries. If light is ickering in Constant Mode, the battery has drained, replace with a new battery.
BATTERY SETUP
AAA Battery 1.5V (2 pcs)
PRESS
Remove battery holder from light
body and insert new battery.
Make sure positive and negative
ends of battery is installed correctly.

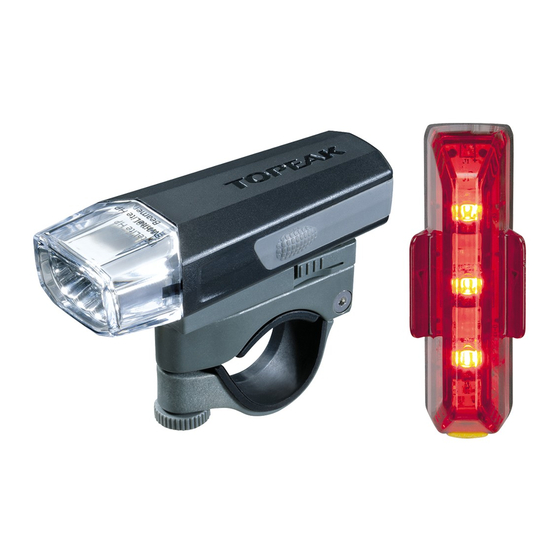

WhiteLite HP Beamer
TM
On-Off, mode
selection
button
on
Blinking
o
Battery Holder
Light Body
WARNING :
During long periods of non-use,
remove batteries to prevent damage
caused by leaking battery cells.
BURN TIME INSTALLATION
for ø25.4~26.0mm
Total Burn Time
Handlebar
at Constant
30 hours
(hrs) 9 20 40 60
Mode Power Level Burn Time
1 Constant 30 hours
ø25.4~26.0mm
2 Blinking 60 hours
Note : Burn times are based on use
with 1.5V Alkaline batteries.
ANGLE TOE-IN ADJUSTMENT
5˚ 5˚
SAFETY NOTES
1. WhiteLite HP Beamer is water-resistant. This allows its use in rain, however, WhiteLite HP Beamer should
never be purposely submerged in water.
2. If the light body or parts become dirty or have been exposed to salt water, gently clean with soft towel using
mild soap and water only. Lubricate and maintain the light body with silicon based grease on the O-rings.
Never use harsh chemicals to clean the lighting system as damage to the housing and lens will occur
3. Safely and properly dispose of the old batteries according to your local regulations.
4. Never place this lighting system within a child's reach.
5. For ultimate safety, the WhiteLite HP Beamer should be
used in conjunction with a speci c night riding light.
6. In addition to its brightness, the beam is widely
di used. In case you need to use this light on
public roads, be sure to adjust the angle
downward so as not to blind oncoming tra c.
SPECIFICATIONS WARRANTY
Function: constant and blinking 1-year Warranty: All mechanical components against manufacturer defects only.
Batteries are not covered under any implied warranty.
Bulb: 3 super bright LED's
Warranty Claim Requirements
Burn Time (approx):
AAA Alkaline Battery 1.5V (2 pcs) To obtain warranty service, you must have your original sales receipt. Items returned
without a sales receipt will assume that the warranty begins on the date of manufacture.
(Standard equipped)
All warranties will be void if the product is damaged due to user crash, abuse, system
Constant - 30 hours
alteration, modi cation, or used in any way not intended as described in this manual.
Blinking - 60 hours
* The speci cations and design are subject to change without notice.
Light output : 100 cd
Please contact your Topeak dealer with any questions.
Weight: 29 grams (Light only)
For USA customer service call : 1-800-250-3068
www.topeak.com
User's Guide
for ø31.8mm for ø31.8~33mm
Handlebar Handlebar
2mm
Allen Key
ø31.8mm ø31.8~33.0mm
LIGHT REMOVAL
Press release button
PRESS
and slide backward
to remove the light
from the bracket.
2mm
Allen key
Copyright © Topeak, Inc. 2013
3mm
Allen Key
M-TMS061-GB 01/13
