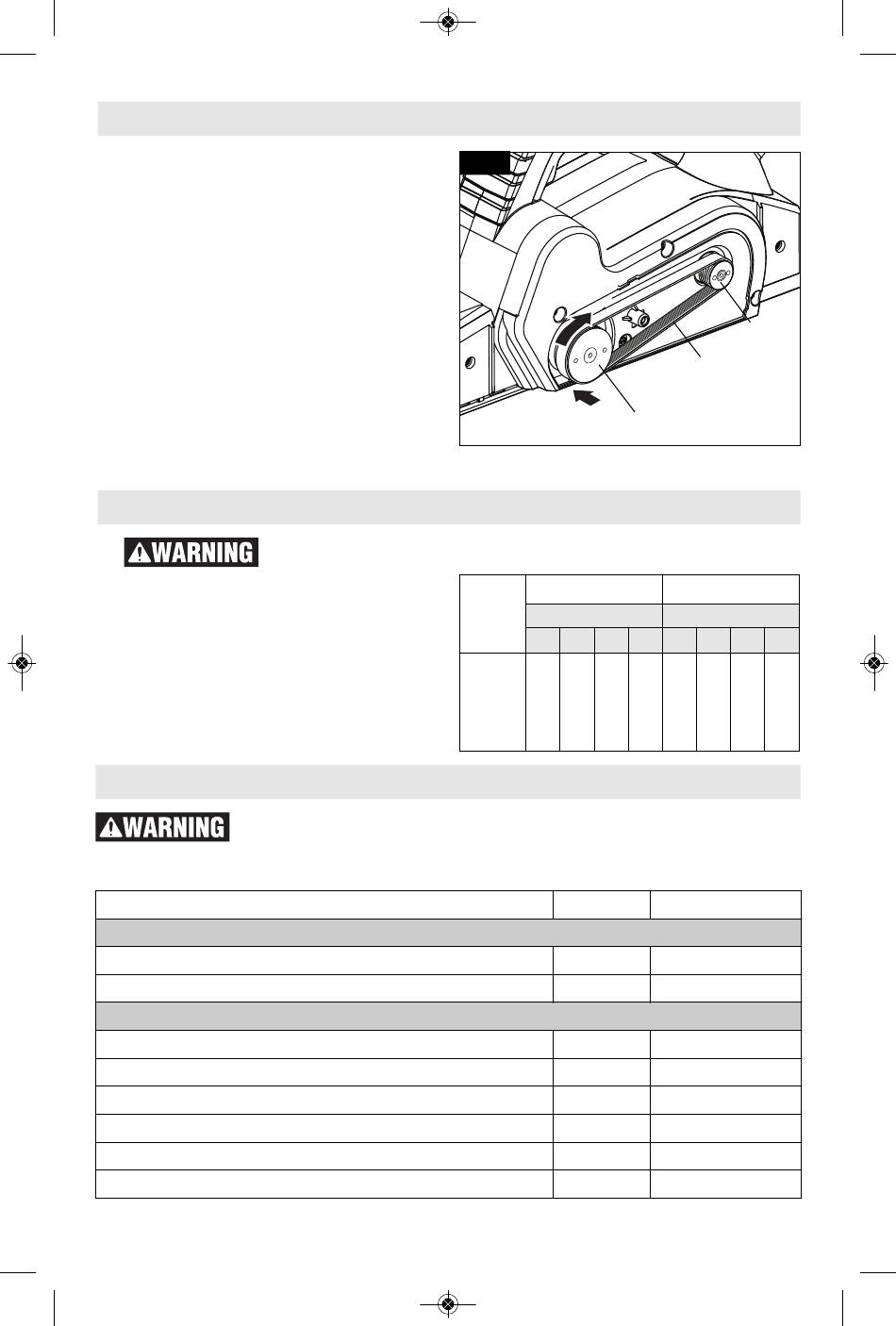

2610052959.qxp_PL1632 7/17/19 9:17 AM Page 14
part
and
periodically for wear. If the drive belt
shows signs of drying out, cracking or
tearing, it should be replaced. If the
drive belt will not track properly or
comes off the pulleys, it should be
replaced.
Installing new drive belt: Loosen screw
and remove the drive belt cover (Fig.
11). Cut and remove the worn drive
belt. Before installing the new drive
belt, clean both pulleys thoroughly. First
place the new drive belt onto the drive
pulley then rotate clockwise while
pushing the belt onto the driven pulley
(Fig. 12). Reinstall the drive belt cover
and securely tighten screw (Fig. 11).
with adequate size conductors that is
capable of carrying the current
necessary for your tool must be used.
This will prevent excessive voltage drop,
loss of power or overheating. Grounded
tools must use 3-wire extension cords
that have 3-prong plugs and receptacles.
NOTE: The smaller the gauge number,
the higher the cord capacity.
Store accessories in a dry and temperate environment to avoid corrosion and
deterioration.
Blade wrench 2.5mm
Woodrazor reversible micro-grain tungsten carbide blade
PA1207 Standard guide fence
Dual-mount guide fence with plastic overshoe
Vacuum hose adapters
Vacuum hoses
Shavings bag
PA1209 3-degree bevel overshoe for dual-mount fence
Maintenance
should
be
inspected

Extension Cords

If an extension cord
is necessary, a cord

Accessories and Attachments

The use of any other attachments or acces so ries not specified in
this manual may create a hazard.
Description
Attachments
Fig. 12
RECOMMENDED SIZES OF EXTENSION CORDS
120 VOLT ALTERNATING CURRENT TOOLS
Cord Size in A.W.G.
Tool's
Ampere
Cord Length in Feet
Rating
25
50
3-6
18
16
6-8
18
16
8-10
18
16
10-12
16
16
12-16
14
12
Included
Accessories
-14-
DRIVEN
PULLEY
DRIVE
BELT
DRIVE
PULLEY
Wire Sizes in mm
Cord Length in Meters
100
150
15
30
60
16
14
0.75
0.75
1.5
14
12
0.75
1.0
2.5
14
12
0.75
1.0
2.5
14
12
1.0
2.5
4.0
Sold Separately
2
120
2.5
4.0
4.0
