2.5. Electrical connection

WARNING: Your machine is set to
operate at 220-240 V. If the mains voltage
supply to your machine is 110 V, connect a
transformer of 110/220 V and 3000 W
between the electrical connection.
The earthed plug of the
machine must be connected to an
earthed outlet supplied by suitable
voltage and current.
In the absence of earthing
installation, an authorised
electrician should carry out an
earthing installation. In the case of use
without earthing installed, we will not be
responsible for any loss of use that may
occur.
The indoor fuse current value
should be 10-16 A.

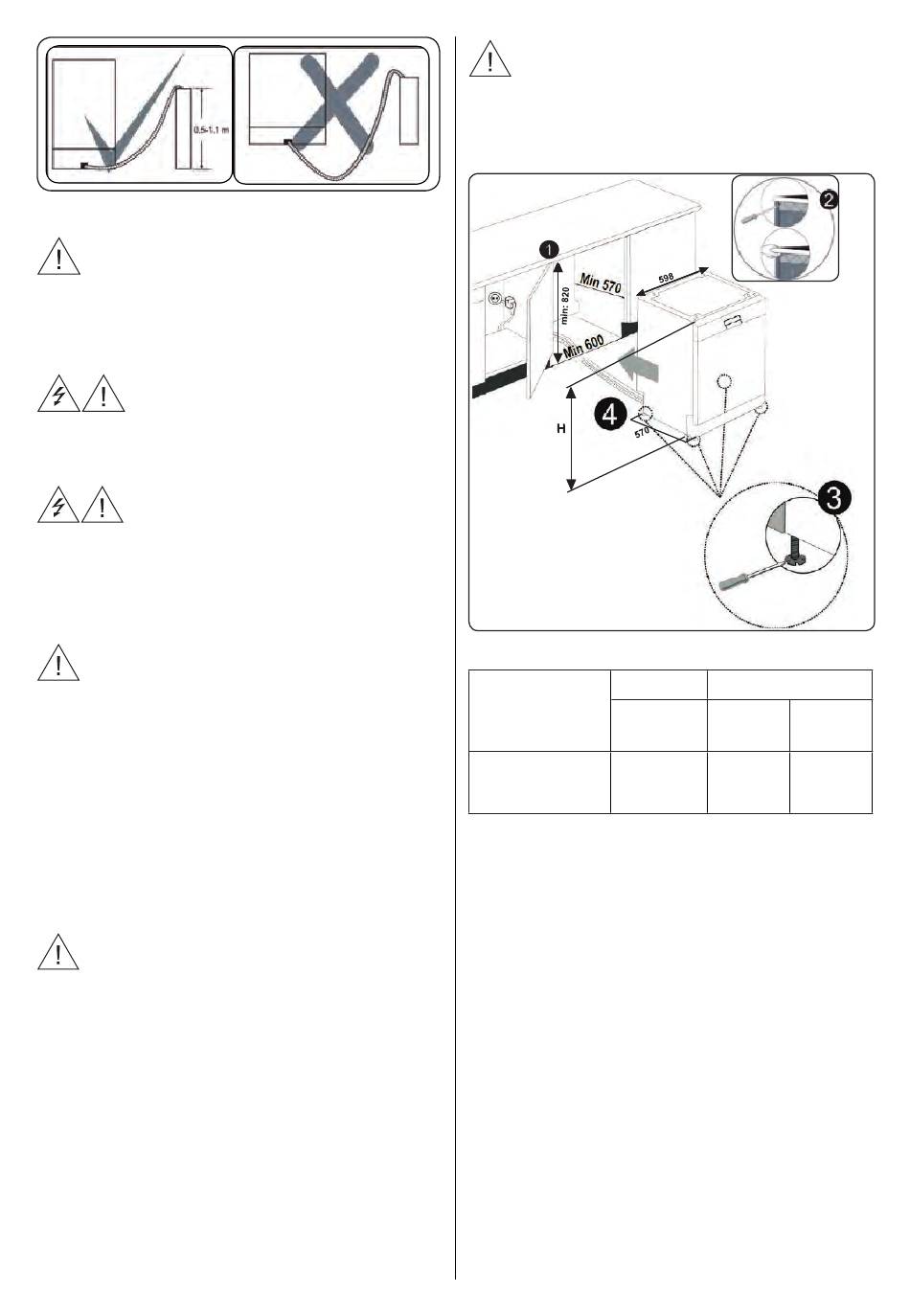

2.6. Fitting the machine undercounter

If you wish to fit your machine undercounter,
there must be sufficient space to do so and
the wiring-plumbing must be suitable to do
so (1). If the space under the countertop is
suitable for fitting your machine, if
neccessary, remove the worktop as shown
in the illustration (2).
WARNING: The countertop, of which
the machine will be placed under, must be
stable in order to prevent imbalance.
The top panel of the dishwasher must
be removed to fit the machine under the
countertop.
To remove the top panel, remove the
screws that hold it on, located at the rear
of the machine. Then, push the panel 1 cm
from the front towards the rear and lift it.
Adjust the machine feet according to the
slope of the floor (3).
Fit your machine by pushing it under the
counter taking care not to crush or bend the
hoses (4).
WARNING: After removing the top
panel of your dishwasher, the machine
should be placed in a space of the
dimensions shown in the figure below.
H1: min A
H2: min B1
H3: min B2
Product's Height
(±2 mm)
A: If there is no felt on the top of the
product; you should take into account this
product's height.
B1: If there is felt on the top of the product
with 2nd basket; you should take into
account this product's height.
B2: If there is felt on the top of the product
with 3rd basket; you should take into
account this product's height.
EN - 7
A
B
All
B
1
Products
820 mm
830 mm
B
2
835 mm
