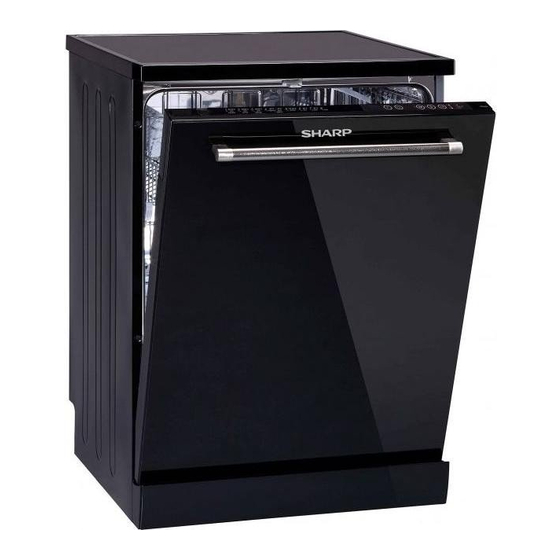

- Page 1 Home Appliances QW-D41F452B-DE Dishwasher EN-1...
- Page 3 CONTENTS CHAPTER -1: EXPLANATION OF PRODUCT Technical specifications Conformity with the standards and test data CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling Safety information Recommendations Items not suitable for dishwashing CHAPTER -3: INSTALLING THE MACHINE Positioning the machine Water connections Water inlet hose Water outlet hose Electrical connection...
- Page 4 CHAPTER -1: EXPLANATION OF PRODUCT 1. Worktop 7. Rating plate 2. Upper basket with racks 8. Control Panel 3. Upper spray arm 9. Detergent and rinse-aid dispenser 4. Lower basket 10. Salt dispenser 5. Lower spray arm 11. Upper basket track latch 6.
- Page 5 CHAPTER -1: TECHNICAL SPECIFICATIONS Technical specifications Capacity 15 place settings Height 850 mm Height (without worktop) 820 mm Width 598 mm Depth 598 mm Net Weight 55 kg Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 100 W...
- Page 6 CHAPTER -2: SAFETY INFORMATION AND RECOMMENDATIONS Recycling • The recyclable materials are used in certain components and packaging. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper which should be disposed of into waste paper collection containers for recycling.
- Page 7 • Place knives and other sharp-ended objects in the cutlery basket in bladedown position. • If the supply cord is damaged, it must be replaced by SHARP, or its service agent. • If EnergySave option is selected as “Yes”, the door will be opened at the end of the program.
- Page 8 CHAPTER -3: INSTALLING THE MACHINE Items not suitable for dishwashing: • Cigarette ash candle leftovers, polish, paint, chemical substances, ironalloy materials. • Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items,items soiled with abrasive, acidic or base chemicals. •...
- Page 9 CHAPTER -3: INSTALLING THE MACHINE Water connection Indoor plumbing must be suitable for installing a dishwasher. Also, we recommend that you fit a filter at the entrance of your property so as to avoid any damage to your machine because of contamination (sand, clay, rust etc.) that might be occasionally carried in through the mains water supply or the indoor plumbing, and to prevent such complaints as yellowing and formation of deposits after washing.
- Page 10 CHAPTER -3: INSTALLING THE MACHINE Warning: When a drain hose longer than 4 m is used, the dishes might remain dirty. In that case, Sharp will not accept responsibility. Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current.
- Page 11 CHAPTER -3: INSTALLING THE MACHINE When disconnecting your machine from the mains supply, always pull from the plug. Never pull the cord itself. Fitting the machine undercounter If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so.1 If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration.
- Page 12 CHAPTER -3: INSTALLING THE MACHINE Adjust the machines’ feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4 Product Without Insulation With Insulation All Product For 2nd Basket For 3rd Basket Height 820 mm...
- Page 13 CHAPTER -4: PREPARING THE MACHINE FOR USE Prior to using the machine for the first time • Check whether the electricity and supply water specifications match the values indicated by the installation instructions for the machine. • Remove all packaging materials inside the machine. •...
- Page 14 CHAPTER -4: PREPARING THE MACHINE FOR USE Adjusting salt consumption Water German French British Hardness Level Indicator hardness hardness hardness hardness level level dH level dF level dE L1 is seen on display. 6-11 10-20 7-14 L2 is seen on display. 12-17 21-30 15-21...
- Page 15 CHAPTER -4: PREPARING THE MACHINE FOR USE Combined detergents Combined detergents may include various properties. Before using the detergent, read the instructions carefully. Generally combined detergents produce sufficent results under certain conditions only. Points to consider when using this type of products: •...
- Page 16 The upper basket is for thin and narrow items. You are recommended to use the cutlery grid in order to obtain the best result. To avoid any possible injuries, long-handle and sharp-pointed dishes with their sharp points facing down or horizontally on the baskets.
- Page 17 The Upper Cutlery Basket is composed of two pieces; if you need to make space for the dishes in the upper bas- ket, you can take out the left or right part of the upper cutlery basket in order to obtain more space. Warning: Knives and other sharp objects must be placed horizontally in the cutlery basket. EN-17...
- Page 18 CHAPTER-5: LOADING YOUR DISHWASHER Alternative basket loads Lower Basket Top basket Faulty loads Important Note for Test Laboratories For detailed information on performance tests, please contact following address: “dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door.
- Page 19 CHAPTER -6: PROGRAMME DESCRIPTIONS PROGRAMME DESCRIPTIONS Programme items Programme names and Auto Intensive Auto Normal Auto Delicate Hygiene temperatures 60-70°C (P1) 50-60°C (P2) 30-50°C(P3) 60°C (P4) Type of food Automatically adjust the washing time with Dishes with waste temperature and amount of water by determining dense dirt the soil level of dishes waiting for...
- Page 20 CHAPTER -6: PROGRAMME DESCRIPTIONS PROGRAMME DESCRIPTIONS Programme items Programme names and 55’60°C Quick Rinse Extra Hygiene temperatures 60°C ( P5) (reference ) 40°C ( P7) ( P8 ) (Prewash+Hygiene 50°C ( P6) 60°C) 70°C Type of food soups, coffee,milk, coffee,milk,tea, Pre-wash Pre-wash tor ise waste...
- Page 21 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Switching on the machine Machine is energized when the On/Off button is pressed , two dashes appear in the program display and the end of program indicator turns on. When you select a program with the program selection button,the program you select ( P1,P2,etc )appears on the program display and the end of...
- Page 22 CHAPTER -7: SWITCHING ON THE MACHINE AND SELECTING A PROGRAMME Changing a programme with resetting If you would like to cancel a program while a washing program is resumed. Open the door of your machine. The last selected program will appear on the screen.
- Page 23 CHAPTER -8: MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machines’ service life. Oil and lime may accumulate in the machines’ washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, run the machine at high temperature.
- Page 24 If the lamps “Wash/Dry” and “End” keep flashing • The water overflow alarm is active • Turn off your tap and contact the Sharp help desk. If the control lamps won’t go out after a wash operation Check if the Power On/Off button is released.
- Page 25 CHAPTER -10: PRACTICAL AND USEFUL INFORMATION If there are whitish stains on the dishes • insufficient detergent is being used • Rinse aid dosage setting at a very low level. • No special salt is being used despite the high degree of water hardness. •...
- Page 26 DISPOSAL OF YOUR OLD MACHINE This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to waste collection places recycling electrical and electronic equipment. You will help avoid damage to the environment and risks to public health. Recycling materials will help natural resources to be preserved.
- Page 27 Service & Support Visit Our Website sharphomeappliances.com EN-2 52251893 R35...
