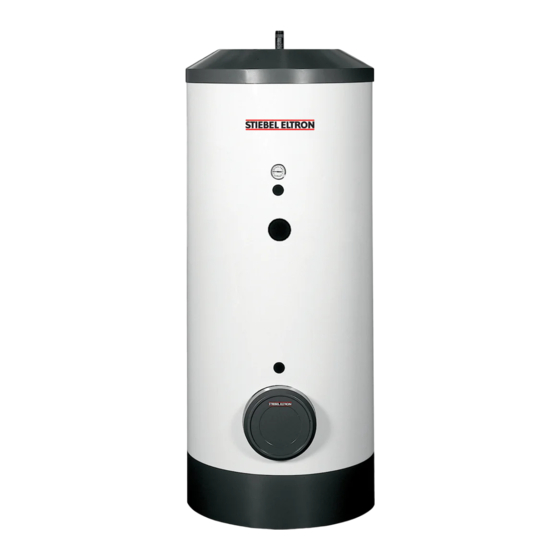

Summary of Contents for STIEBEL ELTRON SBB 300 plus
- Page 1 BEDIENUNG UND INSTALLATION OPERATION AND INSTALLATION Solar-Warmwasserspeicher | DHW tank for solar systems » SBB 300 plus » SBB 400 plus » SBB 600 plus...
-
Page 2: Table Of Contents
CONTENTS | SPECIAL INFORMATION General information OPERATION OPERATION General information ��������������������������������������� 15 Safety instructions ���������������������������������������������� 15 Other symbols in this documentation ���������������������� 16 General information Units of measurement ����������������������������������������� 16 Safety �������������������������������������������������������� 16 The chapter "Operation" is intended for appliance users and qual- Intended use �����������������������������������������������������... -
Page 3: Operation
OPERATION Safety Other symbols in this documentation Safety Note Intended use General information is identified by the adjacent symbol. The appliance is intended for heating domestic hot water in con- f Read these texts carefully. junction with solar collectors and optionally with further heat sources for reheating the upper half of the cylinder. -
Page 4: Cleaning, Care And Maintenance
OPERATION Cleaning, care and maintenance Cleaning, care and maintenance f Have the function of the safety assembly and electrical safe- ty of the fitted accessories regularly checked by a qualified contractor. f Have the protective anode checked by a qualified contractor after the first two years of use. -
Page 5: Installation
INSTALLATION Safety INSTALLATION Preparations Installation site f Always install the appliance in a room free from the risk of Safety frost and near the draw-off point. f Ensure the floor has sufficient load bearing capacity and Only a qualified contractor should carry out installation, commis- evenness (see chapter “Specification / Data table”). -
Page 6: Transport
INSTALLATION Installation Installation Transport Material losses Cylinder casing We recommend removing the cylinder casing for trans- portation to the installation location to prevent it from Note becoming dirty or damaged. Open or remove the cylinder casing before fitting the DHW circulation and indirect coil lines. -
Page 7: Water Connection And Safety Assembly
INSTALLATION Installation Water connection and safety assembly SBB 300-400 plus 9.4.1 Safety instructions Note Carry out all water connection and installation work in accordance with regulations. Material losses For the combined use of a threaded immersion heater 1 Cold water connection and plastic pipework systems, observe the maximum 2 Cold water inlet pipe permissible temperature and the maximum permissible... -
Page 8: Thermometer
INSTALLATION Commissioning 12. Maintenance Thermometer WARNING Electrocution Carry out all electrical connection and installation work in accordance with relevant regulations. If you need to drain the appliance, observe chapter "Draining the appliance". 12.1 Draining the appliance WARNING Burns Hot water may escape during the draining process. If the appliance needs to be drained for maintenance or to protect 1 Thermometer the whole installation when there is a risk of frost, proceed as... -
Page 9: Specification
INSTALLATION Specification 13. Specification 13.1 Dimensions and connections Appliance sectional view | SBB 300-600 plus www.stiebel-eltron.com... - Page 10 INSTALLATION Specification SBB 300 plus SBB 300 plus Cold water inlet Male thread G 1 A Cold water inlet pipe Male thread G 1 A DHW outlet Male thread G 1 A DHW circulation Male thread G 1/2 A Solar flow...
- Page 11 INSTALLATION Specification SBB 400 plus SBB 400 plus Cold water inlet Male thread G 1 A Cold water inlet pipe Male thread G 1 A DHW outlet Male thread G 1 A DHW circulation Male thread G 1/2 A Solar flow Female thread Solar return Female thread...
- Page 12 INSTALLATION Specification SBB 600 plus SBB 600 plus Appliance Width excl. side insulation sections Cold water inlet Male thread G 1 A DHW outlet Male thread G 1 A DHW circulation Male thread G 1/2 A Solar flow Female thread Solar return Female thread Heating flow...
-
Page 13: Details On Energy Consumption
INSTALLATION Specification 13.2 Details on energy consumption The product data complies with EU regulations relating to the Directive on the ecological design of energy related products (ErP). SBB 300 plus SBB 400 plus SBB 600 plus 187873 187874 187875 Manufacturer... -
Page 14: Guarantee
GUARANTEE | ENVIRONMENT AND RECYCLING Guarantee The guarantee conditions of our German companies do not apply to appliances acquired outside of Germany. In countries where our subsidiaries sell our products a guarantee can only be issued by those subsidiaries. Such guarantee is only grant- ed if the subsidiary has issued its own terms of guarantee. - Page 15 Deutschland Verkauf Tel. 05531 702-110 | Fax 05531 702-95108 | info-center@stiebel-eltron.de STIEBEL ELTRON GmbH & Co. KG Kundendienst Tel. 05531 702-111 | Fax 05531 702-95890 | kundendienst@stiebel-eltron.de Dr.-Stiebel-Straße 33 | 37603 Holzminden Ersatzteilverkauf Tel. 05531 702-120 | Fax 05531 702-95335 | ersatzteile@stiebel-eltron.de Tel.
