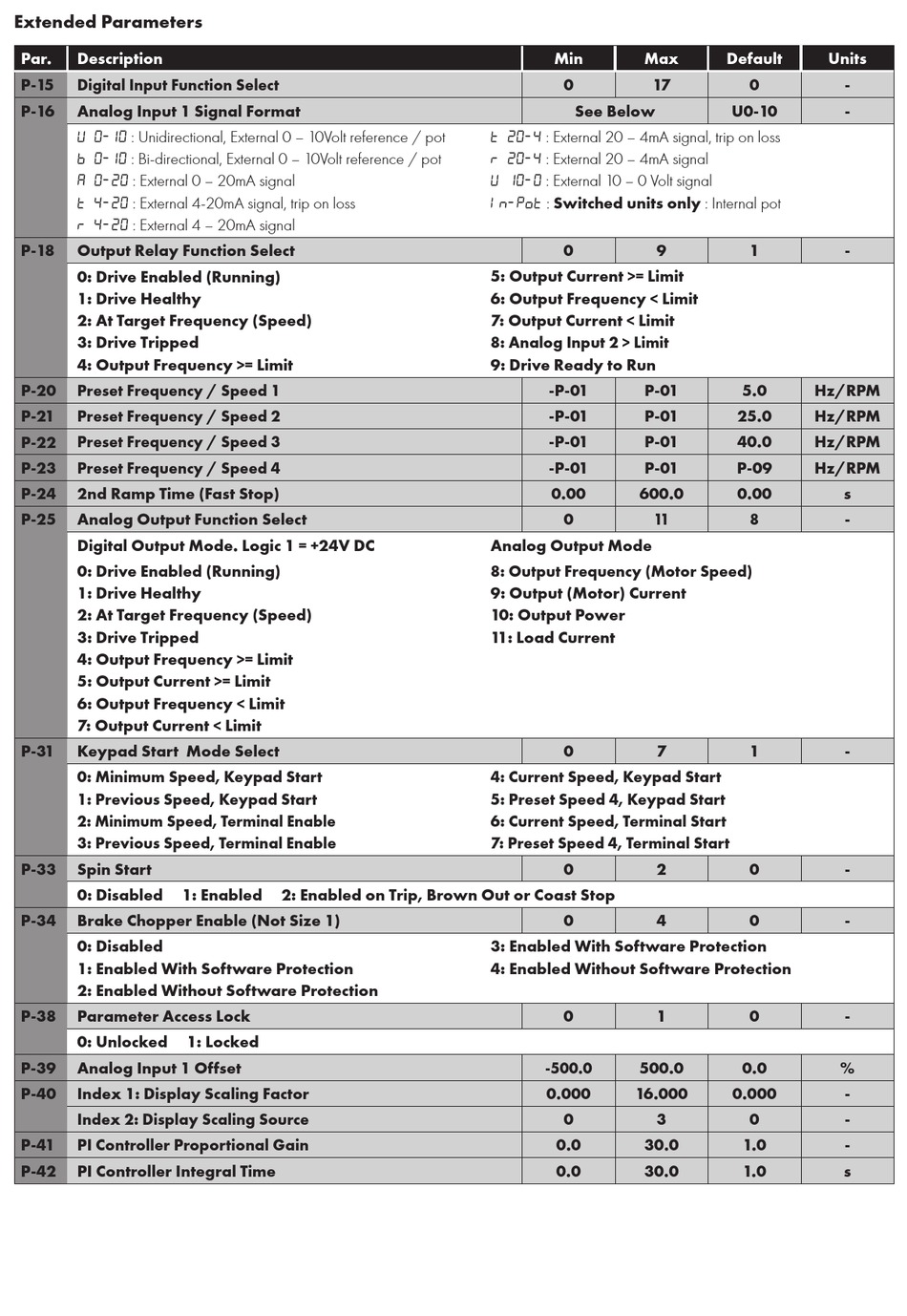

Extended Parameters

Par. Description
P-15 Digital Input Function Select
P-16 Analog Input 1 Signal Format
U  : Unidirectional, External 0 – 10Volt reference / pot
B  : Bi-directional, External 0 – 10Volt reference / pot
  : External 0 – 20mA signal
 4 : External 4-20mA signal, trip on loss
r 4 : External 4 – 20mA signal
P-18 Output Relay Function Select
0: Drive Enabled (Running)
1: Drive Healthy
2: At Target Frequency (Speed)
3: Drive Tripped
4: Output Frequency >= Limit
P-20 Preset Frequency / Speed 1
P-21 Preset Frequency / Speed 2
P-22 Preset Frequency / Speed 3
P-23 Preset Frequency / Speed 4
P-24 2nd Ramp Time (Fast Stop)
P-25 Analog Output Function Select
Digital Output Mode. Logic 1 = +24V DC
0: Drive Enabled (Running)
1: Drive Healthy
2: At Target Frequency (Speed)
3: Drive Tripped
4: Output Frequency >= Limit
5: Output Current >= Limit
6: Output Frequency < Limit
7: Output Current < Limit
P-31 Keypad Start Mode Select
0: Minimum Speed, Keypad Start
1: Previous Speed, Keypad Start
2: Minimum Speed, Terminal Enable
3: Previous Speed, Terminal Enable
P-33 Spin Start
0: Disabled 1: Enabled
P-34 Brake Chopper Enable (Not Size 1)
0: Disabled
1: Enabled With Software Protection
2: Enabled Without Software Protection
P-38 Parameter Access Lock
0: Unlocked
P-39 Analog Input 1 Offset
P-40 Index 1: Display Scaling Factor
Index 2: Display Scaling Source
P-41 PI Controller Proportional Gain
P-42 PI Controller Integral Time
2: Enabled on Trip, Brown Out or Coast Stop
1: Locked
Min Max
0 17
See Below
 4 : External 20 – 4mA signal, trip on loss
r 4 : External 20 – 4mA signal
U  : External 10 – 0 Volt signal
n : Switched units only : Internal pot
0 9
5: Output Current >= Limit
6: Output Frequency < Limit
7: Output Current < Limit
8: Analog Input 2 > Limit
9: Drive Ready to Run
-P-01 P-01
-P-01 P-01
-P-01 P-01
-P-01 P-01
0.00 600.0
0 11
Analog Output Mode
8: Output Frequency (Motor Speed)
9: Output (Motor) Current
10: Output Power
11: Load Current
0 7
4: Current Speed, Keypad Start
5: Preset Speed 4, Keypad Start
6: Current Speed, Terminal Start
7: Preset Speed 4, Terminal Start
0 2
0 4
3: Enabled With Software Protection
4: Enabled Without Software Protection
0 1
-500.0 500.0
0.000 16.000
0 3
0.0 30.0
0.0 30.0
Default Units
0 -
U0-10 -
1 -
5.0 Hz/RPM
25.0 Hz/RPM
40.0 Hz/RPM
P-09 Hz/RPM
0.00 s
8 -
1 -
0 -
0 -
0 -
0.0 %
0.000 -
0 -
1.0 -
1.0 s
