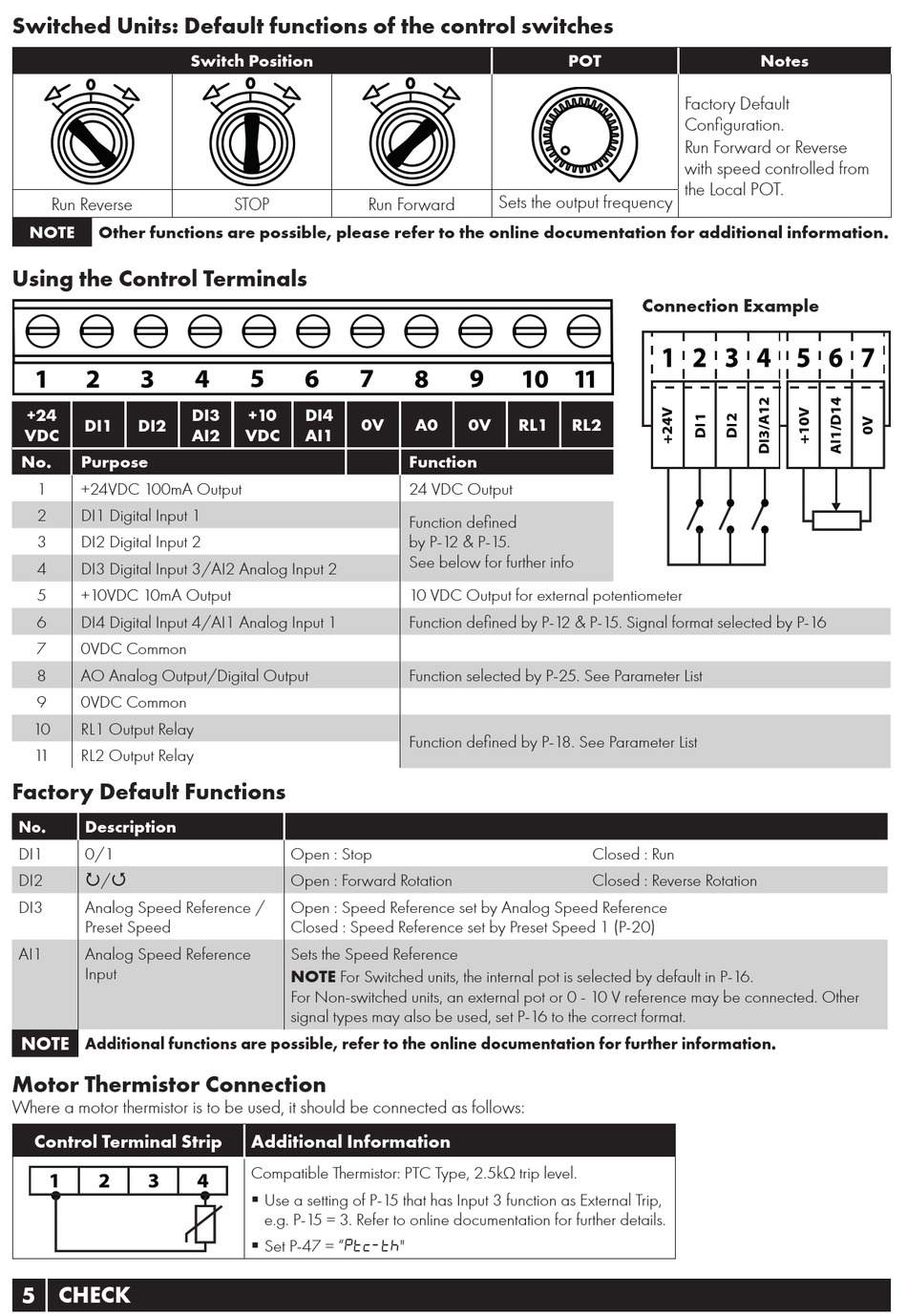

Switched Units: Default functions of the control switches
Run Reverse
NOTE
Other functions are possible, please refer to the online documentation for additional information.
Using the Control Terminals
+24
DI1
DI2
VDC
No.
Purpose
1
+24VDC 100mA Output
2
DI1 Digital Input 1
3
DI2 Digital Input 2
4
DI3 Digital Input 3/AI2 Analog Input 2
5
+10VDC 10mA Output
6
DI4 Digital Input 4/AI1 Analog Input 1
7
0VDC Common
8
AO Analog Output/Digital Output
9
0VDC Common
10
RL1 Output Relay
1 1
RL2 Output Relay
Factory Default Functions
No.
Description
DI1
0/1
DI2
/
DI3
Analog Speed Reference /
Preset Speed
AI1
Analog Speed Reference
Input
NOTE
Additional functions are possible, refer to the online documentation for further information.

Motor Thermistor Connection

Where a motor thermistor is to be used, it should be connected as follows:
Control Terminal Strip
5 CHECK
Switch Position
STOP
DI3
+10
DI4
AI2
VDC
AI1
Open : Stop
Open : Forward Rotation
Open : Speed Reference set by Analog Speed Reference
Closed : Speed Reference set by Preset Speed 1 (P-20)
Sets the Speed Reference
NOTE For Switched units, the internal pot is selected by default in P-16.
For Non-switched units, an external pot or 0 - 10 V reference may be connected. Other
signal types may also be used, set P-16 to the correct format.
Additional Information
Compatible Thermistor: PTC Type, 2.5kΩ trip level.
 U se a setting of P-15 that has Input 3 function as External Trip,
e.g. P-15 = 3. Refer to online documentation for further details.
 Set P-47 = ""
Sets the output frequency
Run Forward
0V
A0
0V
RL1
Function
24 VDC Output
Function defined
by P-12 & P-15.
See below for further info
10 VDC Output for external potentiometer
Function defined by P-12 & P-15. Signal format selected by P-16
Function selected by P-25. See Parameter List
Function defined by P-18. See Parameter List
POT
Factory Default
Configuration.
Run Forward or Reverse
with speed controlled from
the Local POT.
Connection Example
RL2
Closed : Run
Closed : Reverse Rotation
Notes
