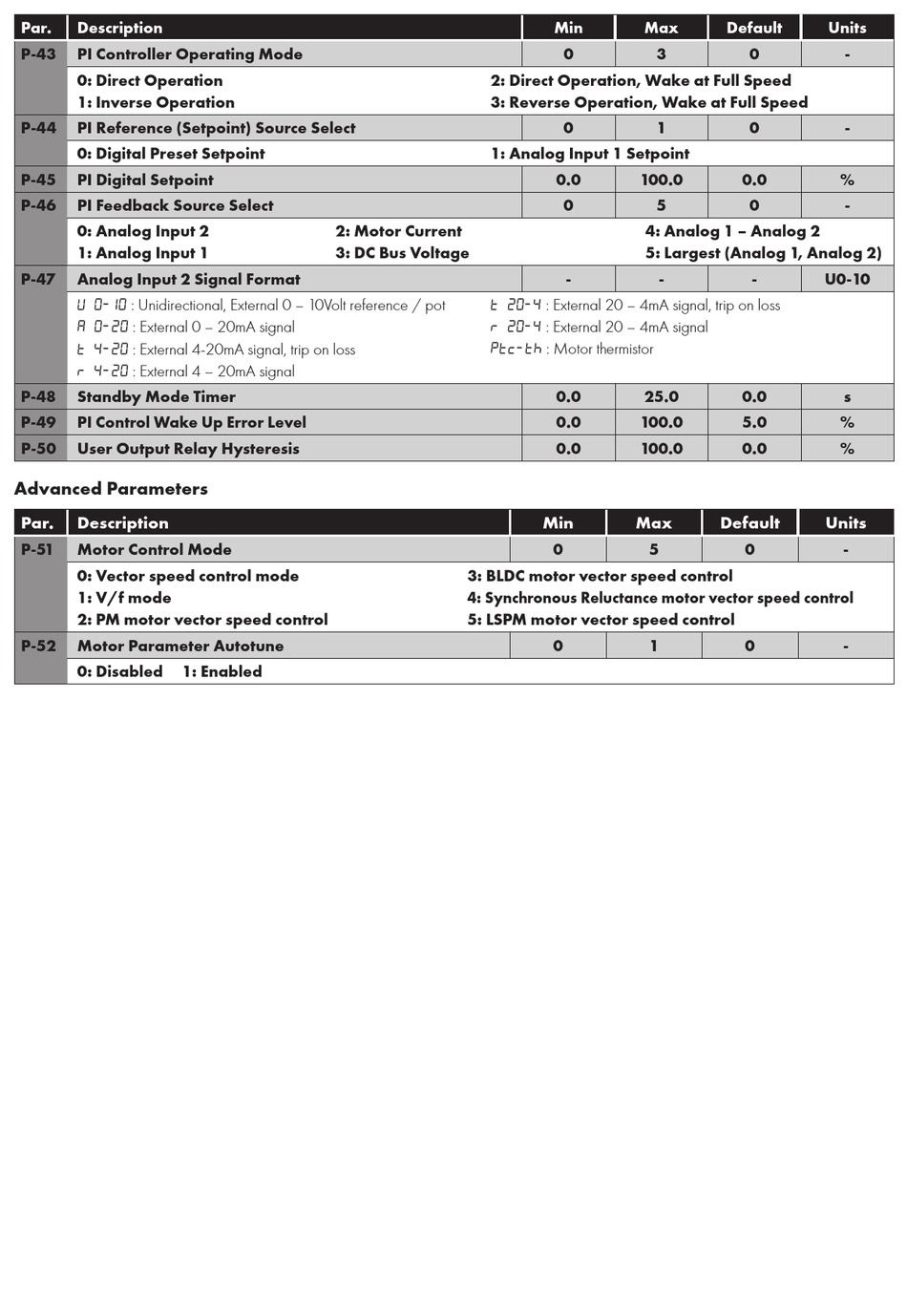

Advanced Parameters - Invertek Drives OPTIDRIVE E3 Series Quick Start Manual

Par. Description
P-43 PI Controller Operating Mode
0: Direct Operation
1: Inverse Operation
P-44 PI Reference (Setpoint) Source Select
0: Digital Preset Setpoint
P-45 PI Digital Setpoint
P-46 PI Feedback Source Select
0: Analog Input 2
1: Analog Input 1
P-47 Analog Input 2 Signal Format
U  : Unidirectional, External 0 – 10Volt reference / pot
  : External 0 – 20mA signal
 4 : External 4-20mA signal, trip on loss
r 4 : External 4 – 20mA signal
P-48 Standby Mode Timer
P-49 PI Control Wake Up Error Level
P-50 User Output Relay Hysteresis

Advanced Parameters

Par. Description
P-51 Motor Control Mode
0: Vector speed control mode
1: V/f mode
2: PM motor vector speed control
P-52 Motor Parameter Autotune
0: Disabled 1: Enabled
2: Direct Operation, Wake at Full Speed
3: Reverse Operation, Wake at Full Speed
1: Analog Input 1 Setpoint
2: Motor Current
3: DC Bus Voltage
 4 : External 20 – 4mA signal, trip on loss
r 4 : External 20 – 4mA signal
 : Motor thermistor
3: BLDC motor vector speed control
4: Synchronous Reluctance motor vector speed control
5: LSPM motor vector speed control
Min Max
0 3
0 1
0.0 100.0
0 5
4: Analog 1 – Analog 2
5: Largest (Analog 1, Analog 2)
- -
0.0 25.0
0.0 100.0
0.0 100.0
Min Max
0 5
0 1
Default Units
0 -
0 -
0.0 %
0 -
- U0-10
0.0 s
5.0 %
0.0 %
Default Units
0 -
0 -
