PROFESSIONAL MEDICAL PRODUCTS
PULSOXIMETRO OXY 110

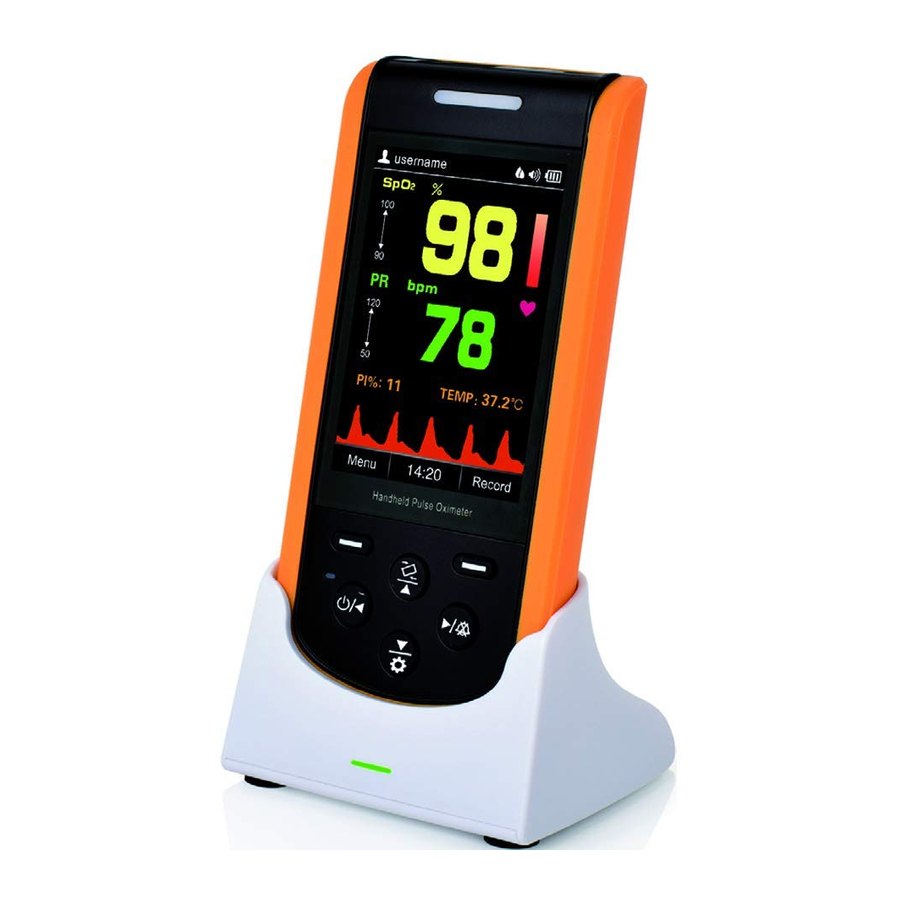

OXY 110 PULSE OXIMETER
PULSIOXÍMETRO OXY 110
OXYMÈTRE DE POULS OXY 110
Manuale d'uso - User manual
Manuel de l'utilisateur - Guía de uso
ATTENZIONE: Gli operatori devono leggere
e capire completamente questo manuale
prima di utilizzare il prodotto.
ATTENTION: The operators must carefully read
and completely understand the present manual
before using the product.
AVIS: Les opérateurs doivent lire et bien
comprendre ce manuel avant d'utiliser le produit.
ATENCIÓN: Los operadores tienen que leer y entender
completamente este manual antes de utilizar el producto.
34341 / SP-20
Shenzhen Creative Industry Co., Ltd.
2/F, Block 3, Nanyou Tian'an Industry Town,
Shenzhen 518054 P. R. China
Made in China
Shanghai International
Holding Corp. GmbH (Europe)
Eiffestrasse 80, 20537, Hamburg, Germany
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
0123

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OXY 110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gima OXY 110

Summary of Contents for Gima OXY 110

  • Page 1 PROFESSIONAL MEDICAL PRODUCTS PULSOXIMETRO OXY 110 OXY 110 PULSE OXIMETER PULSIOXÍMETRO OXY 110 OXYMÈTRE DE POULS OXY 110 Manuale d’uso - User manual Manuel de l’utilisateur - Guía de uso ATTENZIONE: Gli operatori devono leggere e capire completamente questo manuale prima di utilizzare il prodotto.
  • Page 2 ENGLISH Dear Customer, Thank you for purchasing this quality product. Please read the manual very care- fully before using this device. Failure to follow these instructions can cause mea- suring abnormality or damage to the Oximeter. No part of this manual may be photocopied, reproduced or translated into another language without the prior written consent.
  • Page 3 ENGLISH  Biocompatibility tests have been performed on all the applied parts, some exceptional allergic patients may still have anaphylaxis. Do not apply to those who have anaphylaxis.  For the individual patients, there should be a more prudent inspecting in the placing process.

  • Page 4: Table Of Contents

    ENGLISH Table of Contents 1 Overview ......................40 1.1 Appearance ....................40 1.2 Product Name and Model ................42 1.3 Structure .....................42 1.4 Features ......................42 1.5 Intended Use ....................42 1.6 Working Environment .................42 2 Power Supply ....................43 3 Make Measurement..................45 3.1 SpO Measurement ..................45 3.2 Temperature Measurement (optional) ............46 4 Operation......................47 4.1 Power on/off the Oximeter .................47...

  • Page 5: Overview

    ENGLISH 1 Overview 1.1 Appearance Alert indicator Display screen Menu/Confirm Record/Back Rotate-lock /Up Power indicator Right/Mute Power/Left Setting/Down Figure 1.1 Front view TEMP: Temperature probe probe connector connector Figure 1.2 Upper-side view USB connector DC power input contact shoes with polarity Figure 1.3 Bottom side view indication...
  • Page 6 ENGLISH 1. Display screen: Display measurement result, trends and menus. (Power/Left): Power on/off the device by longtime pressing; On menu or sub-menu screen, short time press it to move the cursor left or adjust the parameter values. (Right/Mute): On data recall screen, longtime press this key, then the delete dialog pops up;...

  • Page 7: Product Name And Model

    ENGLISH 1.2 Product Name and Model Name: Handheld Pulse Oximeter Model: SP-20 1.3 Structure It consists of the main unit and SpO probe. (Note: with optional temperature prob, this Oximeter can make temperature me- asurement.) 1.4 Features • It is lightweight, small in size and easy to carry •...

  • Page 8: Power Supply

    ENGLISH 2 Power Supply 1. Internal power supply with built-in battery: Built-in battery specification: 2000mAh lithium battery. 2. External power from the AC power adapter: Use the AC power adapter provided by the manufacturer. Make sure the mains power supply is 100-240VAC with 50/60Hz. 3.
  • Page 9 ENGLISH Oximeter Insert the oximeter into the base by this direction Base Figura 2.2 Connection between oximeter and base...

  • Page 10: Make Measurement

    ENGLISH 3 Make Measurement 3.1 SpO Measurement Operation procedures: 1. Connect the SpO probe to the connector on the upper-side of the device mar- ked with “SpO ”. (Note: When disconnecting the connector, be sure to hold the head of the connector firmly and pull). 2.

  • Page 11: Temperature Measurement (Optional)

    ENGLISH  The SpO sensor cannot be immersed into water, liquid or cleanser.  The SpO sensor can be repeatedly used. Please clean and disinfect before reuse.  Connector with the label “SpO ” can only be connected with SpO probe, and connector with the label “TEMP”...

  • Page 12: Operation

    ENGLISH • The infrared temperature probe will switch to standby state automatically if there is no operation for 1 minute. If a further measurement is needed, press the measuring key and repeat step 2 and step 3. • Normal body temperature varies depending on the position/area the measure- ment is taken from.

  • Page 13: Default Display Screen

    ENGLISH 4.2 Default Display Screen Press power key for 2 seconds to start up the Oximeter, then the screen will display the default screen, as shown in Figure 4.2. Rotate-lock icon Wireless icon Auto power off Recording mode disable icon Sound indicator User ID Battery indicator...

  • Page 14: Menu

    ENGLISH Figure 4.2B Default Display Screen---in horizontal • Sound indicator means the device is on mute status, the user can resume the indication sound by short pressing key again. Short time press key can turn off (or resume) the device sound (including pulse beep sound, audible alert and key click), while the pulse symbol still blinks.
  • Page 15 ENGLISH • Recording mode: Select the data recording mode, “Spot-check Record” and “Trend Record” for option. • SpO record: Recall and review the records stored on the oximeter, two types of record for option: “Spot-check Record” and “Trend Record”, see Section 4.4 for details.
  • Page 16 ENGLISH Figure 4.4A User ID setup screen Move the cursor on “Edit” and press Confirm key , when the cursor turns to blue, then the user can edit the User ID, and move the cursor on “OK” to confirm the edit, the edit screen is as shown in figure 4.4B.
  • Page 17 ENGLISH 4.3.3 Recording Mode On main menu screen, move the cursor on “Recording Mode” and press Confirm key , then the oximeter enters into Recording Mode Setup screen, as shown in figure 4.6. Figure 4.6 Recording mode setup screen Note: When selecting “Spot-check Record” for data recording, the measuring time should last over 10 seconds to get one spot-check reading, or no reading value will not be recorded in Spot-check data record;...
  • Page 18 ENGLISH 4.3.5 TEMP Record On main menu screen, move the cursor on “TEMP Record” and press Confirm key , then the oximeter enters into temperature record list screen, as shown in figure 4.8. Figure 4.8 TEMP record list screen 4.3.6 Date On main menu screen, move the cursor on “Date”...
  • Page 19 ENGLISH Date Format: DD-YY-MM; Time Format: HH:MM:SS Note: The setting operations of other parameters (such as User ID, User, Auto Power Off, Power Saving etc.) are the same with date setting. 4.3.7 Setting On main menu screen, move the cursor on “Setting” and press Confirm key , then the oximeter enters into system setting screen, as shown in figure 4.10.
  • Page 20 ENGLISH Figure 4.10A Brightness setup Figure 4.10B Volume setup Figure 4.10C Language setup Figure 4.10D Auto Power OFF setup Figure 4.10E Wireless setup Figure 4.10F Power Saving setup Figure 4.10G TEMP unit setup Figure 4.10H Default setting...
  • Page 21 ENGLISH Figure 4.10I Version info Figure 4.10J Demo mode Notes: • When the Auto Power Off is set to “On” option, if there is no key operation for 3 minutes, then the oximeter will power off automatically. • When the Power Saving Mode is set to “On” option, during the measurement, if there is no key operation for 1 minute, the screen display will be dim for power saving.
  • Page 22 ENGLISH • SpO Lo-Limit: SpO low limit setting; range: 50%~99%, the step is 1%. The factory default value for adult is 90% and 95% for Neonate. • PR Hi-Limit: High limit setting of pulse rate; range: 100~240bpm. From 100 to 150, the step is 1bpm, and from 150 to 240, the step is 5bpm. The factory default value for adult is 120bpm and 160bpm for neonate.

  • Page 23: Record

    ENGLISH 4.4 Record 4.4.1 Data Recall On main default screen, short time press Record/Back key to enter into data recall screen, as shown in figure 4.13. Figure 4.13 SpO record records include two types, Spot-check and Trend Record, Spot-check Re- cord is a list showing the recording time, SpO value and pulse rate value for each spot-checking event, as shown in figure 4.14.
  • Page 24 ENGLISH The corresponding User and User ID for the selected record Figure 4.15 Trend record---List The corresponding User and Recording User ID for the time selected record trend graph PR trend graph Figure 4.16 Trend record--- Trend graph...
  • Page 25 ENGLISH 4.4.2 Data Deletion On the record list screen shown in figure 4.14 or 4.15, move the cursor on the record you want to delete, and longtime pressing Mute/Right key ( ), then an message “Are you sure to delete all?” prompts on the screen, as shown in figure 4.16.

  • Page 26: Technical Specifications

    ENGLISH The SP-20 can pair and transmit with the host under the wireless coexistence environment, but other wireless device may still interface with pairing and tran- smission between the host and the SP-20 device under uncertain environment. If the host and the SP-20 display inconsistent, you may need to change the environment.
  • Page 27 ENGLISH Measuring accuracy: ±0.2°C for temperature range from 35.0°C to 42.0°C, and ±0.3°C for the rest. Response time: ≤5s Patient Group: Adult and Neonate Measuring site: earhole Deviation: ≤0.1°C G. Operating Environment Operating Temperature: 5°C ~40°C Operating Humidity: 15%~93% Atmospheric pressure: 70kPa~106kPa Note: portable and mobile RF communications equipment may affect the per- formance of the Oximeter.

  • Page 28: Over-Limit Indication

    ENGLISH Note: The oximeter is calibrated in the factory before sale, and there is no need for user to calibrate again. 6 Over-limit Indication 6.1 Limit settings • SpO low limit setting range: 50%~99%. • Pulse Rate limits setting range: High: 100bpm--240bpm Low: 30bpm--99bpm During the measurement, if the measured value exceeds the preset value, the...

  • Page 29: Repair And Maintenance

    ENGLISH Notes: 1. The accessories are subject to change. See the package in your hand for detailed items and quantity. 2. All the parts of the device should NOT be replaced at will. If necessary, please use the components provided by the manufacture or those that are of the same model and standards as the accessories along with the device which are provided by the same factory.

  • Page 30: Troubleshooting

    ENGLISH 9 Troubleshooting Trouble Possible Reason Solution Unstable SpO 1. The finger is not placed 1. Place the finger and Pulse Rate far enough inside. correctly inside and display 2. The finger is shaking or try again. the patient is moving. 2.

  • Page 31: Frequently Asked Questions

    ENGLISH 10 Frequently Asked Questions 1. Q: What’s SpO A: SpO means the saturation percentage of oxygen in the blood. 2. Q: What’s the normal range of SpO value for healthy people? A: The normal range varies by individual, but usually over 95%, otherwise, please consult your physician.

  • Page 32: Appendix

    ENGLISH Appendix I Key of Symbols Symbol Description %SpO The oxygen saturation Perfusion Index Pulse rate (Unit: beats per minute) Pulse bar graph Low battery voltage Battery is full Speaker mute icon Symbols on the screen Speaker volume icon spot-check record memory full trend record memory full Temperature memory full Wireless transmission icon...
  • Page 33 ENGLISH Symbol Description probe connector TEMP Temperature probe connector Power/Left Key Mode/Right Key Rotate-lock/Up Key Setting/Down Key Menu/Confirm key or Record/Back key CE mark Symbols Serial number on the panels Date of manufacture Manufacturer (including address) With Type BF applied part See User Manual Disposal of this device according to WEEE regulations...

  • Page 34: Common Knowledge

    ENGLISH II Common Knowledge 1 Meaning of SpO is the saturation percentage of oxygen in the blood, so called O2 concentra- tion in the blood; it is defined by the percentage of oxyhemoglobin (HbO ) in the total hemoglobin of the arterial blood. SpO is an important physiological parameter to reflect the respiration function;...
  • Page 35 ENGLISH • Vascular dyes or external used color-up product such as nail enamel or color skin care • Excessive patient movement • Placement of a sensor on an extremity with a blood pressure cuff, arterial cathe- ter, or intravascular line •...
