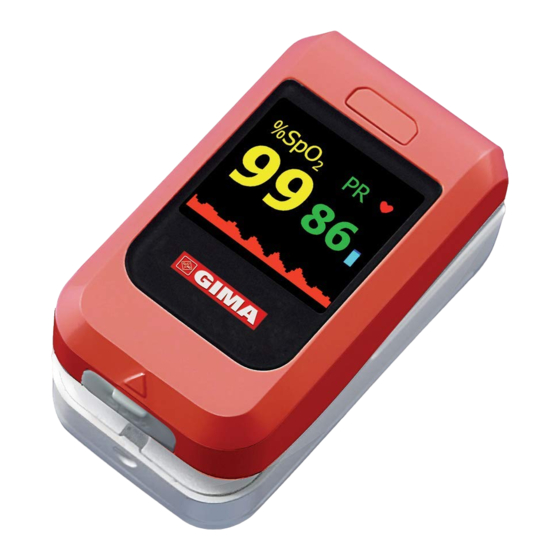

Gima OXY-10 User Manual
Hide thumbs Also See for OXY-10:

Advertisement

Quick Links

PROFESSIONAL MEDICAL PRODUCTS
OXY-10 PULSOXIMETRO
OXY-10 PULSE OXIMETER
OXY-10 OXYMÈTRE DE POULS
OXY-10 OXÍMETRO DE DEDO
OXY-10 OXÍMETRO DE DEDO
OXY-10 FINGERPULSOXIMETER
OXY-10 PULSOKSYMETR NAPALCOWY
ΟΞΎΜΕΤΡΟ ΔΑΚΤΎΛΟΎ
OXY-10
Manuale d'uso - User manual - Manuel de l'utilisateur - Guía de Uso
Guia para utilização - Gebrauchsanweisung - Instrukcja obsługi
Οδηγίες χρήσης -
ATTENZIONE: Gli operatori devono leggere e capire
completamente questo manuale prima di utilizzare il prodotto.
ATTENTION: The operators must carefully read and completely
understand the present manual before using the product.
AVIS: Les opérateurs doivent lire et bien
comprendre ce manuel avant d'utiliser le produit.
ATENCIÓN: Los operadores tienen que leer
y entender completamente este manual antes
de utilizar el producto.
ATENÇÃO: Os operadores devem ler e entender
completamente este manual antes de usar o produto
ACHTUNG: Die Bediener müssen vorher dieses
Handbuch gelesen und verstanden haben,
bevor sie das Produkt benutzen.
UWAGA: przed rozpoczęciem użytkowania wyrobu operatorzy
muszą przeczytać podręcznik i upewnić się, iż wszystko to,
co jest w nim napisane jest dla nich jasne i zrozumiałe.
ΠΡΟΣΟΧΗ: Οι χειριστές αυτού του προϊόντος πρέπει να διαβάσουν και να
καταλάβουν πλήρως τις οδηγίες του εγχειριδίου πριν από την χρήση του.
35095
Gima S.p.A
Via Marconi, 1 - 20060 Gessate (MI) Italy
Made in China
Gima S.p.A.
Via Marconi, 1 - 20060 Gessate (MI) Italy
gima@gimaitaly.com - export@gimaitaly.com
www.gimaitaly.com
OXY-10
0476

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OXY-10 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Gima OXY-10

  • Page 1 Via Marconi, 1 - 20060 Gessate (MI) Italy gima@gimaitaly.com - export@gimaitaly.com www.gimaitaly.com PROFESSIONAL MEDICAL PRODUCTS OXY-10 PULSOXIMETRO OXY-10 PULSE OXIMETER OXY-10 OXYMÈTRE DE POULS OXY-10 OXÍMETRO DE DEDO OXY-10 OXÍMETRO DE DEDO OXY-10 FINGERPULSOXIMETER OXY-10 PULSOKSYMETR NAPALCOWY ΟΞΎΜΕΤΡΟ ΔΑΚΤΎΛΟΎ OXY-10 OXY-10 Manuale d’uso - User manual - Manuel de l’utilisateur - Guía de Uso...
  • Page 2 ENGLISH Instructions to User Dear Users, Thank you very much for purchasing our product. Please read the manual very carefully before using this device. Failure to follow these instructions can cause measuring abnormality or damage to the oximeter. No part of this manual may be photocopied, reproduced or translated into another language without the prior written consent.
  • Page 3 ENGLISH Instructions for Operation • The finger should be put in properly and correctly. • Do not shake the finger. Keep at ease during measurement. • Do not put wet finger directly into sensor. • Avoid placing the device on the same limb which is wrapped with a cuff for blood pressure measurement or during venous infusion.
  • Page 4: Table Of Contents

    ENGLISH Content Overview ............................ 1.1 Appearance ........................1.2 Name and Model ......................1.3 Intended Use ........................1.4 Structure and Conformation ..................1.5 Features ..........................Battery Installation ....................... Operation ..........................3.1 Directly measurement ....................3.2 Alarm and alarm silence ..................... 3.3 Menu Screen ........................
  • Page 5: Overview

    1.1 Appearance Figure 1 Front/Rear View 1.2 Name and Model Name: Fingertip Oximeter Model: OXY-10 1.3 Intended Use This Fingertip Oximeter is intended for measuring the pulse rate and functional oxygen saturation (SpO ) through patient’s finger. It is applicable for...
  • Page 6: Battery Installation

    ENGLISH • Pulse beep with pitch tone, pulse beep on/off and alarm limits can be set via setup menu. • Shift parameter display between PR and PI • 2AAA alkaline batteries with low power consumption • Low battery voltage indication 2.
  • Page 7 ENGLISH Figure4A Figure4B Screen Description: • “%SpO ”: SpO symbol; “99”: SpO value; • “PR”: Pulse rate icon; “65”: Pulse rate value; • “♥”: Pulse beat symbol; • “�”: Pulse intensity histogram. • “PI%”: Perfusion index icon; “1.4”: Perfusion index value; •...
  • Page 8: Alarm And Alarm Silence

    ENGLISH When the device fails to try establishing wireless connection within 3 minutes, the icon “ ” will become gray and the “Wireless” function is disabled automatically. You have to enable it next time manually. Notes: The pulse beep has the pitch-tone feature (when SpO value is higher than 90%), that means, the beeping tone changes according to the SpO...
  • Page 9: External Spo Probe Connection

    ENGLISH “Pulse beep”: Pulse beep button. When SpO value (90~99) changes, the pitch tone changes accordingly. “Save, exit menu”: long time pressing this item to store and exit from the setup menu then enter the display screen. “Restore default”: Restore default setting. Refer to Figure 5 for each default value.
  • Page 10: Technical Specifications

    ENGLISH 3.5 Data transmission This oximeter has the function of wireless data transmission. The user could effectively transmit the data to computer through the wireless communication module. Refer to the (Oximeter Data Manager) for detailed information. 4. Technical Specifications A. Technique: dual-wavelength LED sensor, LED sensor wavelength: Red light: 663 nanometers, Infrared light: 890 nanometers.
  • Page 11: Accessories

    ENGLISH H. Environment requirement Operating Temperature: 5~40°C Operating Humidity: 30~80% Atmospheric pressure: 70~106kPa I. The performance under low perfusion condition The accuracy of SpO and PR measurement still meet the precision described above when the modulation amplitude is as low as 0.6%. J.
  • Page 12: Battery Maintenance

    ENGLISH • Please change the batteries when the low-voltage indicator lightens. • Please clean the surface of the oximeter before use. Use soft cloth with alcohol to wipe the oximeter first, and then let it dry in air or wipe it dry. •...
  • Page 13: Troubleshooting

    ENGLISH 7. Troubleshooting Trouble Possible Reason Solution Display direction Maybe the oximeter Please shake the doesn’t change is not used for a long oximeter with a certain or changes time, the movable metal force to make the insensitively. ball within the movable metal ball orientation-sensor move freely.
  • Page 14: Appendix

    ENGLISH Appendix A. Key of Symbols Symbol Description Symbol Description Type BF applied part WEEE disposal Caution: read instructions Keep away from sunlight (warnings) carefully Keep in a cool, Follow instructions for use dry place The pulse oxygen Medical Device complies %SpO saturation with Directive 93/42/EEC...
  • Page 15 ENGLISH absorption character in the spectrum range from red to infrared light (600nm~1000nm wavelength), by using these characteristics, SpO can be determined. SpO measured by this oximeter is the functional oxygen saturation - a percentage of the hemoglobin that can transport oxygen. In contrast, hemoximeters report fractional oxygen saturation - a percentage of all measured hemoglobin, including dysfunctional hemoglobin, such as carboxyhemoglobin or metahemoglobin.
  • Page 16 Congratulations for purchasing a GIMA product. This product meets high qualitative standards both as regards the material and the production. The warranty is valid for 12 months from the date of supply of GIMA. During the period of validity of the warranty, GIMA will repair and/or replace free of charge all the defected parts due to production reasons.
  • Page 17 Guidance and manufacture’s declaration-electromagnetic emission The Fingertip Oximeter is intended for use in the electromagnetic environments specified below, the customer or the user of the Fingertip Oximeter should assure that it is used in such an environment. Immunity test IEC 60601 Compliance Electromagnetic test level...
  • Page 18 Guidance and manufacturer’s declaration – electromagnetic immunity The Fingertip Oximeter is intended for use in the electromagnetic environment specified below. The customer or the user of the Fingertip Oximeter should assure that it is used in such an electromagnetic environment. Immunity test IEC 60601 Compliance...
