HP-4 Wet Location Surface Mount Installation Instructions
Overview
NOTES
CAUTION: Read these instructions before proceeding.
All power connections should be installed according to
local/national codes by a Certified Electrician.
This installation requires proper support as each luminaire
is being installed.
DO NOT attempt to join luminaires together on the floor.
Damage may result when lifted.
HELPFUL
Effortless
0-10V
Simple
VIDEOS
Access
Dimming
Plug-Together
Wiring
Step 1
Mounting Options & Locations
Page 2
Step 2
Identification &
Preparation
Page 3
Patent Pending

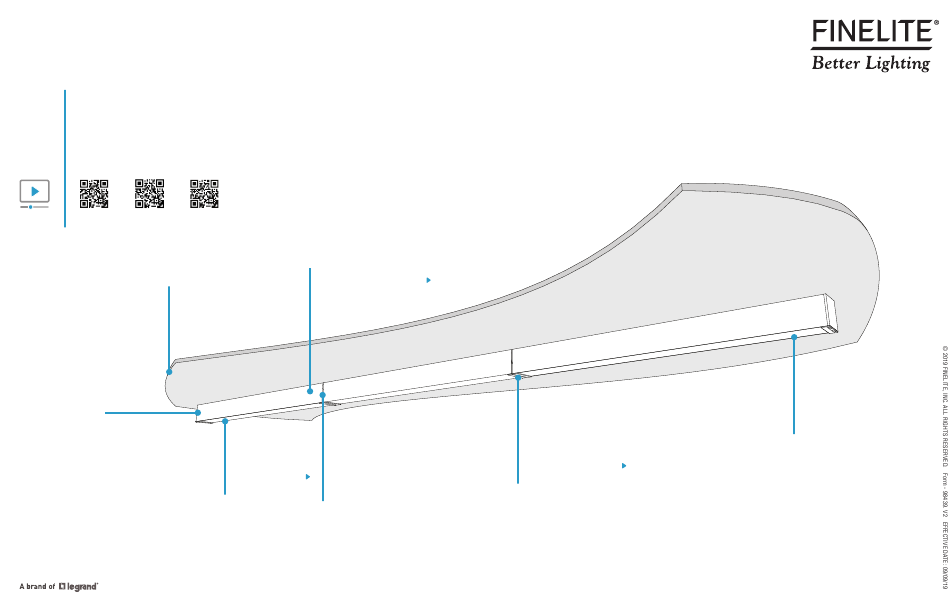

This is a hypothetical build to show the capabilities of this luminaire family and mount type. Your build may vary.
Step 4
Mounting Starter to Structure
Pages 5-6
Step 3
Step 5
Opening Luminaires
Joining Luminaires
Page 4
Page 7
Step 6
Securing Luminaire Joints
Page 8
Finelite, Inc. • 30500 Whipple Road • Union City, CA 94587-1530 • (510) 441-1100 • Fax: (510) 441-1510 • www.finelite.com
Step 7
Closing Luminaires
Page 9
1 of 9

Advertisement

loading
Need help?

Need help?

Do you have a question about the Finelite HP-4 and is the answer not in the manual?

Questions and answers

Summary of Contents for LEGRAND Finelite HP-4

  • Page 1 HP-4 Wet Location Surface Mount Installation Instructions Overview NOTES CAUTION: Read these instructions before proceeding. • • All power connections should be installed according to local/national codes by a Certified Electrician. This installation requires proper support as each luminaire • is being installed.
  • Page 2 HP-4 Wet Location Surface Mount Installation Instructions Step 1 - Mounting Options & Locations Mounting Options Option 1 - Mount to Threaded Rod Install threaded rods to structure. • 1-1/2" max Threaded rod must extend into luminaire at • least 3/4", no more than 1-1/2". Wet Rated Install wet rated electrical junction box and •...
  • Page 3 HP-4 Wet Location Surface Mount Installation Instructions Step 2 - Identification & Preparation A. Identify Luminaires B. Remove Endcap & Joint Diffuser Covers C. Remove Diffusers & Grommets at Required Locations Screw Cover Protective Bag (provided) Diffuser #6-32 x 3/8" Screw Arrange luminaires in order according (provided) to ID# at their install locations.
  • Page 4 HP-4 Wet Location Surface Mount Installation Instructions Step 3 - Opening Luminaires Release Backplates Putty Knife Option Putty Knife Backplate Clip Backplate Backplate Flathead Screwdriver Option Flathead Screwdriver Clip Backplate Clip Backplate Open all backplates for access to mounting points. •...
  • Page 5 HP-4 Wet Location Surface Mount Installation Instructions Step 4 - Mounting Starter to Structure A. Make Electrical Connections WIRING LEGEND Black Line Voltage White Neutral Line Voltage Green Ground Ceiling Grey Dimming 0-10V DC Purple Dimming 0-10V DC Sealing O-Ring (provided) Wire-nut electrical connections.
  • Page 6: Threaded Rod

    HP-4 Wet Location Surface Mount Installation Instructions Step 4 - Mounting Starter to Structure B. Mount Starter to Structure Option 1 (Shown) - Mount to Threaded Rod 1/4"-20 Threaded Rod (by others) Ceiling 1-1/2" 1/4"-20 Sealing Washer (provided) 1/4"-20 Nut (by others) 1/4"-20 Sealing Washer (provided) Starter 1/4"-20 Nut (by others)
  • Page 7 HP-4 Wet Location Surface Mount Installation Instructions Step 5 - Joining Luminaires A. Mount Joiner/Ender to Structure B. Join Luminaires Once luminaires are aligned together, DO NOT attempt to join joiner luminaire is not yet secure. luminaires together on the floor. Ensure it does not slide off as it rests Damage may result when lifted.
  • Page 8 HP-4 Wet Location Surface Mount Installation Instructions Step 6 - Securing Luminaire Joints A. Secure Joint with Yoke Brackets B. Make Electrical Connections IN ALIGNMENT Cross Section Luminaire Joint View Joiner/Ender Plug-Together Wiring Starter Joiner/Ender CORRECTLY INSTALLED tooltip tooltip Luminaire Joint Yoke Bracket (provided) Starter...
  • Page 9 HP-4 Wet Location Surface Mount Installation Instructions tooltip p too p tooltip p oo p Step 7 - Closing Luminaires Joint Diffuser Cover Final Step - Replace Backplates, Diffusers & Diffuser Covers Endcap Diffuser Cover ID: 3 ID: 2 ID: 1 ID: 3 ID: 2 ID: 1...
