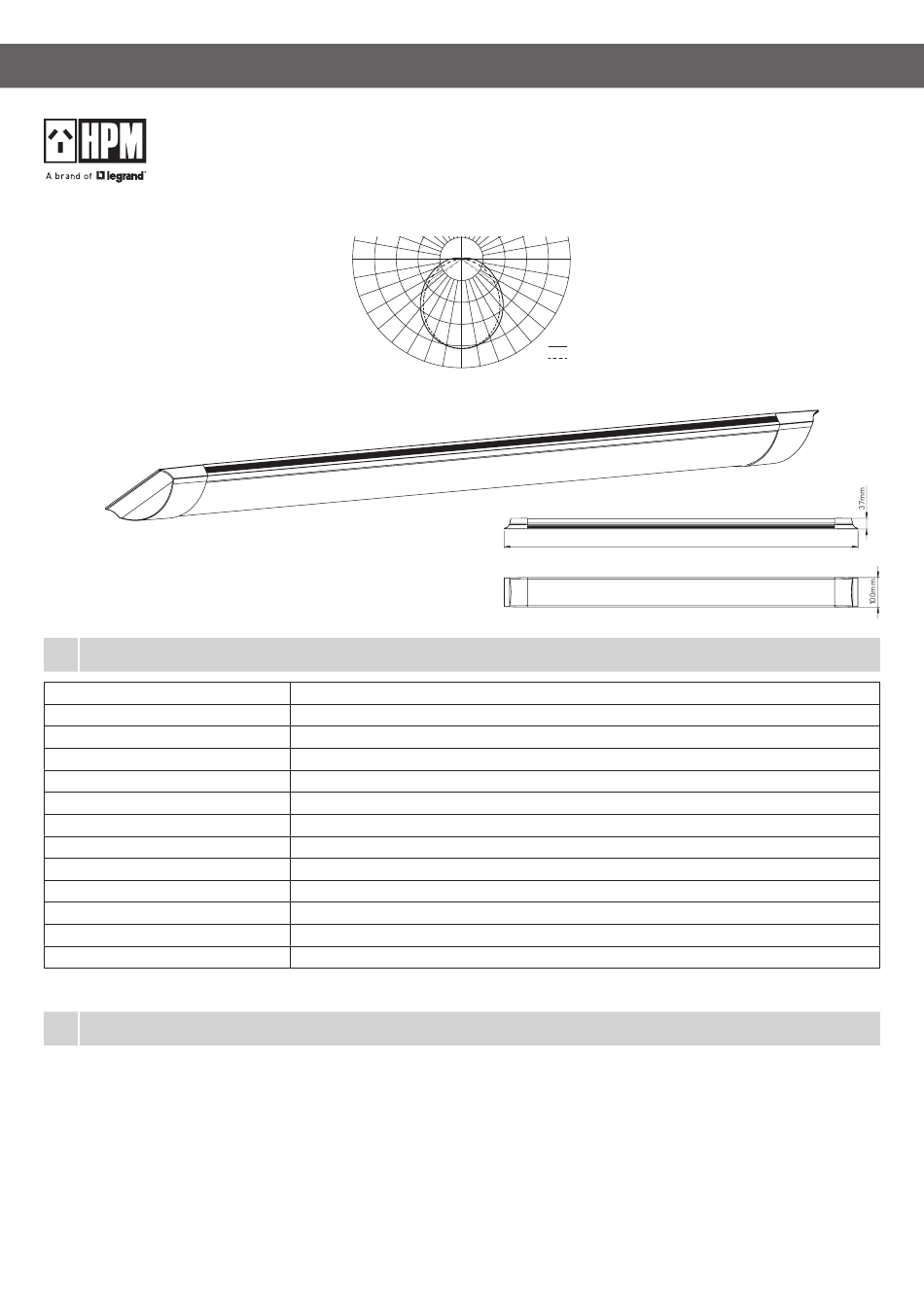

LEGRAND HPM LLF024K1200 Instruction Manual

1

Specifications

Cat No
Lumen package
CCT
Supply Voltage
Input Power
Efficacy
Input Current
Power Factor
Colour Rendering Index (CRI)
Beam Angle
Lifespan
Dimming
Warranty
2 Installation
FOR INDOOR USE ONLY
Isolate 240V mains supply before opening fitting for maintenance or installation.
Follow the steps below:
1. Remove End Cap by pushing it outward (A-1). Only end with direction arrow should be opened.
2. Remove diffuser by sliding it towards the open end (A-2).
3. Insert mains wiring through grommet (A-2).
4. Fix the Luminaire body onto the wall/ceiling with screws and lugs provided (A-2).
5. Connect the Active, Neutral and Earths supply wires to the terminal block as shown (Fig. B).
6. Ensure terminal cover in installed with screw provided (Fig. B).
7. Assemble reflector and end Cap (Fig. C).
8. DO NOT MEGGER TEST.
0
-90
300
600
-60
900
1200
-30
1500
0
AVERAGE BEAM ANGLE (50%):107.6 DEG
Blade LED Batten
Instruction Manual
90
60
UNIT:cd UNIT:cd UNIT:cd UNIT:cd
C0 /180
C90 /270
30
1200mm
LLF024K1200
3600 lm
4000K
230-240V ~ 50Hz
36W
100 lm/W
0.15A
0.97
80+
108˚
35,000hrs @ 25˚C Ambient
Non-Dimmable
3 YRS
Cat No. LLF024K1200
