When using electrical equipment, basic safety precautions should always be followed, including the following:
THIS PRODUCT MUST BE INSTALLED IN ACCORDANCE WITH THE APPLICABLE INSTALLATION CODE BY A PERSON FAMILIAR WITH
THE CONSTRUCTION AND OPERATION OF THE PRODUCT AND THE HAZARDS INVOLVED. DISCONNECT POWER TO ALL CIRCUITS
BEFORE WIRING FIXTURE. INSTALL IN ACCORDANCE WITH ALL NATIONAL, STATE, AND LOCAL CODES. DO NOT CONNECT TO
AN UNGROUNDED SUPPLY. READ ALL FIXTURE MARKINGS AND LABELS TO ENSURE CORRECT INSTALLATION OF FIXTURE.
SUPPLEMENTAL INSTRUCTIONS MAY BE LOCATED ON THE FIXTURE, IN ADDITION TO THIS INSTRUCTION SHEET, REGARDING
This instruction sheet applies for the MRI MedMaster
Auracyl Sconce MRIMAS Series. A separate instruction
sheet is provided in the MRIPSF-480 external power supply
system. Both sheets are intended to provide comprehensive
instructions on fixture installation and wiring. The MRI
MedMaster Sconce lighting system contains sensitive
™
electronics. Take care to avoid damage by improper handling
or static electricity discharge (ESD). Either type of damage
could render the system inoperable or cause latent failure.
1. Remove the screw(s) from the luminaire and unhook
front housing (B) from the baseplate assembly (C).
2. Remove the reflector / wireway to expose the mounting
holes. See illustration on page 2. NOTE: DO NOT remove
the LED boards.
3. Remove LED tray from the baseplate (C), this will expose
the supply wire hole. See illustration on page 2. NOTE:
DO NOT remove the LED boards.
4. Remove 1.50" knockout in the center of the baseplate
(C).
5. Use the baseplate (C) as a template and mark
the pilot holes (E) on the mount surface. Orient
the baseplate (C) with the angle bracket hook (D) at the
top.
6. IP64 version only: To ensure wet location rating, apply
square gasket (supplied) around wire access opening
and four round gaskets (supplied) on the wall side of the
baseplate.
7. Disconnect facility power to the electric power
supply leads.
8. Mount the baseplate.
www.kenall.com | P: 800-4-Kenall | F: 262-891-9701 | 10200 55th Street Kenosha, Wisconsin 53144, USA
This product complies with the Buy American Act: manufactured in the United States with more than 50% of the component cost of US origin. It may be covered by patents
found at www.kenall.com/patents. Content of speci cation sheets is subject to change; please consult www.kenall.com for current product details. ©2019 Kenall Mfg. Co.
SCONCE
™

IMPORTANT SAFEGUARDS

ORIENTATION, OR MOUNTING RESTRICTIONS.
SAVE THESE INSTRUCTIONS
™

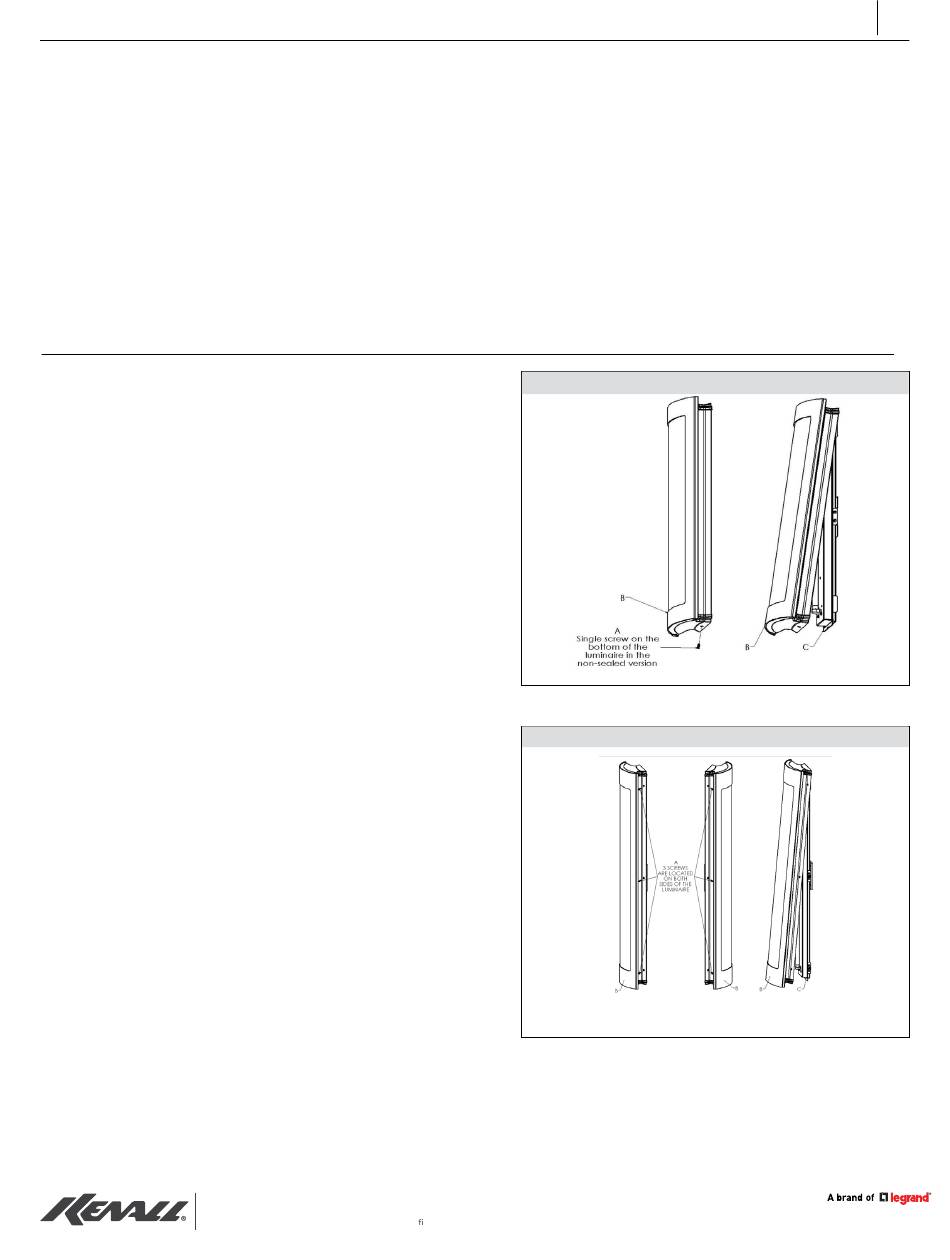

Installation Instructions
