Emergency lighting luminaires with LEDs
X-light 180
230 V self-test
1. DESCRIPTION

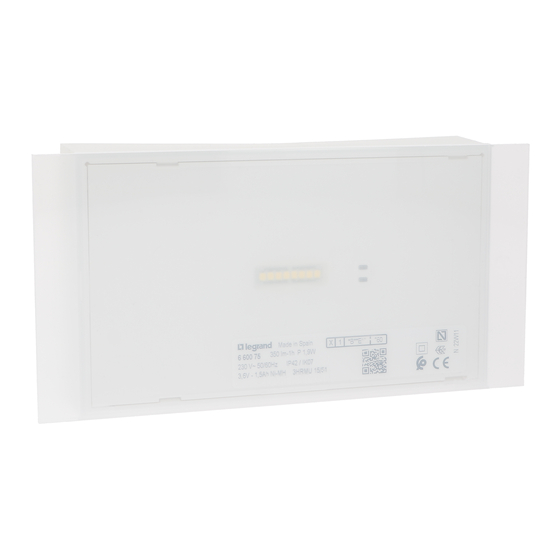

IP 42 - IK 07 emergency lighting luminaires with LEDs
Class II: 0
Cat. No.
Flux/
Mode M pwr
standby
power
6 601 40
160 lm/1 hr M/NM
6 601 41 100 lm/3 hrs M/NM
6 601 52
100 lm/1 hr M/NM
6 601 54
200 lm/1 hr
NM
6 601 55
350 lm/1 hr M/NM
6 601 57 200 lm/2 hrs
NM
Technical data sheet: S000118531EN_2
NM pwr
Batteries No. of
cons.
cons.
LEDs
(W)
(W)
1.9
0.4
Ni-MH
6
1.9
0.4
Ni-MH
4
1.6
0.35
Ni-MH
4
-
1.9
Ni-MH
4
1.9
0.4
Ni-MH
8
-
0.35
Ni-MH
6
Updated: 15/03/2023
Cat. No(s): 6 601 40/41/52/54/55/57
CONTENTS
1. Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
2. Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
3. Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
4. Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
5. Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
6. Compliance and approvals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
7. Equipment and accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
1. DESCRIPTION (CONTINUED)
• Dimensions
202
172
• Technical characteristics
Power supply: 230 V± - 50/60 Hz
Equipped with screw terminals 2.5 mm
Class II: 0
Operating temperature: 0°C to +40°C
Connection to remote control 0 039 00/01 for setting to rest mode during
intentional mains power breaks.
Remote control input terminals protected against connection errors.
Conforming to standards: UNE EN 60598-2-22: 2014 + AMD: 2020
Awarded ENEC EN 60 598 2-22 quality mark and AENOR quality mark
Product for surface mounting on walls or ceilings and flush mounting in
ceilings with accessory 6 601 95/95BK.
Page
40
max. (draw-out connector).
2
Created: 16/05/2022
1/6
Advertisement
Table of Contents
Related Manuals for LEGRAND X-light 180
Summary of Contents for LEGRAND X-light 180
-
Page 1: Table Of Contents
Emergency lighting luminaires with LEDs Cat. No(s): 6 601 40/41/52/54/55/57 X-light 180 CONTENTS Page 1. Description ...........1 2. -
Page 2: Description
CLICK 2. INSTALLATION TELEC - Connection terminals: direction of connection with Legrand remote control Cat. No. 0 039 00/01 must be complied with. • Opening the unit Terminal capacity: 2.5 mm... -
Page 3: Operation
Emergency lighting luminaires with LEDs Cat. No(s): 6 601 40/41/52/54/55/57 X-light 180 3. OPERATION (CONTINUED) 2. INSTALLATION (CONTINUED) • Wiring up M-NM products (continued) 3.3 Setting to rest state via the remote control Cat. No. 0 039 00 After the lighting is switched off intentionally:... -
Page 4: Maintenance
Emergency lighting luminaires with LEDs Cat. No(s): 6 601 40/41/52/54/55/57 X-light 180 4. CONNECTION (CONTINUED) 5. MAINTENANCE (CONTINUED) 4.2 Connecting the remote control Cat. No. 0 039 00 Lighting main Remote circuit breaker control circuit Reinforced emergency light breaker ... -
Page 5: Compliance And Approvals
NB: The LEDs cannot be replaced - EN 61000-4-6 (radiated fields) - EN 61000-4-8 (magnetic fields) Legrand distribution partners take back used luminaires and batteries. - EN 61000-4-11 (voltage dips and short interruptions) After changing the batteries, write down the date on which the luminaire was returned to service in the designated location. - Page 6 Emergency lighting luminaires with LEDs Cat. No(s): 6 601 40/41/52/54/55/57 X-light 180 7. EQUIPMENT AND ACCESSORIES (CONTINUED) 7. EQUIPMENT AND ACCESSORIES (CONTINUED) IP 66/IK1 0 weatherproof box, 6 601 91 (continued) Legend stickers (not supplied): Ž - Conforming to standard EN ISO 7010:...
